A: What is the practical manifestation of Dynamic Range of Digital Cameras in the real-world? by alexs1320

View this thread on: hive.blog |  peakd.com |  ecency.com
stemq · @alexs1320 · (edited)
$46.78
A: What is the practical manifestation of Dynamic Range of Digital Cameras in the real-world?
In order to properly answer to this question, we need to decompose the main question to 3 separate, more precise questions:
* what is the dynamic range that you can experience with your eyes?
* what is the dynamic range of the camera you are using, and under what conditions?
* what is the dynamic range of the device that is used to reproduce the photography?

![thumbnail.jpg](https://cdn.steemitimages.com/DQmTSZKnyjaSAkRDMtB1zvfUjjfF6QizW3X59AuW5iBQBvj/thumbnail.jpg)

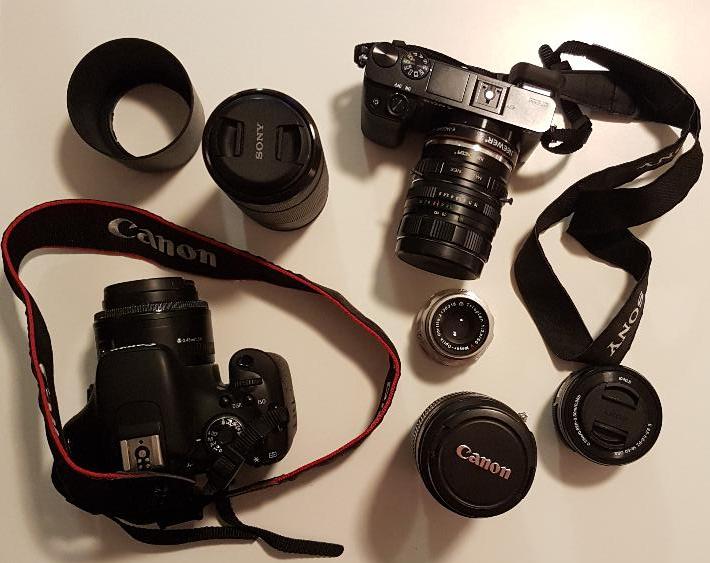

<sub> Now I understand women... *"I have nothing to wear!"*. I have nothing to take a picture :( Look at this, two bodies, both of them APS-C, no FF :( And lenses? What is that, 50mm, f/1.8, it's not 1.4 :( Helios for swirly bokeh, what if I want a normal bokeh?! Trioplan for bubble bokeh, what if I want creamy bokeh?! :( 2 kit lenses, what are they for? Tele lens, but not a tele-prime lens! Wait, I forgot I have one, but it's not here **now**. There is also a strange Leica lens, but it's a projector lens. And the worst thing... I have wide angle Samyang but it's not wide zoom. :( And that Pentacon is also 1.8 :'( I'm desperate! </sub>

![clothing-1045960_1280.jpg](https://cdn.steemitimages.com/DQmX17cxGSunLPicQAESTrdjDThRaKxuYC5ZsmmrijfHTKT/clothing-1045960_1280.jpg)

<sub> Absolutely nothing to wear :'( from [Pixabay](https://pixabay.com/en/clothing-fashion-female-clothes-1045960/) </sub>

#### The definition of Dynamic Range
-----
By the definition, **dynamic range** is the ratio between the maximum and the minimum intensity of light (luminance, cd/m<sup>2</sup>) that can be measured.

Now the things are getting more complicated because there are 3 ways how this value can be expressed:
* Contrast ratio, for example, 1:1000 for displays
* Density, which is the log10 for contrast, thus 1:1000 = 3
* f-stops, the most common in photography, and it denotes 2<sup>n</sup>. In other words: contrast ratio 1:1000 = density value of 3 = 10 f-stops = basically the same as EV that is used by dxomark

### Human eyes
-----------
Keep in mind that what you "feel that you see" is not what you see in "hardware meaning". While you are looking at the world, your eyes and your brain are making constant adjustments. As the consequence of the adjustments of the pupil and overall feeling, it's estimated that the dynamic range we can "feel" about **24 f-stops**.

As you will see, 24 f-stops is an astonishing number!

### Dynamic range of display devices and printed material

Most of the times, you will see the adverts for various monitors that state: Contrast 1000:1

In some cases, manufacturers will seriously try to make "the blackest black" and the eye poking brightness to boost the numbers, but keeping in mind that there will be some sort of ambient light, those values will drop to about 500:1 or, at best, 1000:1.

Converted to f-stops or EVs, it will be about **10**.
This is the reason why dxomark uses the green line for that value.

In a bit poorer conditions, that value will drop to about 250:1, or 8 EVs.

For printed media, it's even worse, because the dynamic range is somewhere between 10:1 at worse, to about 100:1. Converted to EVs, it's somewhere **between 5 and 7**.

In the case of dxomark, the orange line is set to 8 EV and the red line is set to 6 EV.

### In Practice...

So, let's re-evaluate the case again:
* your eyes can see 24 f-stops
* your camera can capture somewhere between 10 and 14 f-stops
* your display can present only about 10 f-stops
* and the photo from your album has 8 f-stops at the very best

**As you can see, it's not the camera's fault, your display is bad.**

Even if your camera can capture 14 f-stops for example, it means that you will get more freedom to make "dramatic skies" (by cutting the highlights), to "pull out the shadows" (by adjusting shadow/highlights) or you can create "HDR ~~vomit~~" by lumping all 14 f-stops from camera to 10 f-stops that can be reproduced.

In conclusion: it's **good** to have high dynamic range capabilities but **it's not crutial**.

## DxOMark

Due to XIX century laws, I can't put the figure, but I can give you [the link](https://www.dxomark.com/Cameras/Compare/Side-by-side/Nikon-D850-versus-Sony-A7-II-versus-Canon-EOS-5D-Mark-II___1177_996_483) with that very same figure.

I took 3 flagship cameras:
* [Nikon D850](https://www.nikon.fr/fr_FR/product/digital-cameras/slr/professional/d850), the best from Nikon world
* [Sony a7II](https://www.sony.fr/electronics/appareils-photo-a-objectifs-interchangeables/ilce-7m2-body-kit), because a7III was not tested yet, but they are similar
* [Canon 5d Mark IV](https://www.canon.fr/cameras/eos-5d-mark-iv/) the worst camera in the world that should be shot by a cannon (if you hate Canon), or the 3 generations better solution than the absolutely perfect 5d Mark I. I'll take 5d Mark II to show you the consequences

As you can see, at basic ISO:
* Nikon is superb, with 14.5 EV
* Sony managed to score 13.5 EV
* Canon is absolutely the worst, only 12 EV

But keep in mind... After 10 EV... It's all up to display. **You will see no differences** and tone curve will be much, much more important for what you see.

When we set our cameras to ISO 1600 (manufacturers are not the most honest, it's actually about ISO 1100 :D ), the ranking is much different:
* Nikon, 11.6 EV
* Sony, 11 EV
* Canon, 10.75 EV

Now the differences are much smaller and **all of them are still** perfectly good.

**Breaking point No1, 10 EV**:
* Nikon, at ISO 6400
* Sony and Canon, at ISO 3200

As you can see, it's only "1 stop" difference between the old Canon, 1000 Eur worth Sony and 3 times more expensive Nikon. Only "one click" of aperture, or only "one click" of exposure.

**Breaking point No2, 8 EV**
* Nikon at ISO 25600
* Sony and Canon at ISO 12800

**Breaking point No3, 6 EV, Never actually occurs?!**
# In Conclusion:
-----------
Take your camera and Have Fun!
Seriously, it's that simple. Love your gear and love your hobby.
Don't worry that your gear is not the newest one

Even the grandpa, 5d Mark I has 10 EV dynamic range at ISO 1600 (measured 1369).
The Best imaginable, D850 has 10 EV at ISO 6400 (measured 4597).

It's only 2 full stops you can spend on aperture or shutter speed?!

As people from Montenegro would say: "in the hands of the hero, every rifle will be deadly"

What do you think about this topic, and what is your favorite camera?
