Antminer Z9 Mini-OpenBenchWoodCube with 4 Hashboards
My first PC at the time was a benchtable. Since I run the z9 mini at home in my living room, I had to think of course because of the volume. In addition, I realized that there is a fourth slot for another hashboard.
So I ordered one more and started building the new case.
![Frame7.jpg](https://cdn.steemitimages.com/DQmNcMCMyzZvTWCCQKJLo6p97cR8Lthtcg1s4PmGZhYrUss/Frame7.jpg)
I wanted to work in a very natural way and therefore chose spruce wood.
Cooling is crucial for operating an open benchtable. I love Noctua and I take Noctua. 5 fans are planned in my concept.
https://noctua.at/de/nf-a20-pwm

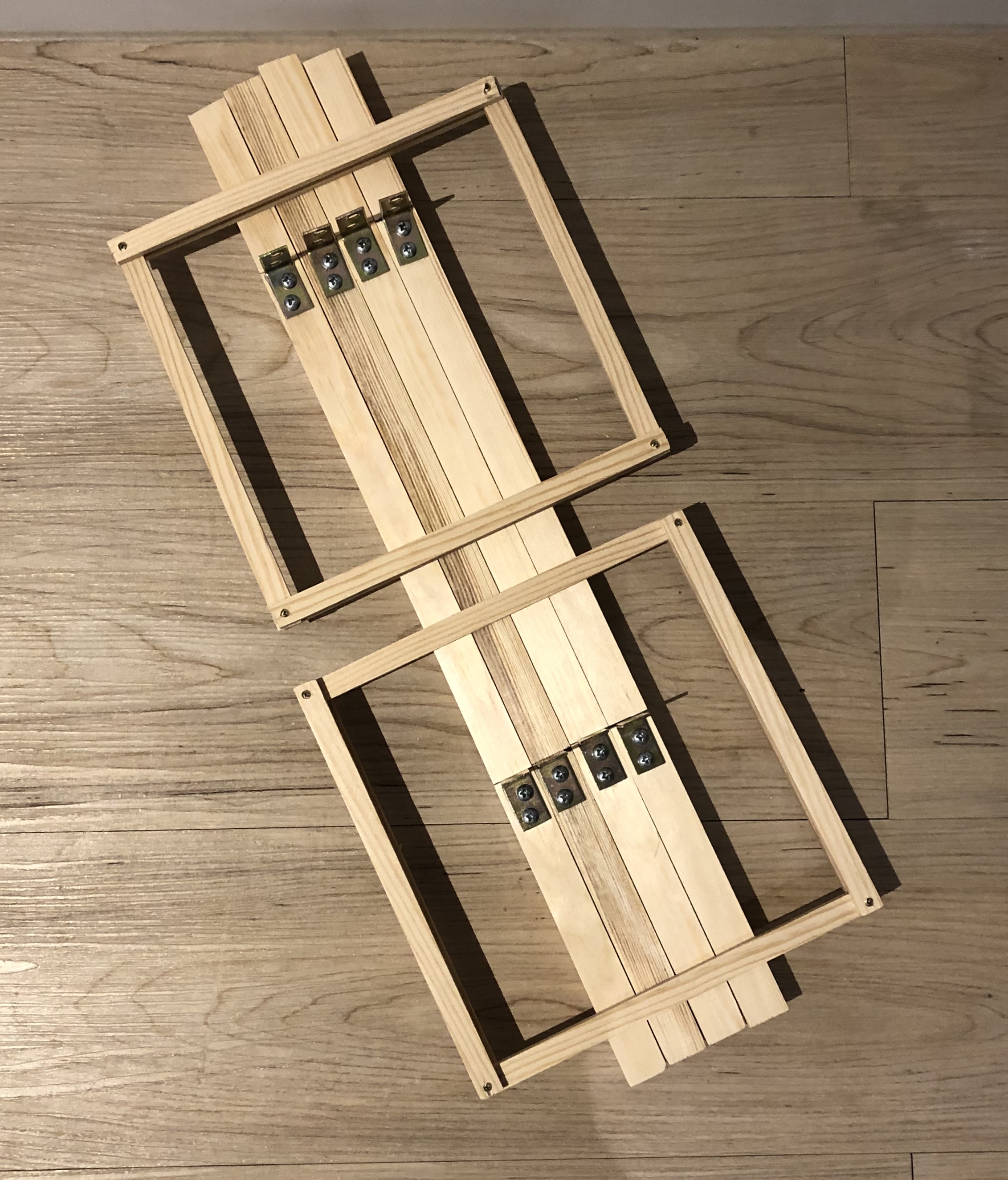

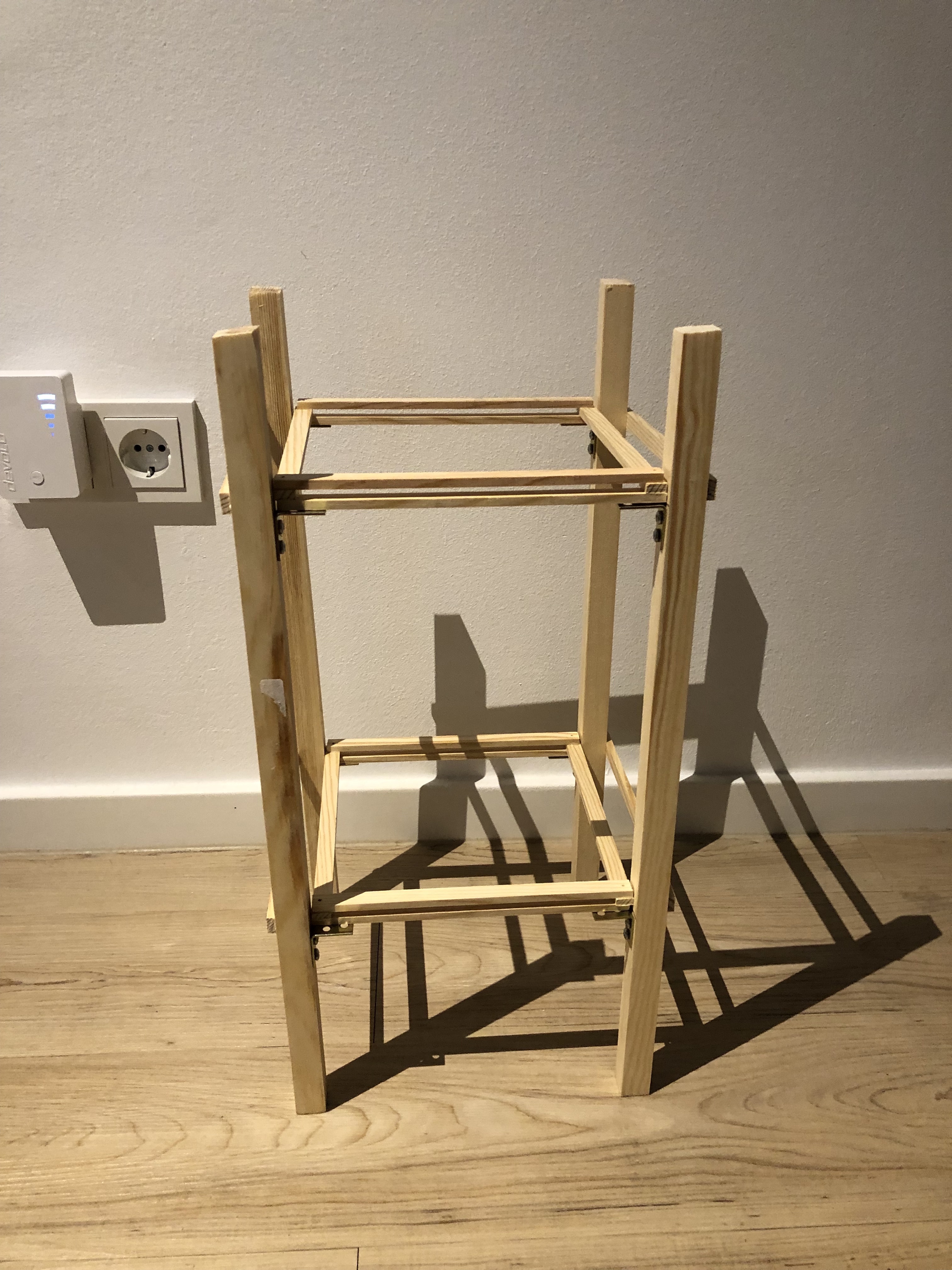

I started with the construction of the fan frames for floor and ceiling as well as the basic framework.
![Frame1.JPG](https://cdn.steemitimages.com/DQmY4Eju7pV23yevqKy62yfWUChzEUJo8n6DRR3sLnqaojV/Frame1.JPG)
![Frame2.jpg](https://cdn.steemitimages.com/DQmWVubmJRVpZWLfo3uy1ajPYkm3gX6wthzK8qzb9onJgEK/Frame2.jpg)

A frame had to be equipped with gates and styrofoam. There are for the hashboards later.
![Frame5.jpg](https://cdn.steemitimages.com/DQmRKjaeP8PRCjKhmnj8TbTvnxNVUFNtNJBdd42UA5cXjZH/Frame5.jpg)

I also made a frame for the control board.
![Frame6.jpg](https://cdn.steemitimages.com/DQmfAcpYHMgKwm5PA32RQJLY3CZ6xzSfdSk3Xr3ysXenugy/Frame6.jpg)

Assemble everything.
The 4 hashboards and the 3 noctua.
![Frame7.jpg](https://cdn.steemitimages.com/DQmNcMCMyzZvTWCCQKJLo6p97cR8Lthtcg1s4PmGZhYrUss/Frame7.jpg)

Of course, new cables had to be ordered.
![Frame8.jpg](https://cdn.steemitimages.com/DQmaZ93AEFfnqQXivdXwKz28MRLbxKjHYXLgNAxqRhUWC2h/Frame8.jpg)
![Frame9.jpg](https://cdn.steemitimages.com/DQmZBvJrRd5DziFSzAXLbvbemLgAPjyAtjtyLDZkNr3vhop/Frame9.jpg)

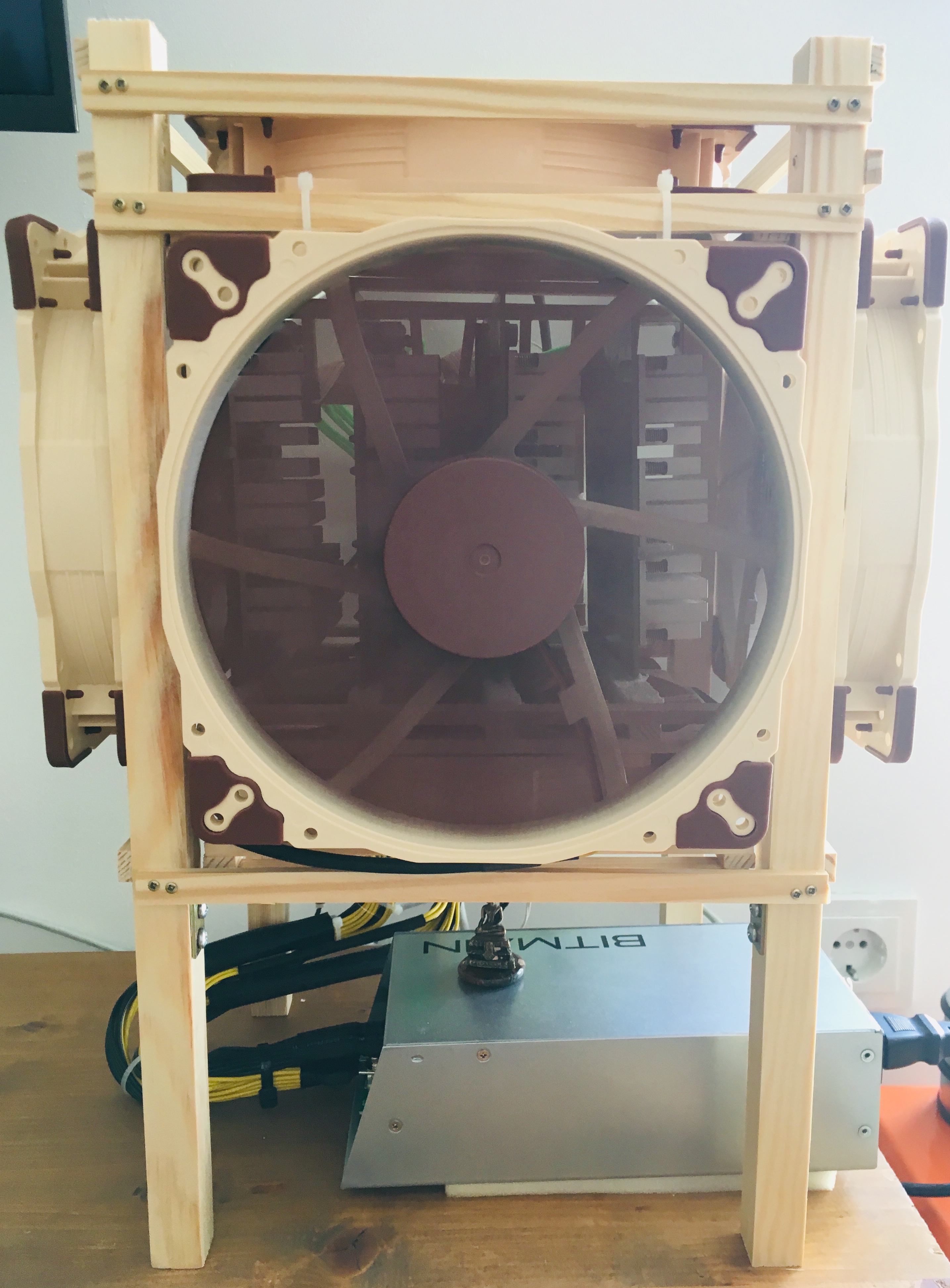

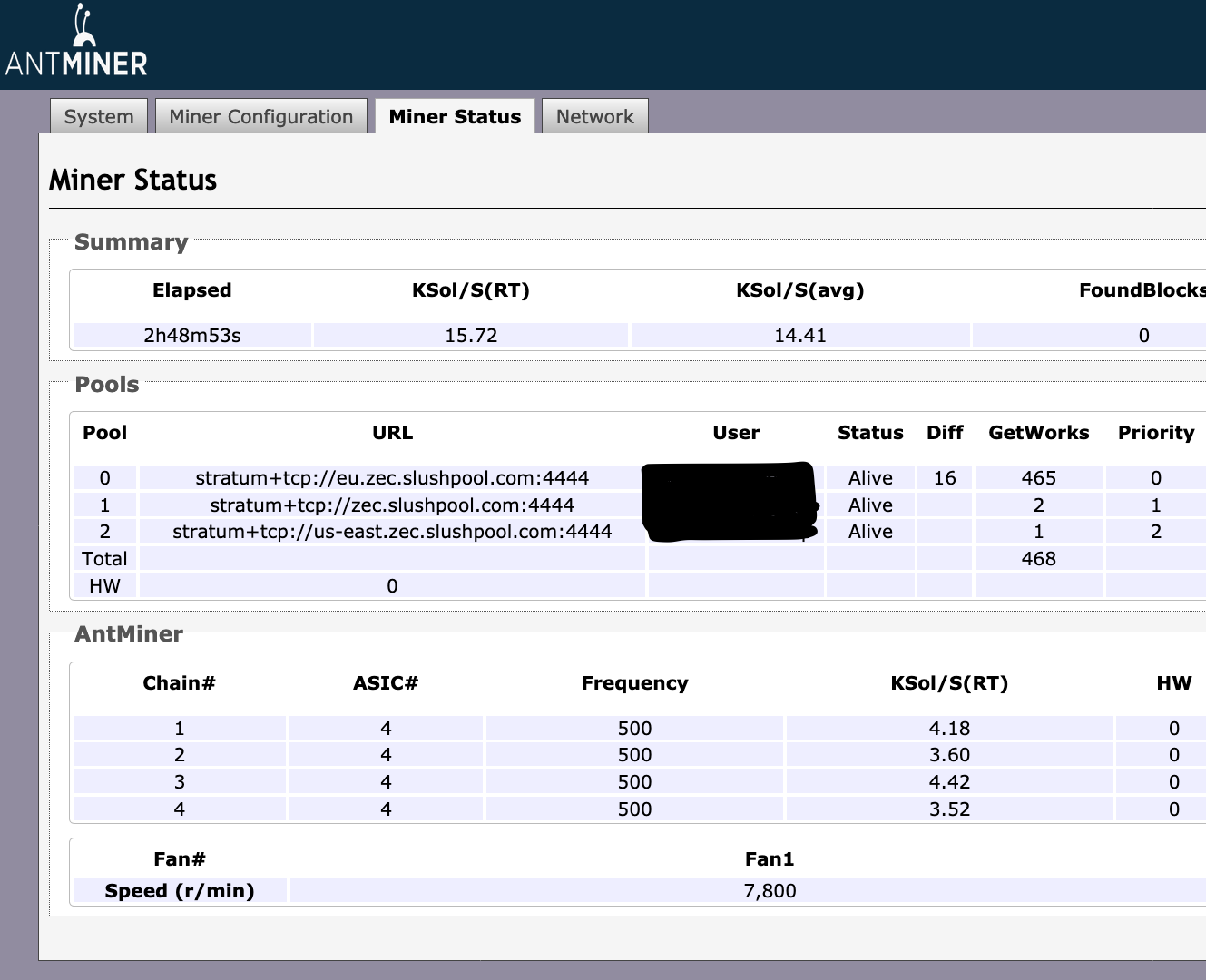

My setup is running. Currently at standard 500 mhz.
![Frame10.JPG](https://cdn.steemitimages.com/DQmUczuAuM9XK8AcTdvbzySRKVxZMme3V8vDYpKvf6iuWQs/Frame10.JPG) ![Frame12.png](https://cdn.steemitimages.com/DQmYaPLdyLKdtRqhWSoHs3M9FohLSY7pafKtVXUeMcZj3CZ/Frame12.png)

Next step is successful overclocking. But I have to adjust the frimware or have it adjusted.

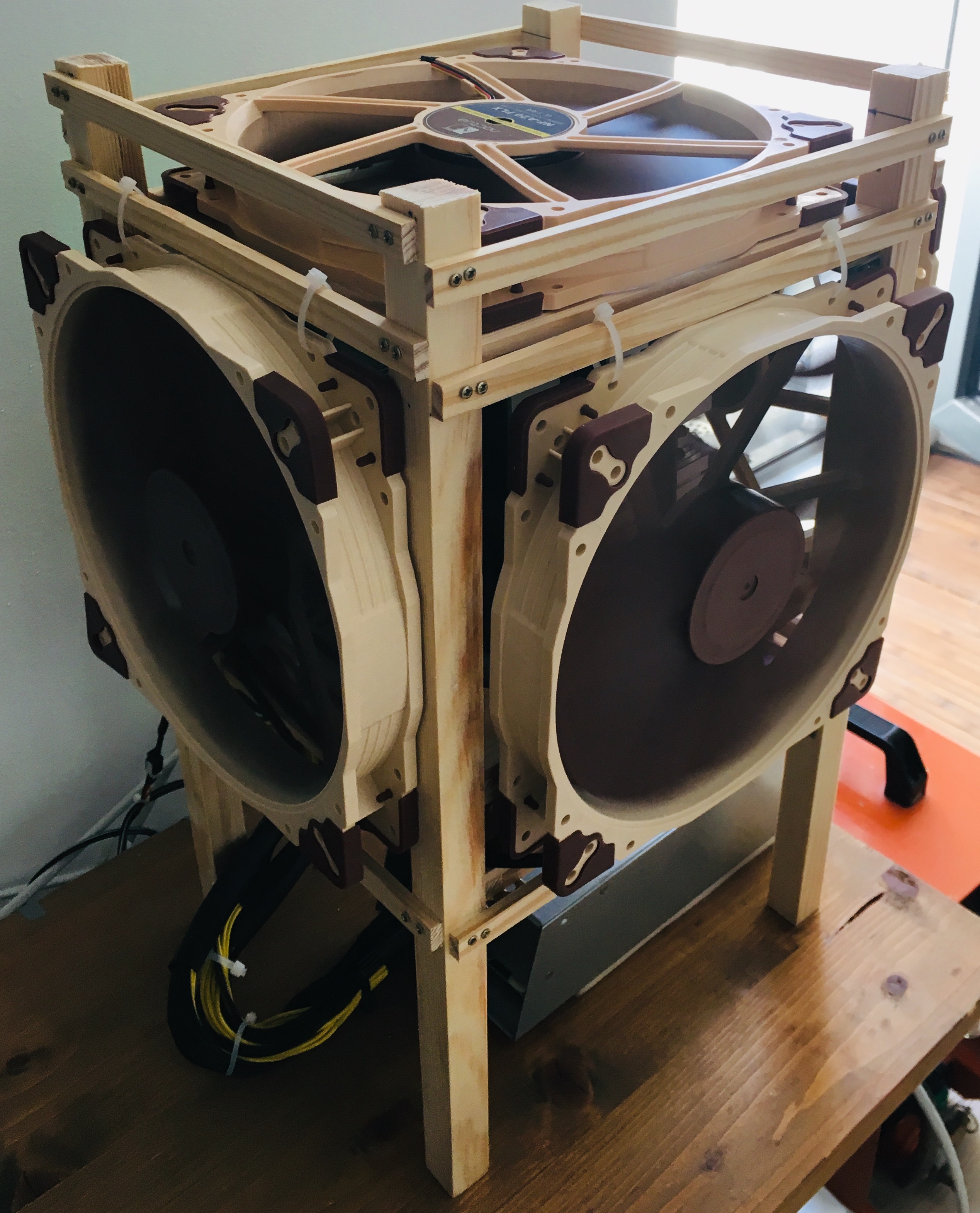

![Frame11.JPG](https://cdn.steemitimages.com/DQmRtvmwJvqYkfsptiT9mumVtuZZLBxubQ9PAuL5uVKmCWM/Frame11.JPG)

Setup was sooo awesome and SILENT !!! ;-)

I'll call you again and hope you like my setup?
Write me your opinion.

Greets to All and special thanks @cursedmining

Happy Mining !!!
👍  , ,
