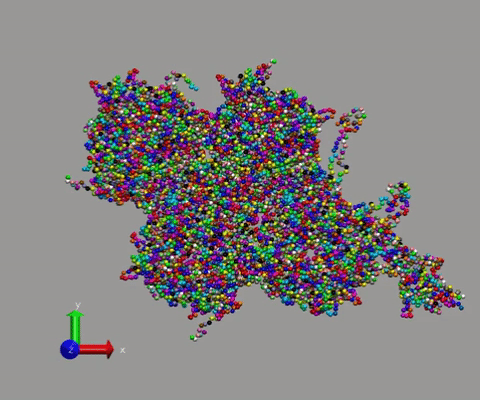

<center>![Animated GIF-source.gif](https://steemitimages.com/DQmeshBLwhU9XeL1GeyJo8tyN2fTFB4Jo6htDVXnXnEmLsF/Animated%20GIF-source.gif)</center><sub>3.6-Angstrom cryoEM structure of human adenovirus type 5 protein from [here](https://www.rcsb.org/structure/removed/3iyn). Only showing alpha carbons. Each atom is colored on the basis of residue type. This is visualized in VMD software. Non-polar(hydrophobic) residues are white, basic residues are blue, acidic residues are red and polar residues in green.</sub>



Hi friends...  I am starting a new series of articles which will focus on biomolecular visualization and analysis. Today let us look into PDB format and get started in visualizing biomolecules using a computer! For this purpose, I will use VMD software.

## Requirements
- I suggest beginners go through this nice and friendly article by @suesa: [The Building Blocks of Life - Basics](https://steemit.com/science/@suesa/the-building-blocks-of-life-basics).
- ***Installation of VMD software on your computer:*** VMD is a Molecular Dynamics visualization software developed by **[Theoretical and Computational Biophysics](http://www.ks.uiuc.edu/)** group from the University of Illinois at Urbana-Champaign. You can download it from [here](http://www.ks.uiuc.edu/Development/Download/download.cgi?PackageName=VMD). You will need to register there to download this free software. If you are having issues with the download or having trouble with installation, please ask for help in the comments (or you can ask me in discord. My discord handle: @dexterdev#4231). :smile:
- Download a PDB file from [RCSB website](https://www.rcsb.org/).

## Choosing a biomolecule
Let us take an available protein structure from RCSB website. I am selecting an [HIV capsid](http://pdb101.rcsb.org/motm/163) protein for now. If you search [1E6J](https://www.rcsb.org/structure/1e6j), you can find the structure in RCSB website.

<center>![](https://i.imgur.com/aF1XEv4.png)</center><sub>A screenshot from RCSB website corresponding to [1E6J](https://www.rcsb.org/structure/1e6j) protein data bank entry. You can download the PDB file from the download button(in blue) by choosing PDB option from it.</sub>

## Understanding PDB format
As choosing 1E6J.pdb as example, let us understand the content and format of a PDB(protein data bank) file. If you open 1E6J.pdb, you will find a file with a structure as below:

```
HEADER    VIRAL PROTEIN                           18-AUG-00   1E6J
TITLE     CRYSTAL STRUCTURE OF HIV-1 CAPSID PROTEIN (P24) IN COMPLEX
TITLE    2 WITH FAB13B5
COMPND    MOL_ID: 1;
COMPND   2 MOLECULE: IMMUNOGLOBULIN;
COMPND   3 CHAIN: L;
COMPND   4 FRAGMENT: LIGHT CHAIN 1-210;
COMPND   5 OTHER_DETAILS: OBTAINED BY PAPAIN CLEAVAGE (FAB);
COMPND   6 MOL_ID: 2;
COMPND   7 MOLECULE: IMMUNOGLOBULIN;
COMPND   8 CHAIN: H;
COMPND   9 FRAGMENT: HEAVY CHAIN 1-219;
COMPND  10 OTHER_DETAILS: OBTAINED BY PAPAIN CLEAVAGE (FAB);
COMPND  11 MOL_ID: 3;
COMPND  12 MOLECULE: CAPSID PROTEIN P24;
COMPND  13 CHAIN: P;
COMPND  14 FRAGMENT: GAG POLYPROTEIN RESIDUES 143-352;
COMPND  15 SYNONYM: CA;
COMPND  16 ENGINEERED: YES;
COMPND  17 OTHER_DETAILS: HIS6 TAG AT N-TERM, PRO1 AND ILE2 DELETED,
COMPND  18  C-TERMINUS MODIFIED
.
.
.
.
.

KEYWDS    HIV CAPSID PROTEIN (P24), P24, FAB, HIV-1, VIRUS ASSEMBLY, CAPSID,
KEYWDS   2 CA, ANTIGEN, ANTIBODY, PROTEIN-PROTEIN INTERACTIONS, VIRAL PROTEIN
EXPDTA    X-RAY DIFFRACTION
AUTHOR    C.BERTHET-COLOMINAS,S.MONACO,A.NOVELLI,G.SIBAI,F.MALLET, S.CUSACK

.
.
.
.
.

REMARK 470 MISSING ATOM
REMARK 470 THE FOLLOWING RESIDUES HAVE MISSING ATOMS (M=MODEL NUMBER;
REMARK 470 RES=RESIDUE NAME; C=CHAIN IDENTIFIER; SSEQ=SEQUENCE NUMBER;
REMARK 470 I=INSERTION CODE):
REMARK 470   M RES CSSEQI  ATOMS
REMARK 470     PRO H 219    O
REMARK 470     ASN L 210    O
REMARK 470     GLY P 220    O
REMARK 475
REMARK 475 ZERO OCCUPANCY RESIDUES

.
.
.
.
.

SEQRES   1 H  219  GLU VAL GLN LEU GLN GLN SER GLY ALA GLU LEU ALA ARG
SEQRES   2 H  219  PRO GLY ALA SER VAL LYS MET SER CYS LYS ALA SER GLY
SEQRES   3 H  219  TYR THR PHE THR SER TYR THR MET HIS TRP VAL LYS GLN
SEQRES   4 H  219  ARG PRO GLY GLN GLY LEU GLU TRP ILE GLY TYR ILE ASN
SEQRES   5 H  219  PRO SER SER GLY TYR SER ASN TYR ASN GLN LYS PHE LYS

.
.
.
.
.

ATOM   3430  N   LYS P  25     -18.910  -9.433  -1.456  1.00 54.99           N
ATOM   3431  CA  LYS P  25     -17.777 -10.242  -1.877  1.00 58.12           C
ATOM   3432  C   LYS P  25     -16.454  -9.507  -1.700  1.00 57.40           C
ATOM   3433  O   LYS P  25     -15.452 -10.114  -1.325  1.00 58.93           O
ATOM   3434  CB  LYS P  25     -17.962 -10.695  -3.327  1.00 63.00           C
ATOM   3435  CG  LYS P  25     -17.782 -12.196  -3.527  1.00 74.97           C
ATOM   3436  CD  LYS P  25     -18.598 -13.022  -2.529  1.00 81.03           C
ATOM   3437  CE  LYS P  25     -20.085 -12.688  -2.570  1.00 85.48           C
ATOM   3438  NZ  LYS P  25     -20.852 -13.453  -1.550  1.00 81.37           N
ATOM   3439  N   VAL P  26     -16.460  -8.200  -1.947  1.00 58.95           N
ATOM   3440  CA  VAL P  26     -15.259  -7.388  -1.795  1.00 53.87           C
ATOM   3441  C   VAL P  26     -14.793  -7.456  -0.347  1.00 54.47           C
ATOM   3442  O   VAL P  26     -13.702  -7.948  -0.072  1.00 61.02           O
ATOM   3443  CB  VAL P  26     -15.504  -5.912  -2.190  1.00 48.70           C
ATOM   3444  CG1 VAL P  26     -14.259  -5.078  -1.922  1.00 46.68           C
ATOM   3445  CG2 VAL P  26     -15.873  -5.821  -3.657  1.00 45.76           C
ATOM   3446  N   VAL P  27     -15.637  -7.009   0.578  1.00 57.38           N
ATOM   3447  CA  VAL P  27     -15.305  -7.026   2.005  1.00 65.79           C
ATOM   3448  C   VAL P  27     -14.978  -8.450   2.460  1.00 70.41           C
ATOM   3449  O   VAL P  27     -14.173  -8.661   3.371  1.00 70.09           O

.
.
.
.
.

HETATM.....
```

In the above file, you can find few records like:
- `HEADER`: Basically is the first line in PDB file. It's like a heading of a document. In this example, it says `VIRAL PROTEIN`, a date `18-AUG-00`(most probably the date when this structure was published) and the PDB id `1E6J`.
- `TITLE`: A slightly more detailed description.
- `COMPND`: Compound details. The name of chains(In this example 3 chains L, H, and P are 3 proteins) and description of molecules.
- `EXPDTA`: How the molecule structure was decoded. In this example, it was X-RAY diffraction.
- `AUTHOR`: The researchers who published the work.
- `REMARK`: Details like missing atoms etc
- `SEQRES`: The amino-acid chain sequence in short. So protein is a polymer made of different amino acids. This field will have amino-acid sequence using their 3 letter short forms.
- `ATOM`: This field contains the real data. Till now it was like comments in a computer code. I will illustrate the information below:
<center>![](https://i.imgur.com/uzcy4WQ.png)</center><sub>By the way occupancy is the number which describes if the atom can have another coordinate. Say if occupancy=1.0, that means the XYZ coordinate of the atom is that particular coordinate only. Sometimes there can be multiple coordinates for same atoms. Like 2 entries with 60 and 40 percentages. So if you want to choose one coordinate you can select 60% case. Higher temperature factors indicate high fluctuations in those particular atoms.</sub>

- `HETATM`: Hetero-atom entry the details like `ATOM`, but for atoms which are not part of the protein itself. For 1E6J.pdb, there are no HETATMs.


## Let us start then
So by now, we have an idea what is inside the PDB file. So, let us look this using a visualization software. We can use VMD for this purpose. My machine is a Linux one. So I will just type `vmd 1E6J.pdb` in my command prompt.
<center>![](https://i.imgur.com/MsLfmSu.png)</center>

OK. So we visualized a molecule! :tada:
Now let us see if I can visualize it in a different style. From the `VMD Main` window, let us select Graphics-->Representation option.
<center>![](https://i.imgur.com/P4REtCU.png)</center>
In the `Drawing method`, select `NewCartoon` option. And the result is as below:

<center>![](https://i.imgur.com/sDx7fVg.png)</center>
You can change from `Perspective` to `Orthographic` in `Display` option from `VMD Main window`. Scrolling on the molecule enables you to zoom in and zoom out. I am not bombarding with too much information. So I will stop here.

## Summary
- We looked into the PDB file format
- Visualized 1E6J.pdb using VMD. Of course, there are lot more things which we can do.

## Coming up next

- VMD Shortcuts
- About the powerful Tcl scripting environment embedded in VMD
- Visualize each chain in the PDB file individually

## References

- Humphrey, W., Dalke, A. and Schulten, K., "VMD - Visual Molecular Dynamics", J. Molec. Graphics, 1996, vol. 14, pp. 33-38.
- [VMD userguide](http://www.ks.uiuc.edu/Research/vmd/vmd-1.9.1/ug.pdf)
- [VMD tutorial](http://www.ks.uiuc.edu/Training/TutorialsOverview/vmd/vmd-tutorial.pdf)
- Citing PDB related papers: See [here](https://www.rcsb.org/pages/policies#References).
- Monaco-Malbet, Stéphanie, et al. "Mutual conformational adaptations in antigen and antibody upon complex formation between an Fab and HIV-1 capsid protein p24." Structure 8.10 (2000): 1069-1077. ***(1E6J structure related paper)***


---
