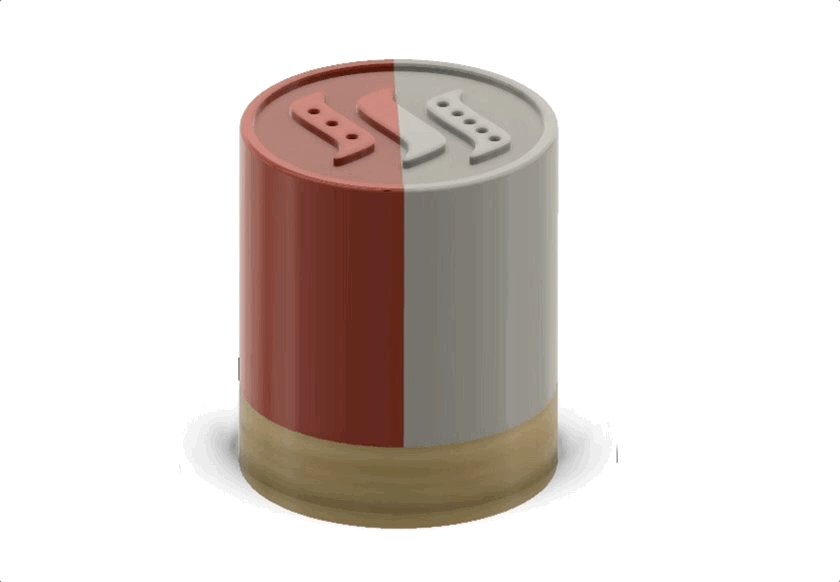

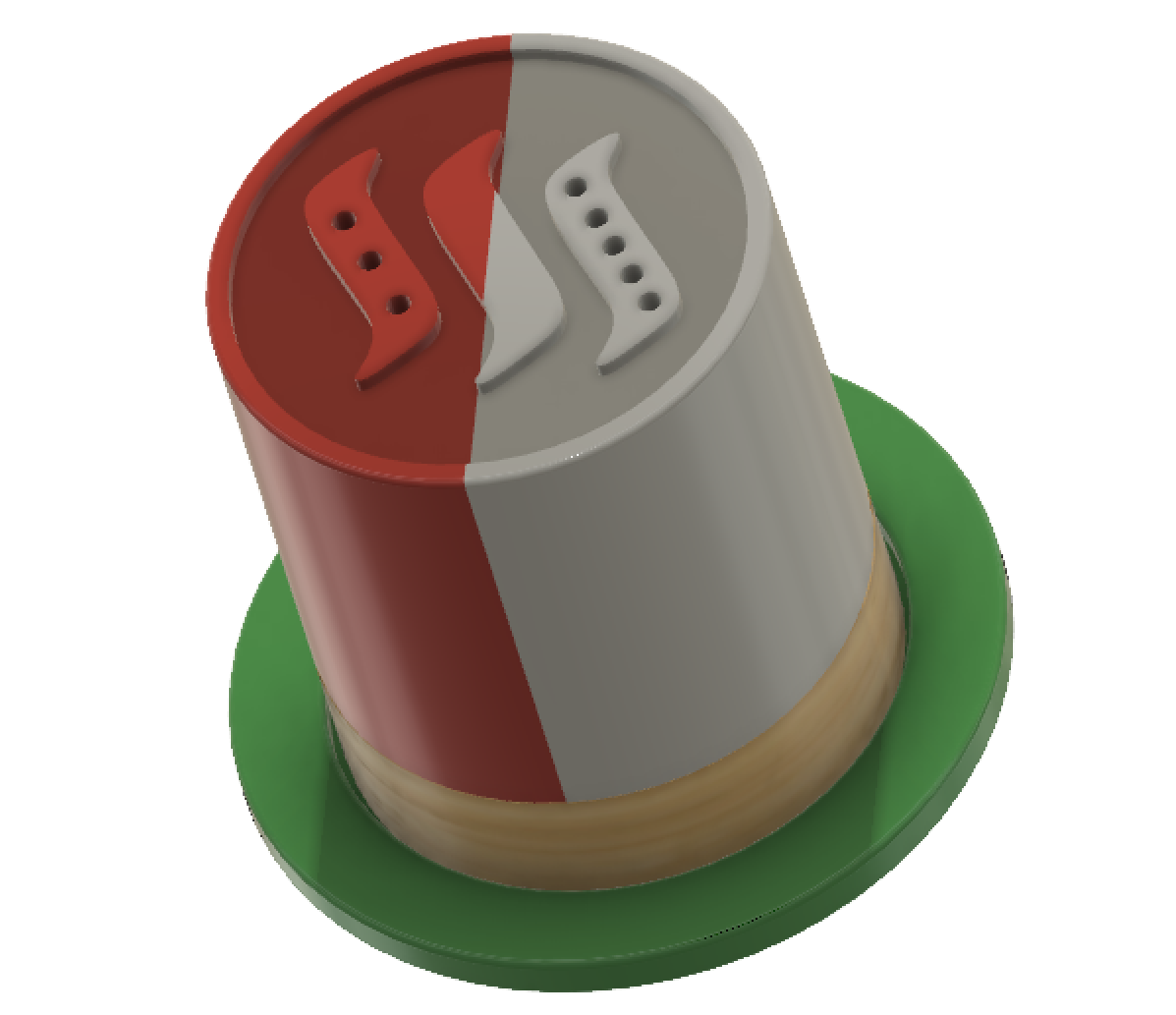

This is a Steemit 3D salt and pepper shaker set that I 3d designed with Fusion 360 programme. I have made many unthinkable 3D Steemit stuff but haven't made Steemit salt and pepper shakers. The salt shaker is made of red glossy plastic. The pepper shaker is made of grey glossy plasctic. The lids underneath are made of bamboo and the holder of green glossy plastic. I won't be able to 3d print this set in glossy plastic or wood because it is impossible to print like factories are doing it. I also don't have wood color filament.

![cxz.gif](https://cdn.steemitimages.com/DQmXaPWqWqVskYkekfGNJmpxrSGrTgdSbESsPWSq217t8u4/cxz.gif)

# The salt and pepper shakes are seperated in case you think they are connected :-D.

# Tutorial

![Screen Shot 2018-07-21 at 21.37.17.png](https://cdn.steemitimages.com/DQmRSpUzqgeUuR4ZSuV4GhGUkVkGtvn2EfhtAwinytaxwoB/Screen%20Shot%202018-07-21%20at%2021.37.17.png)

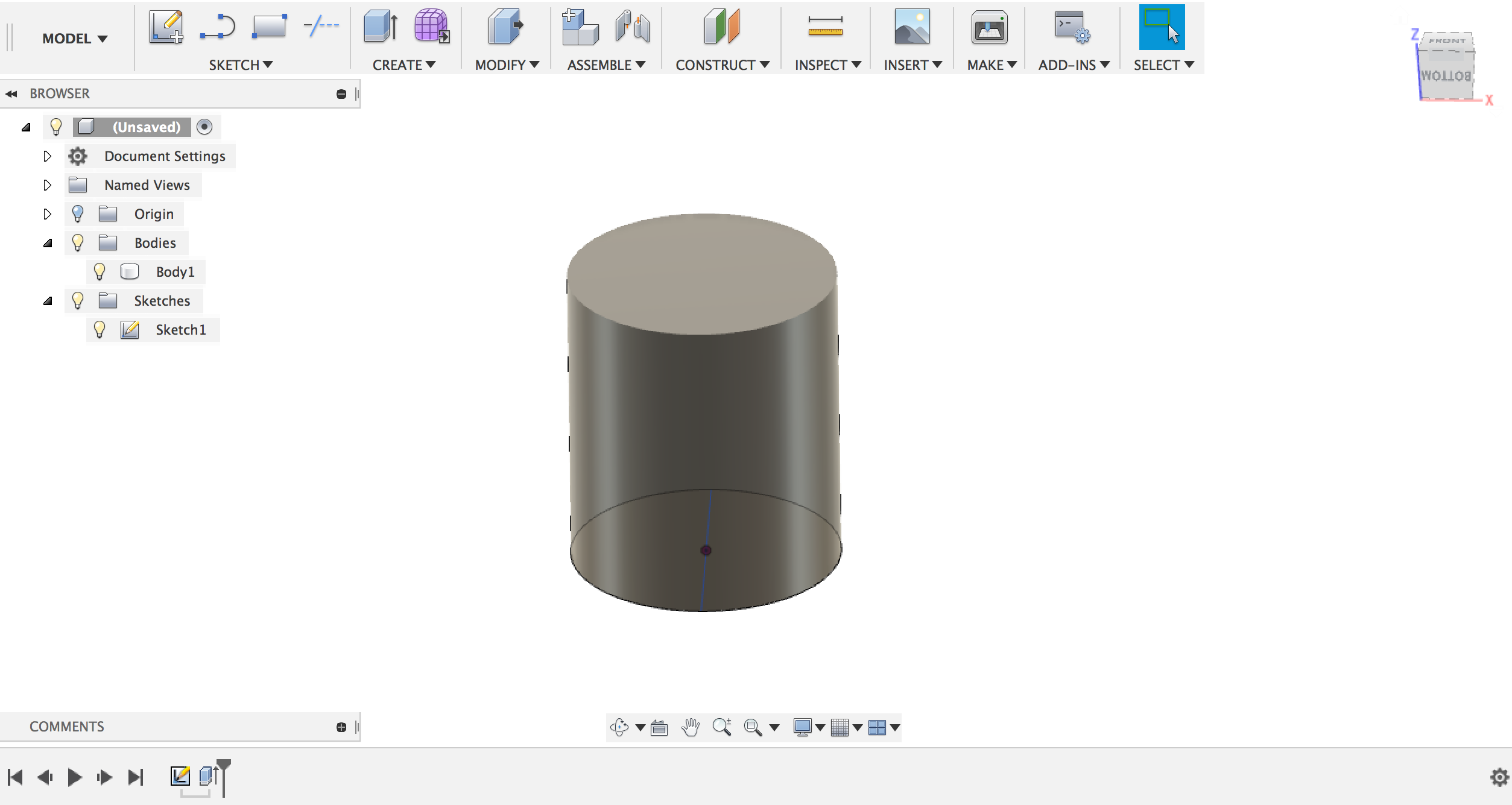

I started with sketching a flat circle with a diameter of  70 mm and extruded it 80 mm high.

![Screen Shot 2018-07-21 at 21.37.30-side.png](https://cdn.steemitimages.com/DQmZwxocnZEgNV1Fw9qeQhaWi9N5YCmPC3SPpzcKZSoAnKr/Screen%20Shot%202018-07-21%20at%2021.37.30-side.png)

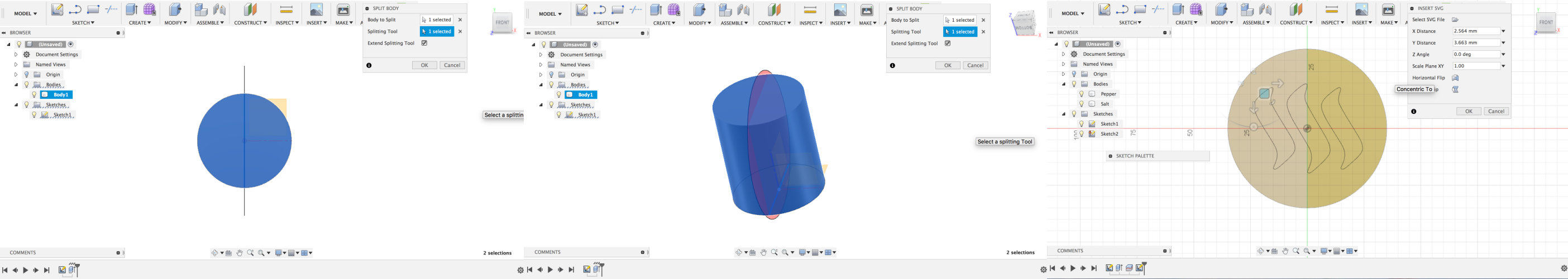

Then I had to split the circle in two. I did that by sketching a vertical line first on top of it. By selecting Split Body under Modify I split the body in two using the vertical line as my splitting tool. After that I inserted the Steem(it) logo as an SVG file and placed it on top.

![Screen Shot 2018-07-21 at 21.54.32.png](https://cdn.steemitimages.com/DQmUdt35noeMB7nfS2by9ENbdut9gNvYapRCySLMpJCENZF/Screen%20Shot%202018-07-21%20at%2021.54.32.png)

![Screen Shot 2018-07-21 at 21.58.28.png](https://cdn.steemitimages.com/DQmSidQ1TNBbCkcivT8Su5uytAcTV7QoabkhDxrw4u8X73i/Screen%20Shot%202018-07-21%20at%2021.58.28.png)

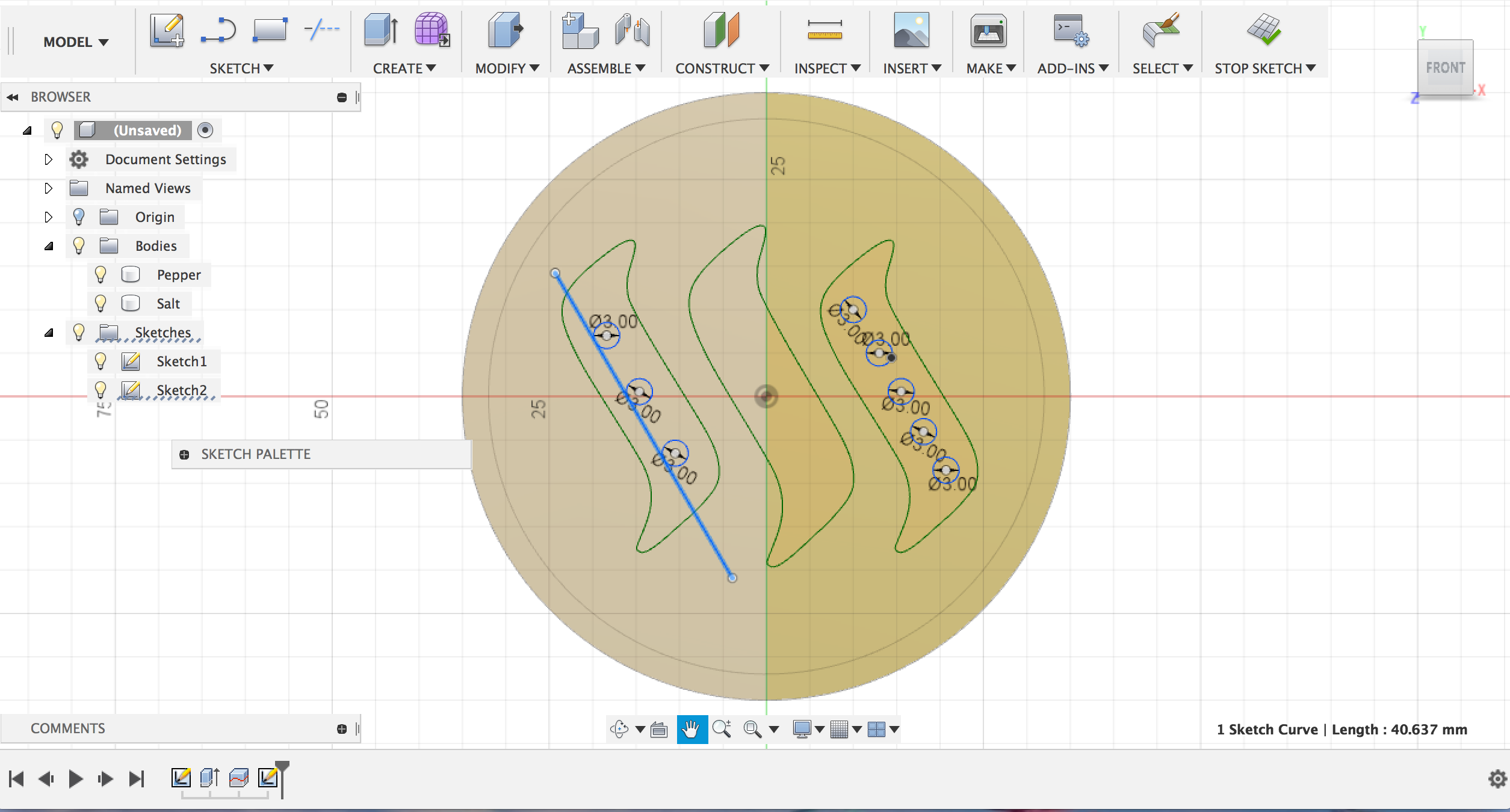

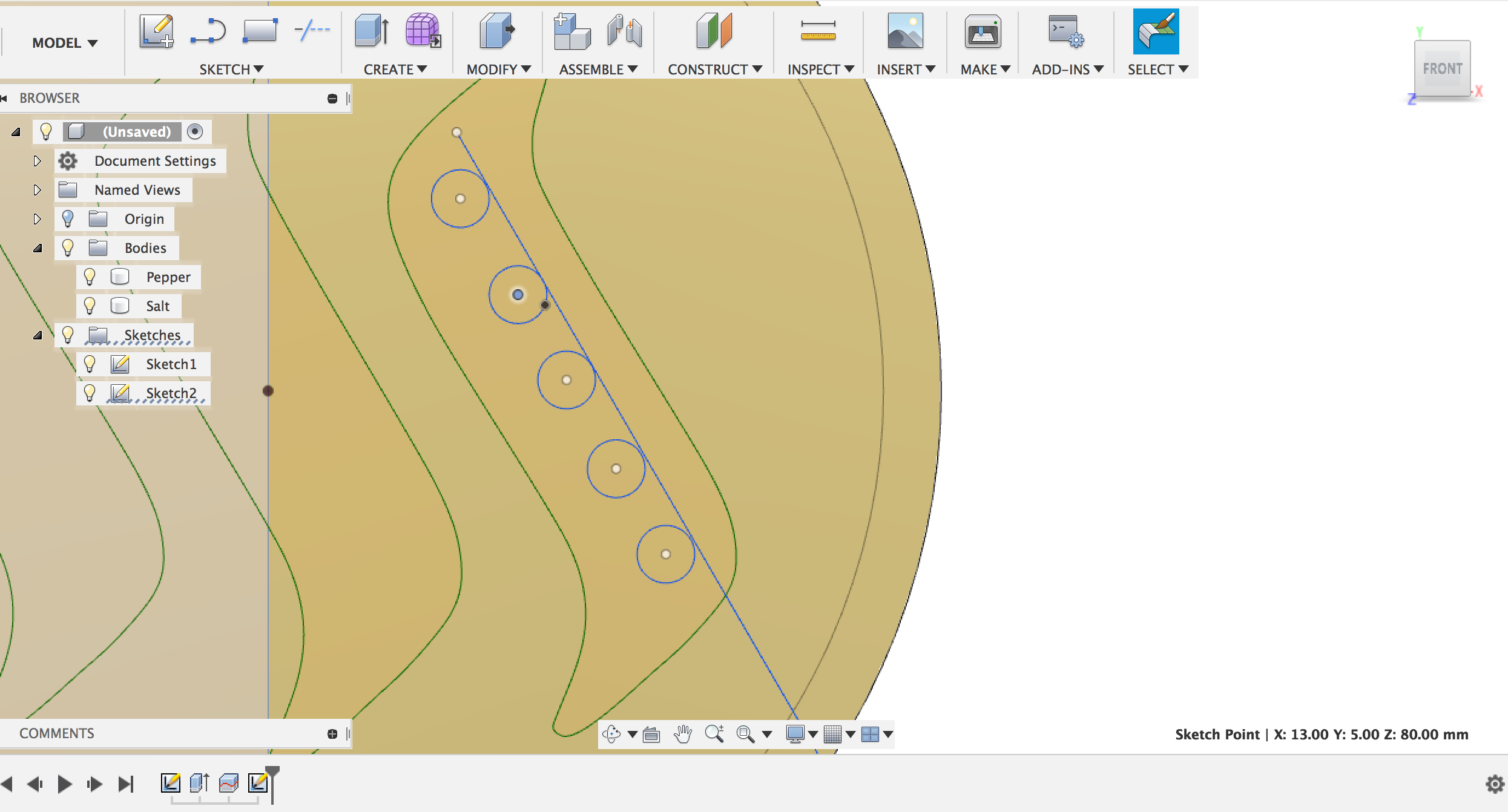

I offset the circle with 3 mm, which will be a frame on top. It will give the shakers a little detail. Then I created 3 holes for the salt on the left side and 5 holes for the pepper on the right side. I used a diagonal line to make sure the holes would be in line.

![Screen Shot 2018-07-21 at 22.01.15.png](https://cdn.steemitimages.com/DQmadS4vSog29sajwdHKyWNi84Gj8LJzmgQYYRLZSjAV8iU/Screen%20Shot%202018-07-21%20at%2022.01.15.png)

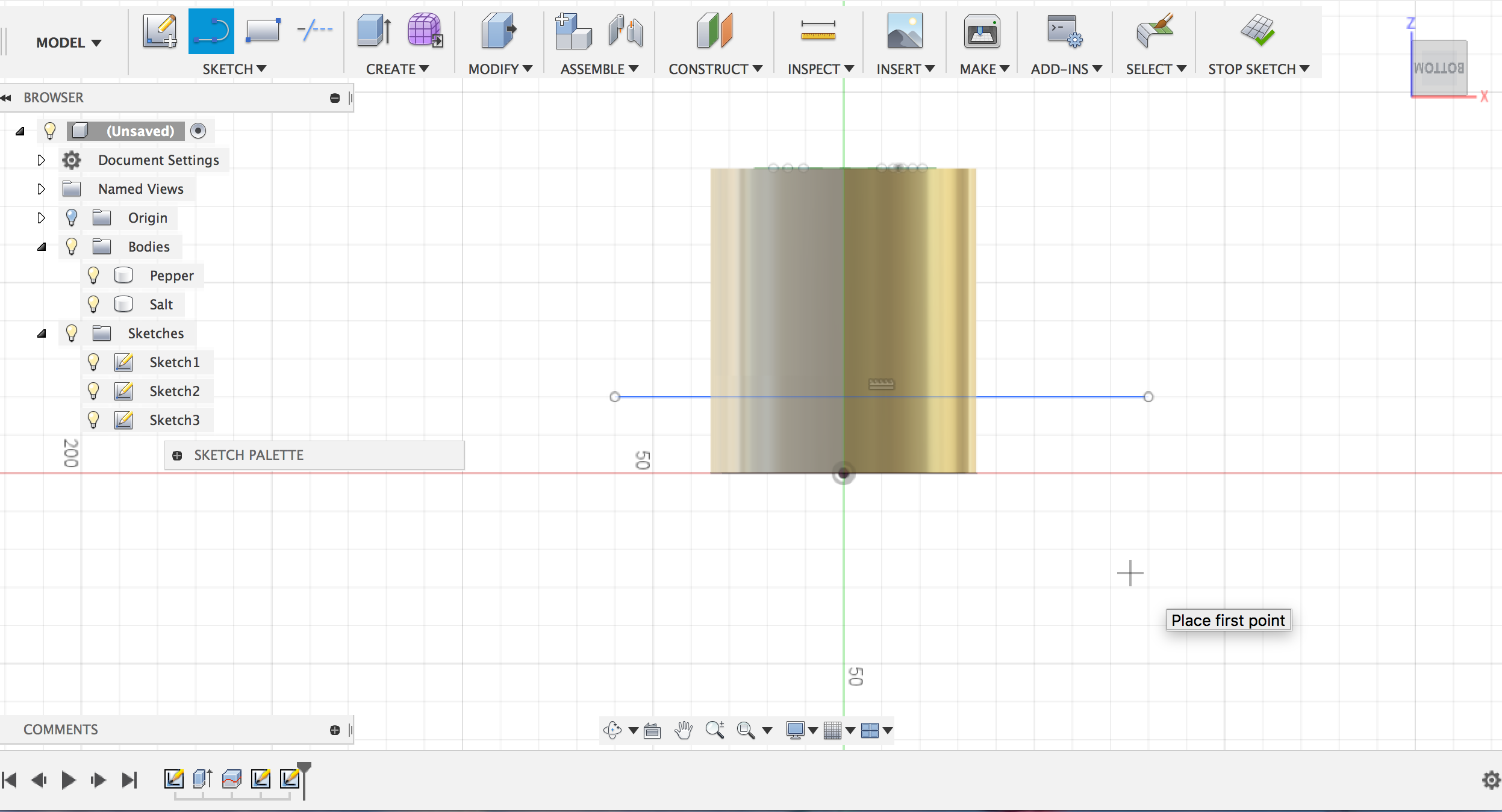

For the lids I had to split the two bodies again. I sketched a horizontal line on the correct face and by selecting Split Body I splitted the two using the horizontal line as my splitting tool.

![Screen Shot 2018-07-21 at 22.06.29.png](https://cdn.steemitimages.com/DQmf75kRSdKwxmDg73t6DjdybJMw2MpxD7uXCjQwtRjRc5U/Screen%20Shot%202018-07-21%20at%2022.06.29.png)

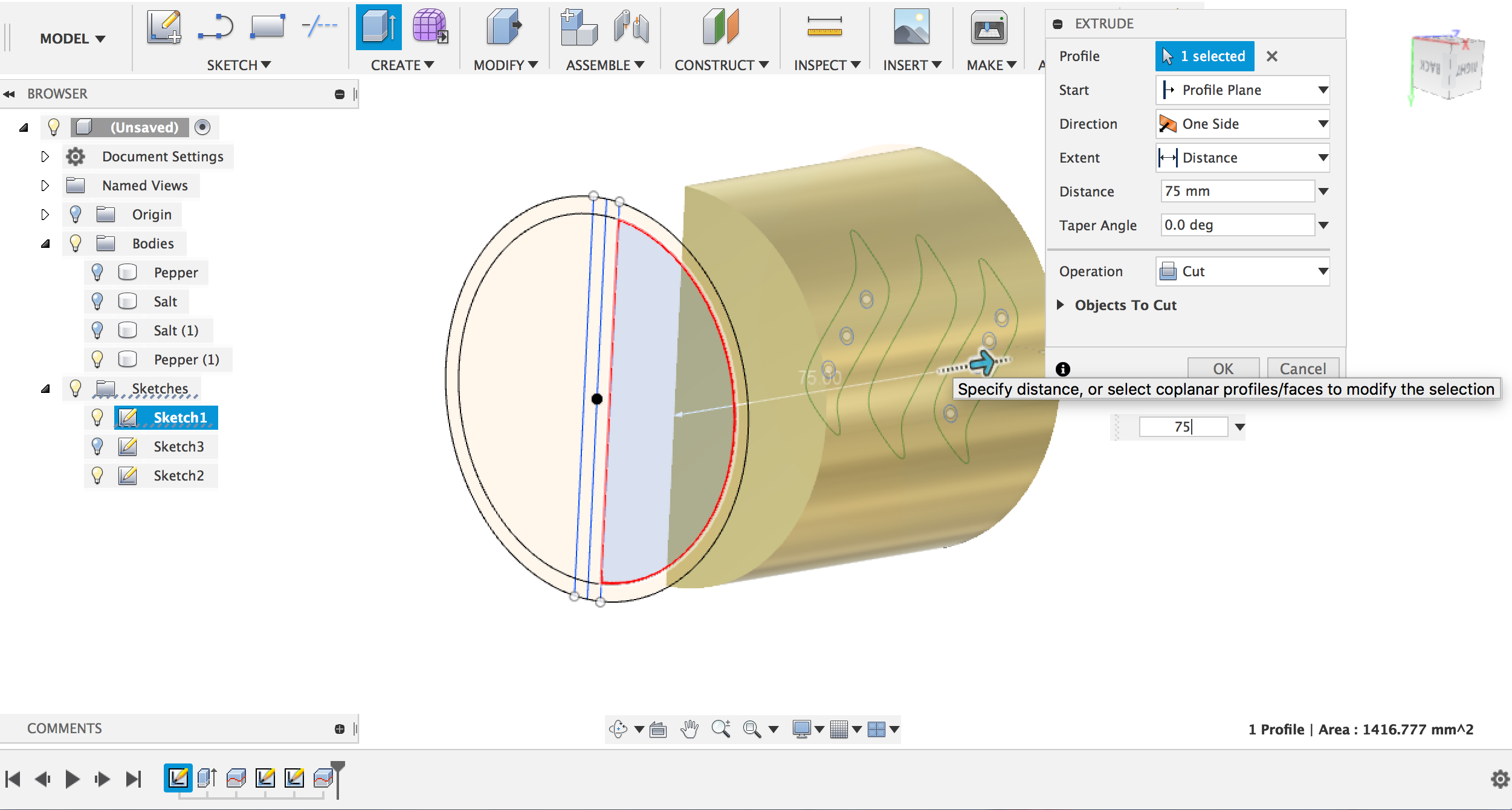

To make the shakers hollow from the inside I had to extrude them using operation Cut, but I had to do them one after the other. First I had to offset the two shakers with 2 mm before I could extrude them.

![Screen Shot 2018-07-21 at 22.11.20-side.png](https://cdn.steemitimages.com/DQmQfnTbgGcgiTmZYu1ve2mmJc2ksD9h7NNZeg7GPAU5Q4G/Screen%20Shot%202018-07-21%20at%2022.11.20-side.png)

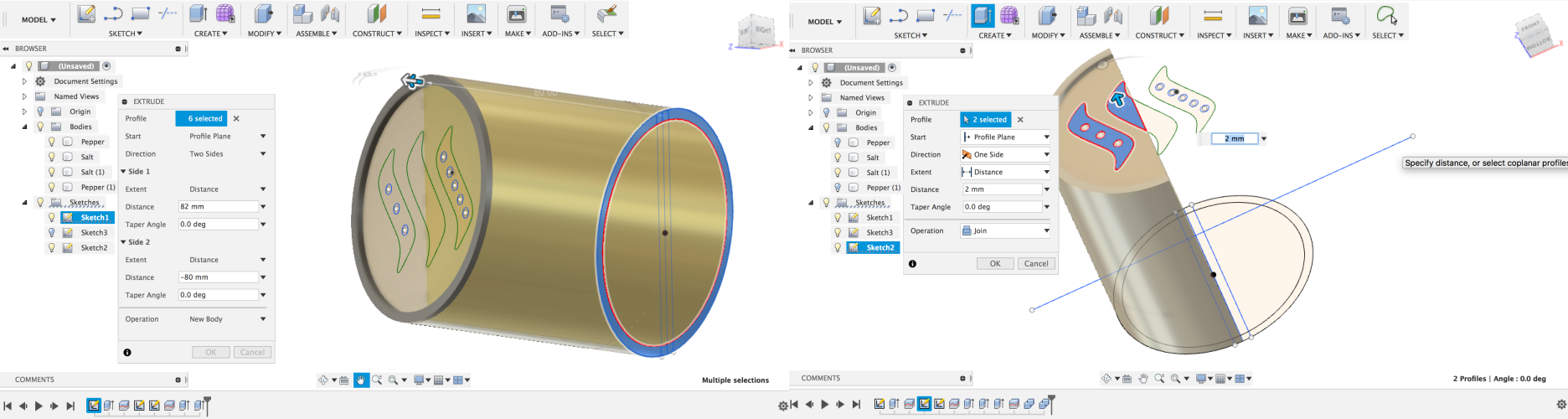

The frame around the logo here is extruded with 2 mm with operation Join. After that I extruded the Steemit logo with 2 mm. I extruded first the other half.

![Screen Shot 2018-07-21 at 22.15.27.png](https://cdn.steemitimages.com/DQmSEqT5KcPoiDcnzyMp3BAtUHjbqZnGT4mx4cbVrizpuPR/Screen%20Shot%202018-07-21%20at%2022.15.27.png)

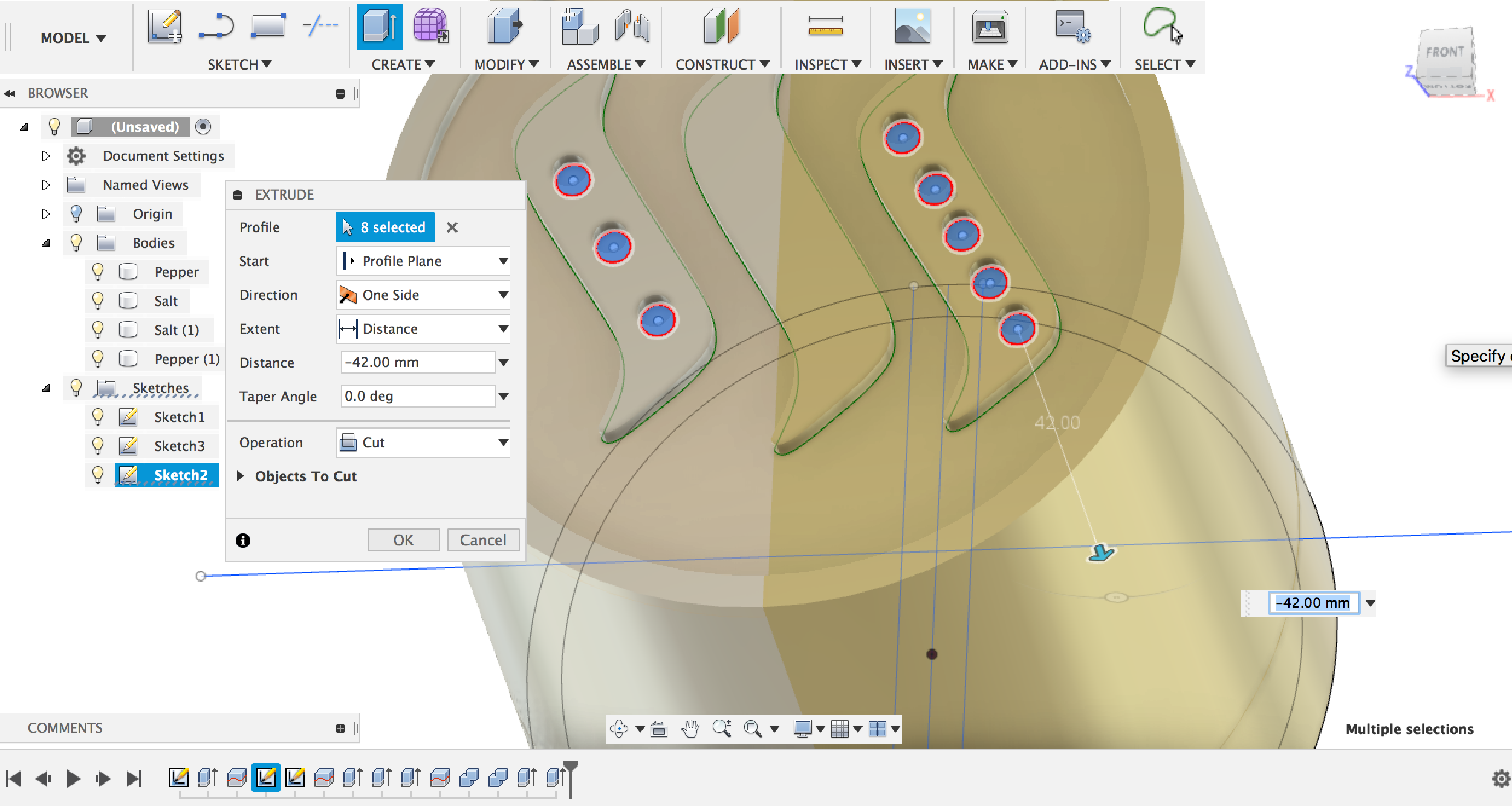

There were no real holes yet for the salt and pepper so I had to extrude all holes using operation Cut.

![Screen Shot 2018-07-21 at 22.16.21.png](https://cdn.steemitimages.com/DQmeiCoP82FTpwbuQj6QqSF2tJmxGdPb2n7y2kGiURshL8i/Screen%20Shot%202018-07-21%20at%2022.16.21.png)

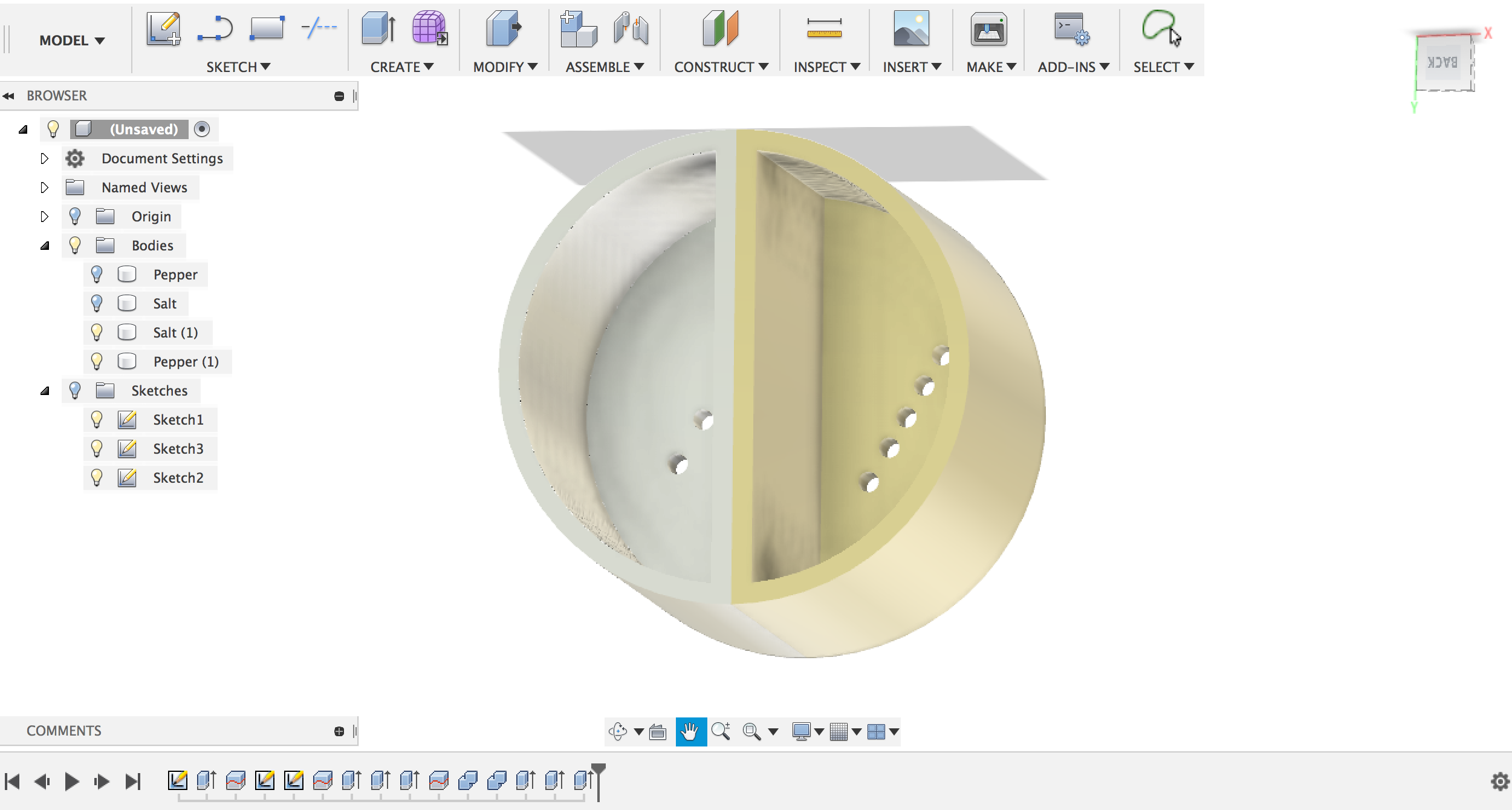

This is how it looks right now from below. Not finished at all.

![Screen Shot 2018-07-21 at 22.16.58.png](https://cdn.steemitimages.com/DQmbCFHc6Uaqj5skVUHHoxwdmRbQeUANxzqHPskWSvp5q8x/Screen%20Shot%202018-07-21%20at%2022.16.58.png)

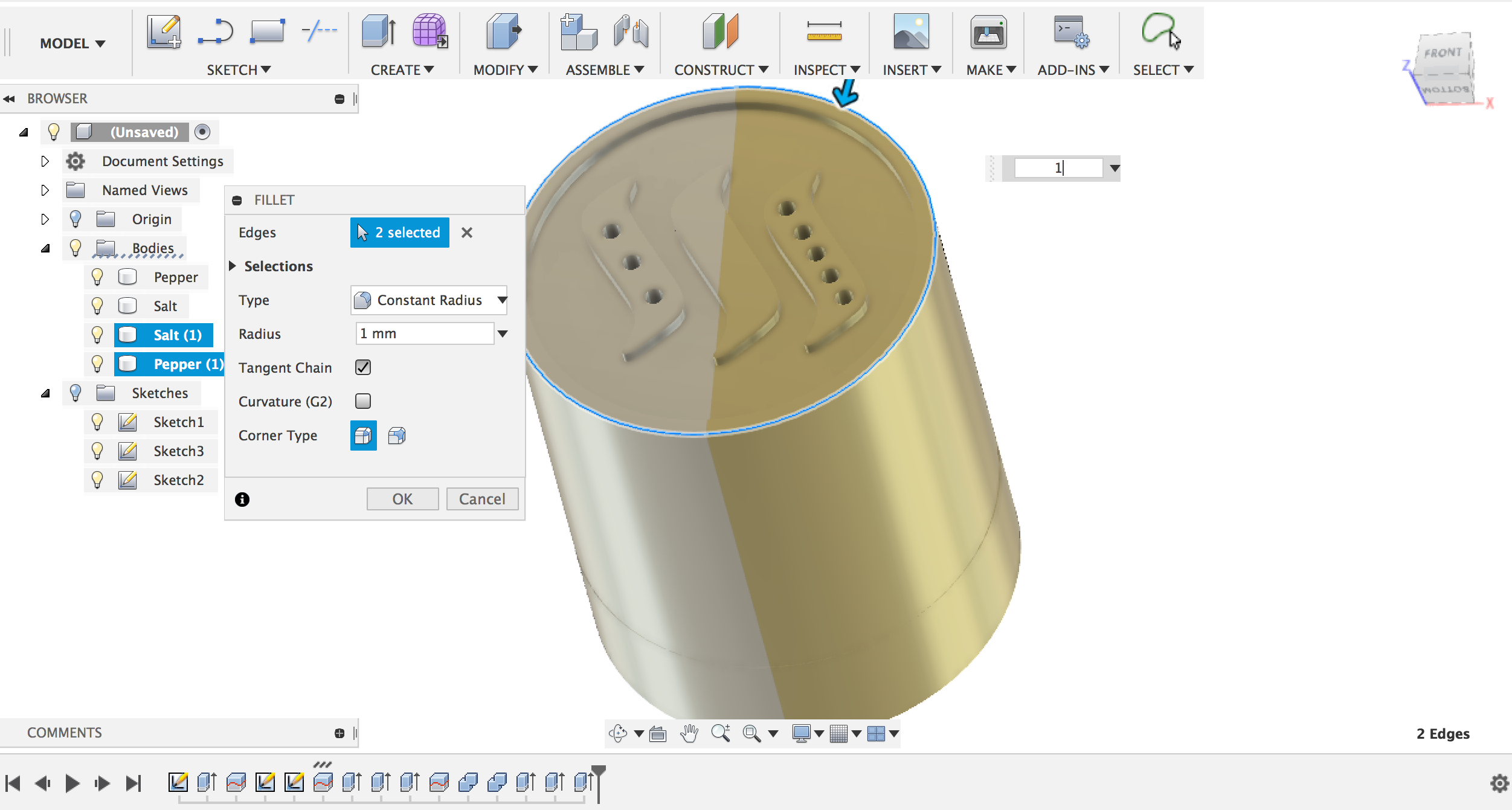

I gave the edges fillets of 1 mm.

![Screen Shot 2018-07-21 at 22.28.24.png](https://cdn.steemitimages.com/DQmWqZVcHUtwiZsL6AJUJn7XX5795AufeLiPxR9qAivhYe9/Screen%20Shot%202018-07-21%20at%2022.28.24.png)

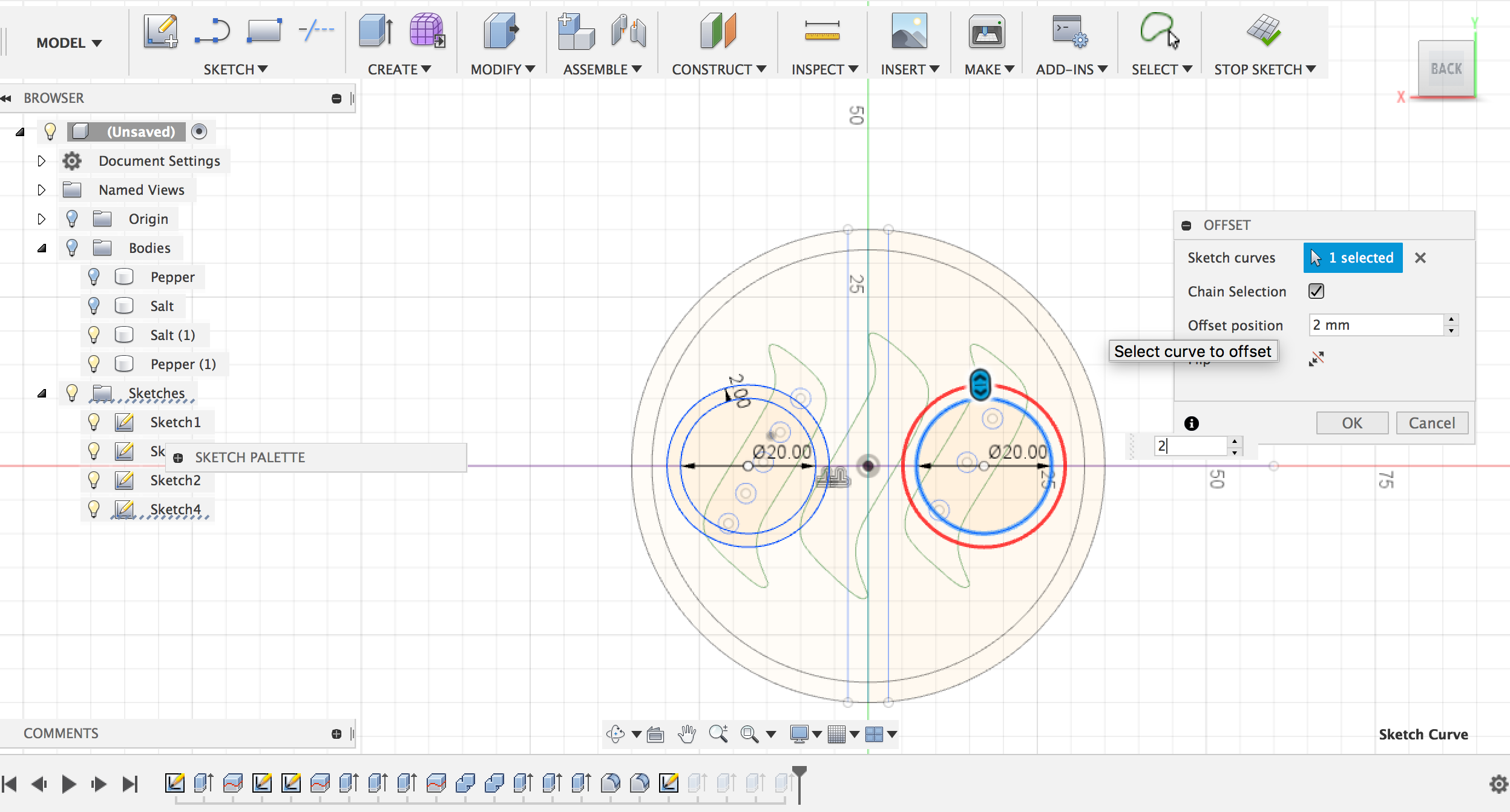

Here I sketched two equal circles and offset the two circles with 2 mm.

![Screen Shot 2018-07-21 at 22.30.09-side.png](https://cdn.steemitimages.com/DQmdagRnjysEDzMCKGGr1GaP8ipUzAa4X7UeTd5TXwcsFkt/Screen%20Shot%202018-07-21%20at%2022.30.09-side.png)

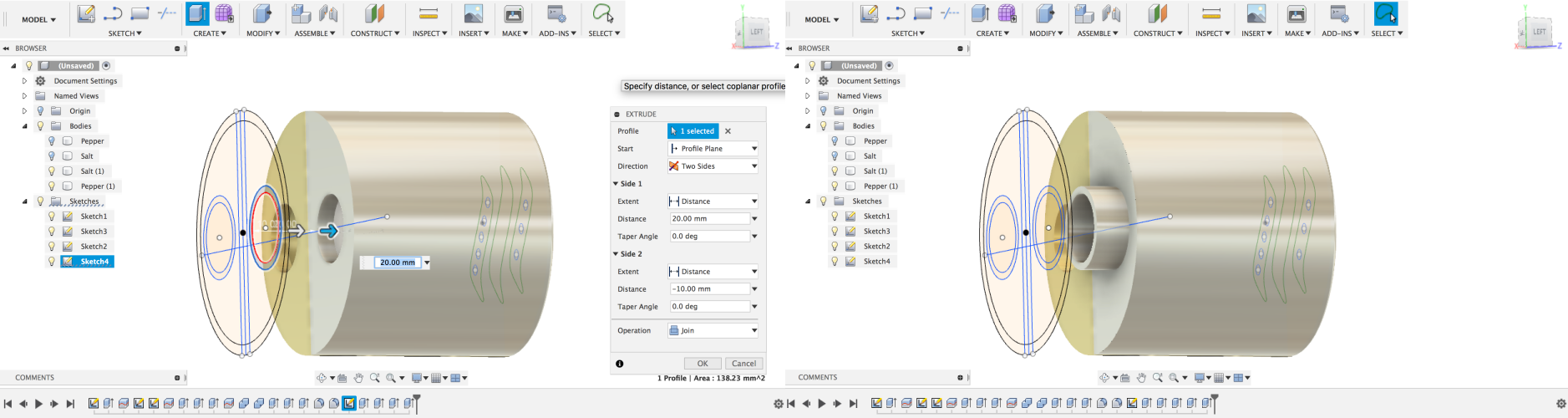

The two inner circles I extruded with operation cut. The two outer circles I extruded  around 10 mm with operation Join.

![Screen Shot 2018-07-21 at 22.31.08-side.png](https://cdn.steemitimages.com/DQmPmCCx7KFxJnzGE6wNoRGnSCatPy29U7kfXvNYmFGYS2n/Screen%20Shot%202018-07-21%20at%2022.31.08-side.png)

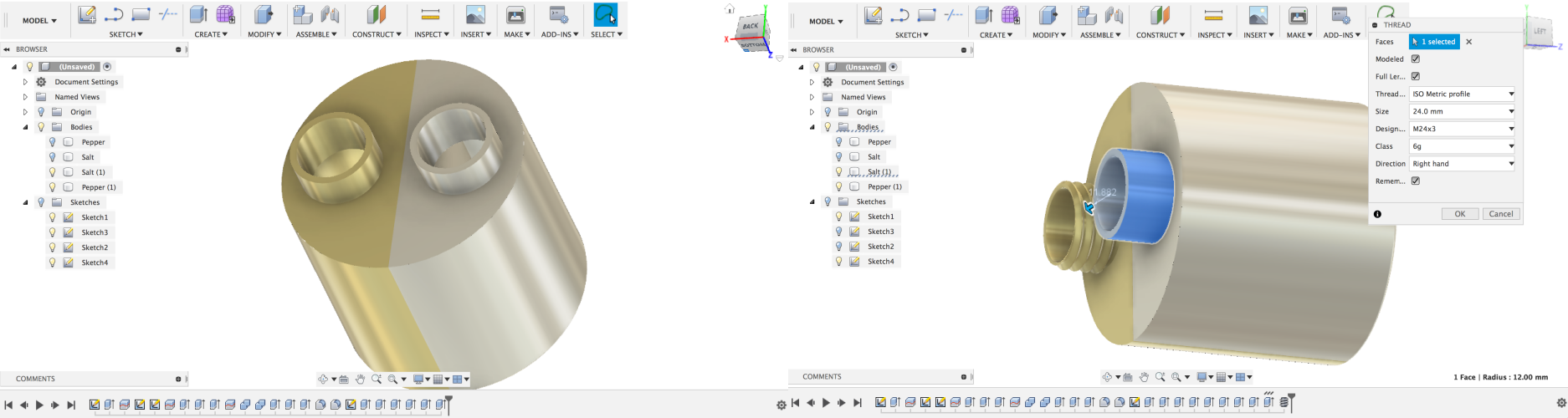

The salt and pepper shakes still need internal and external threads. By selecting Coil, I could add threads to the outer circles.

![Screen Shot 2018-07-23 at 19.36.34.png](https://cdn.steemitimages.com/DQmTf98KW5qVzHwrhLp4fZqmSmrHSGS9nfTcwjSB19nNj71/Screen%20Shot%202018-07-23%20at%2019.36.34.png)

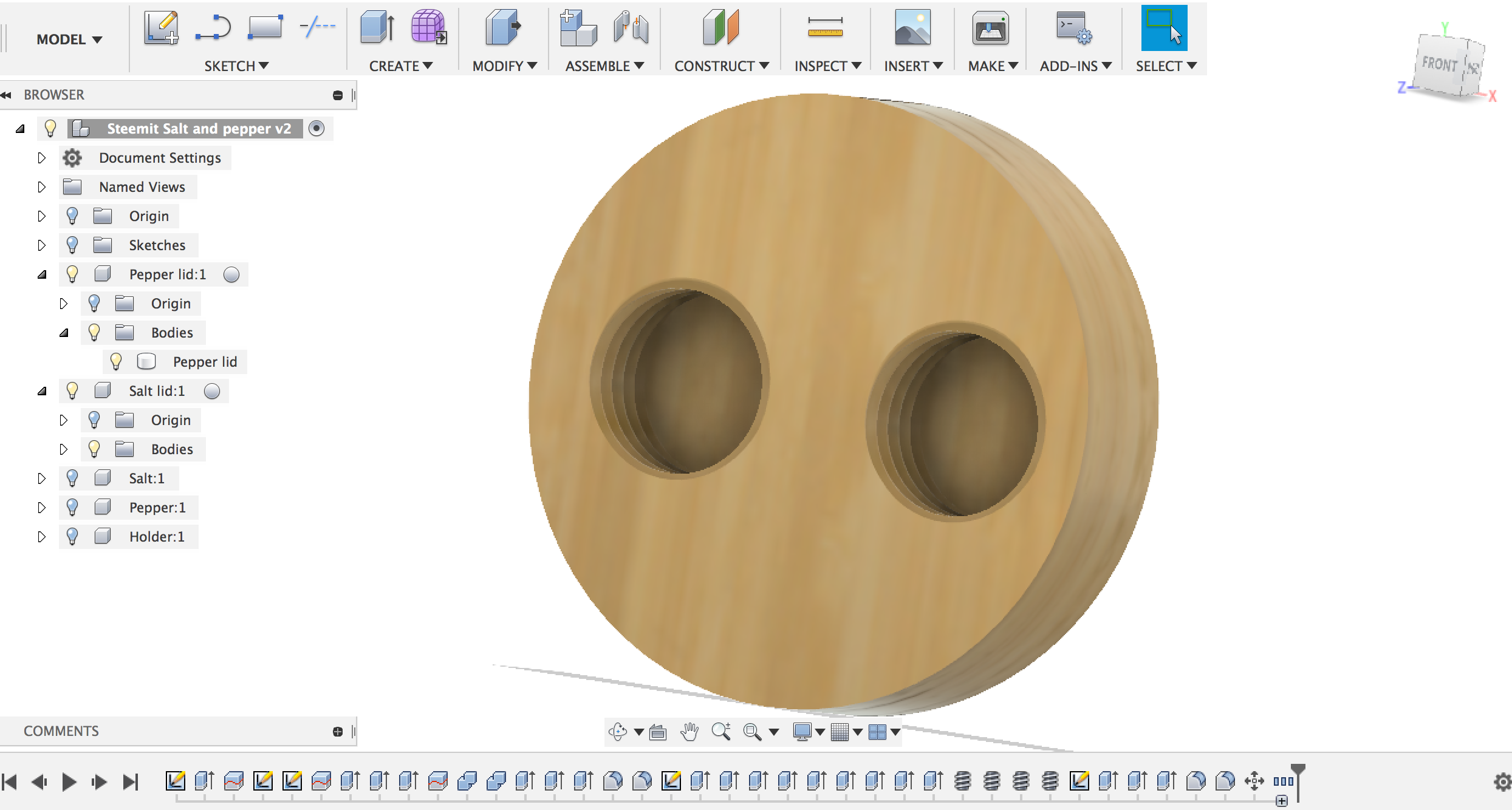

I did the same with the salt and pepper lids. The appearance I changed as well.

![Screen Shot 2018-07-23 at 19.38.29.png](https://cdn.steemitimages.com/DQmXtkSsWd2BpadwRzWaqk5wHVKGRQuRDkdMM9wNfRJmFGa/Screen%20Shot%202018-07-23%20at%2019.38.29.png)

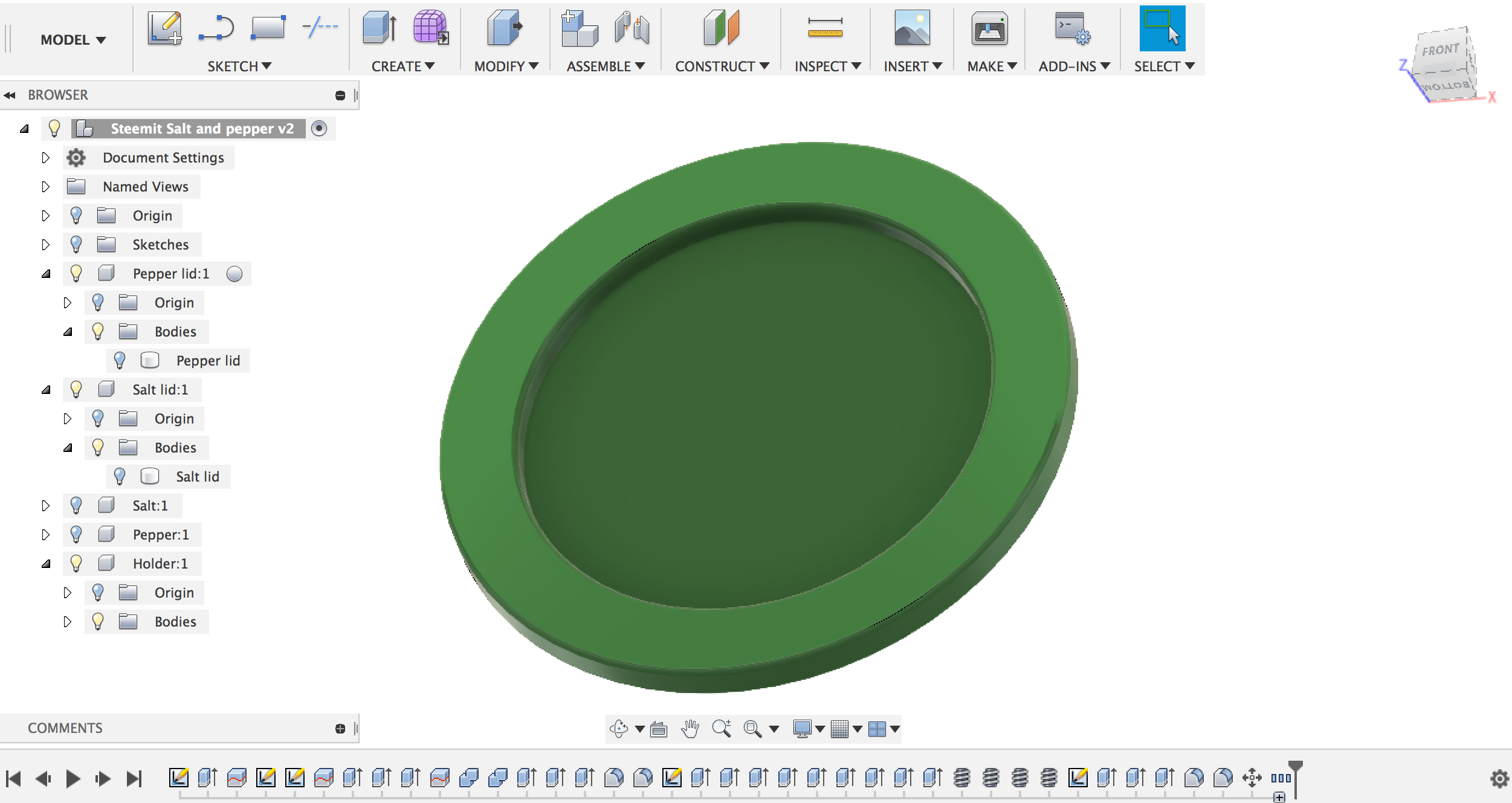

This is the salt and pepper holder/plate to keep them together.

![ccds.gif](https://cdn.steemitimages.com/DQmW13Y3fiGb9FQxYZkXsLGJENsjdmxDfsifL89VfocyVqe/ccds.gif)

![cdcsc.png](https://cdn.steemitimages.com/DQmUEP9Ens8K5VoRLzGBeuNchGTRAUKRooSF2tUbcgEVJ9f/cdcsc.png)

![cxzc.png](https://cdn.steemitimages.com/DQmZ5oJym8dC3ab2mvdccEPmhDSRyCbZxRc9hRqzTfa7n1g/cxzc.png)

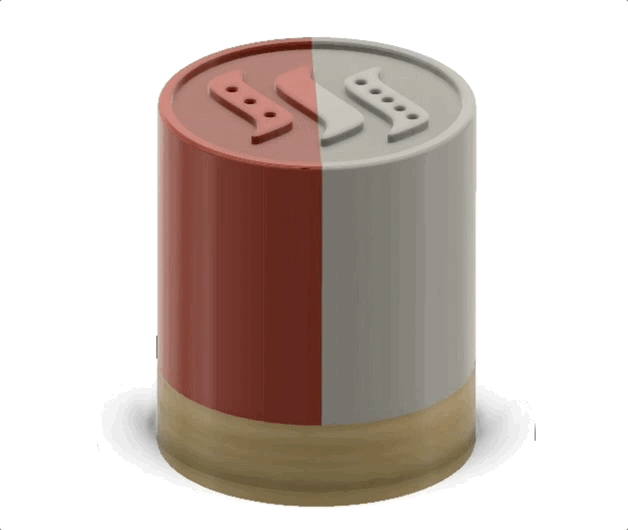

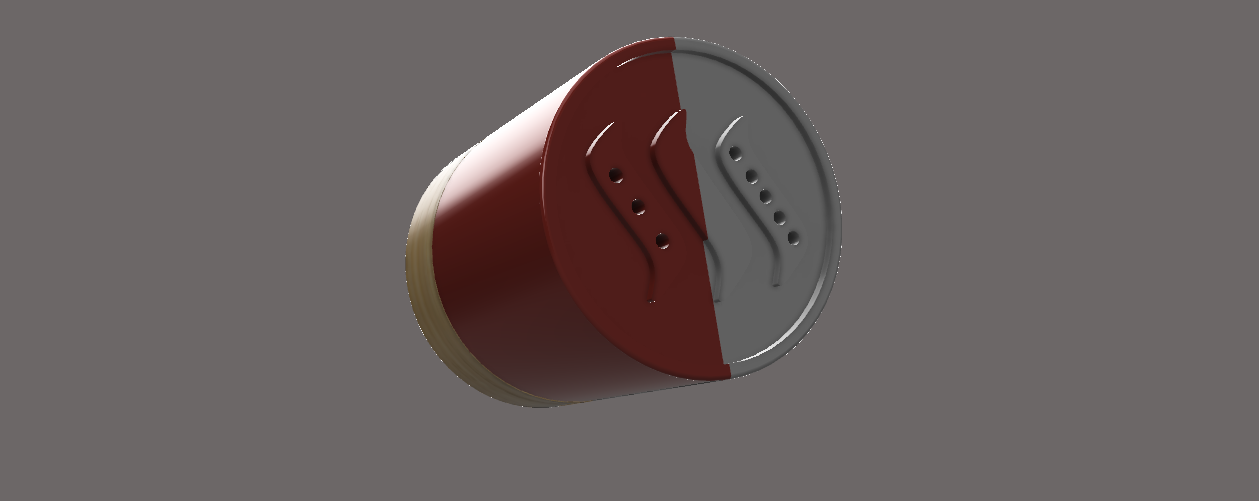

It looks so real and beautiful but I know it won't look like this when I 3d print them. So please, no high expectations :-D. I will be 3D printing everything but it will take couple of days because it exists of 5 parts including the holder/plate.
