JWildfire: adding text to a fractal
https://s9.postimg.cc/k0mmwsmv3/design_lessons_steem1.jpg
____
Hello!
Today I will tell you how to add text to a fractal image in the JWildfire program.
Some may be surprised by the topic of the lesson. After all, you can add text using any graphic editor on top of the finished image. Add - it is possible, but to make the text part of the fractal, so that it repeats its form - it is much more complicated.

A separate plugin is responsible for adding text to JWildfire.
Create a new fractal **New from scrath** and add a triangle with the **Add** button. Instead of the standard **linear3D** plugin, select **text_wf**. You will see one word on the screen:

[![image.jpg](https://s31.postimg.cc/njngk64sb/image.jpg)](https://postimg.cc/image/m4lvvg3p3/)

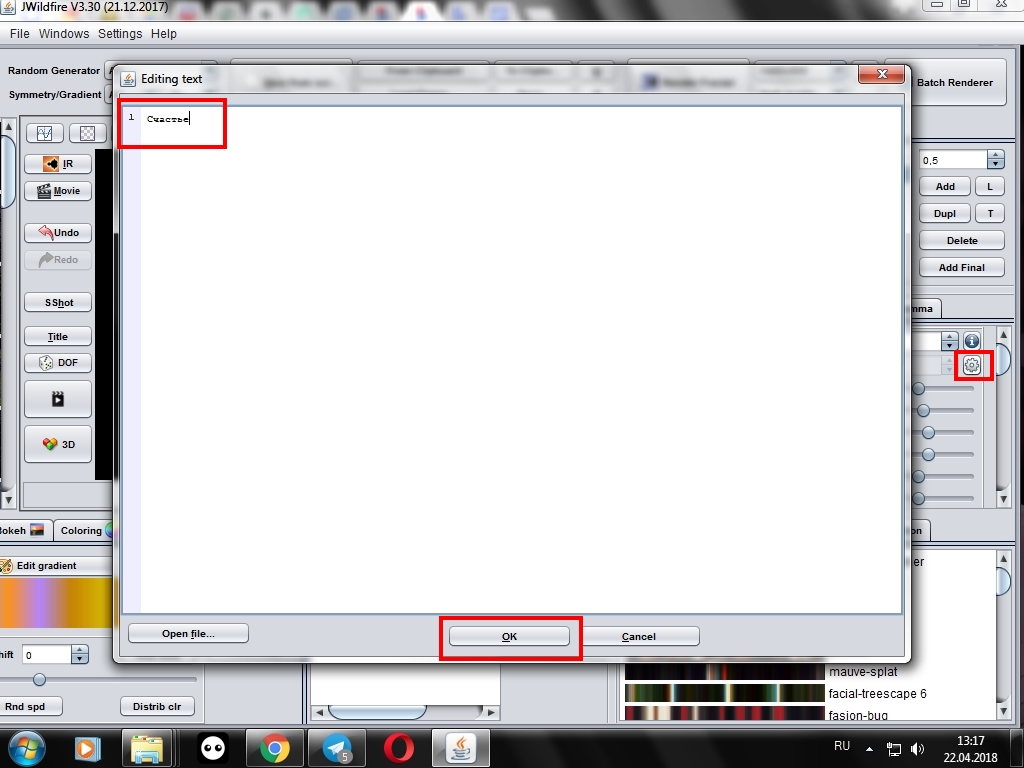

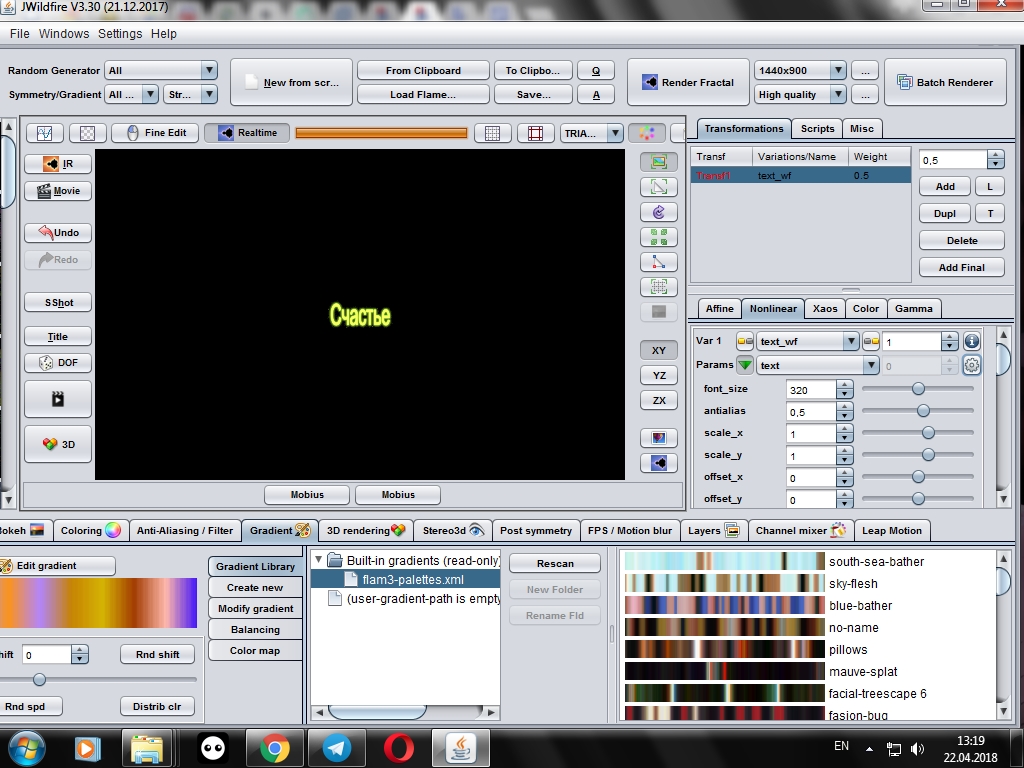

To replace the standard text with your own, you need to open the plug-in settings window (the button in the form of a gear) and enter the desired one:

[![image.jpg](https://s31.postimg.cc/mu4o7xma3/image.jpg)](https://postimg.cc/image/z8rg89ds7/)

[![image.jpg](https://s31.postimg.cc/4ek7al5ln/image.jpg)](https://postimg.cc/image/g3o6yjwk7/)

With the help of additional parameters, you can add various effects - stretching, increasing and decreasing letters, turning, moving over the field of coordinates, giving the effect of a glow:

[![image.jpg](https://s31.postimg.cc/txcjnq76z/image.jpg)](https://postimg.cc/image/5tlrzfopz/)

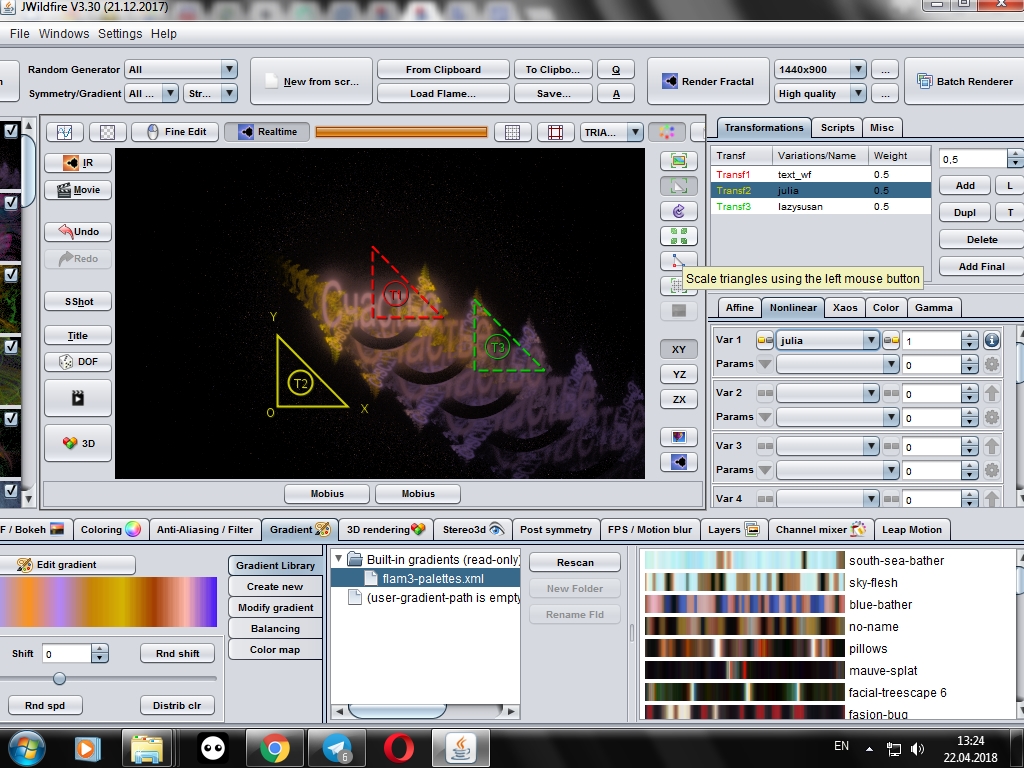

Adding a couple more triangles can create a fractal based on the text))

[![image.jpg](https://s31.postimg.cc/gugx3zyu3/image.jpg)](https://postimg.cc/image/6x5waxr87/)

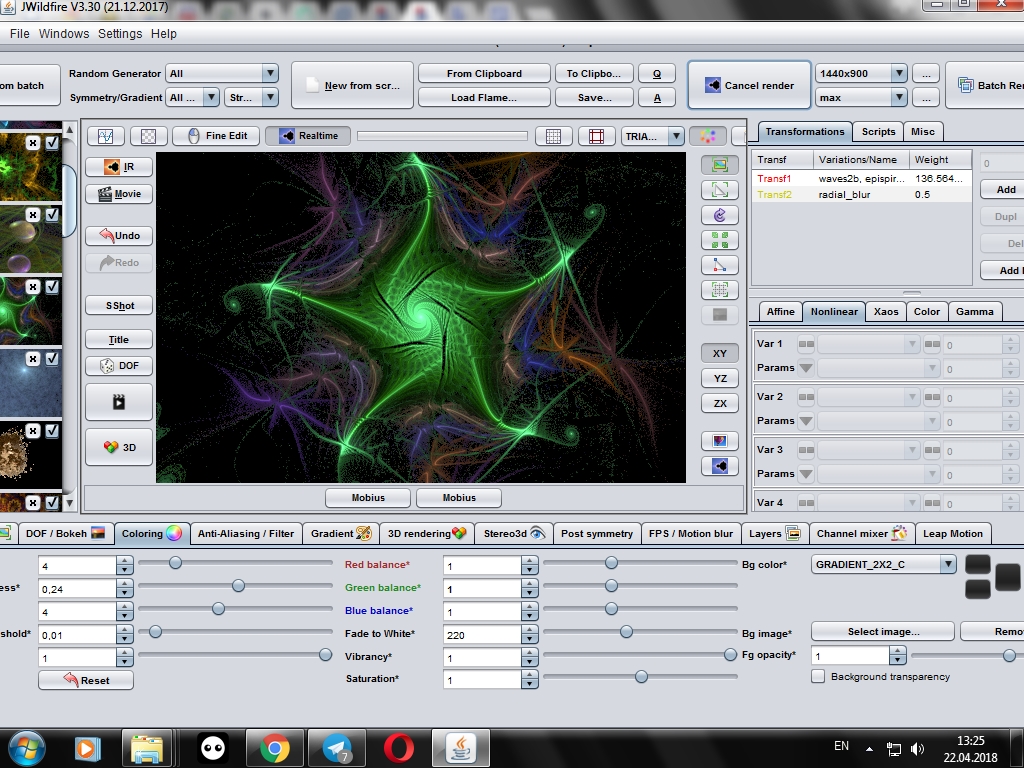

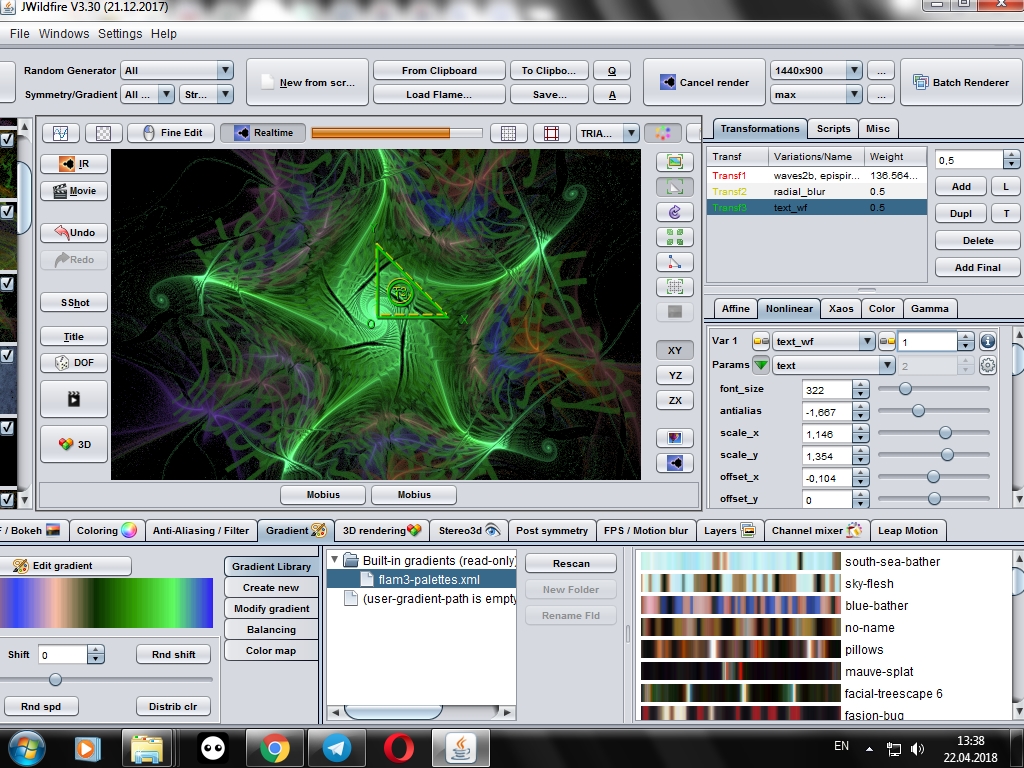

Of course, the text can be added to the fractals that you did earlier:

[![image.jpg](https://s31.postimg.cc/ftgof1hwb/image.jpg)](https://postimg.cc/image/56mv9m9qv/)

[![image.jpg](https://s31.postimg.cc/mjx5oon4b/image.jpg)](https://postimg.cc/image/sxm8rxs07/)

[![3678.png](https://s31.postimg.cc/vb8rwdyaj/3678.png)](https://postimg.cc/image/5sgfjdeqf/)

[![3679.png](https://s31.postimg.cc/y6lv39x5n/3679.png)](https://postimg.cc/image/ebzth5hxz/)

Successful experiments!

Sorry for any mistakes in English, this is not my native language
Author: @vasilisapor2
