Setting up the K40 laser

![C53D0559-4F6F-48A3-8A61-3AAFAAFD4CAF.jpeg](https://steemitimages.com/DQmZFJJkKjmSw1WZEqo7fGoyFvw5s2Av6Ld7EPsyvrhpYfi/C53D0559-4F6F-48A3-8A61-3AAFAAFD4CAF.jpeg)

Calgary has decided it is no longer winter. In fact despite there still being the odd patch of snow around, it was 25c today.

![D439B331-BF97-401E-9FA3-8E5A57A213D3.jpeg](https://steemitimages.com/DQmXfq9JzpdPyVqaHdmCA5Fi3iCqQG3sn6EhoLUiCAskhBA/D439B331-BF97-401E-9FA3-8E5A57A213D3.jpeg)

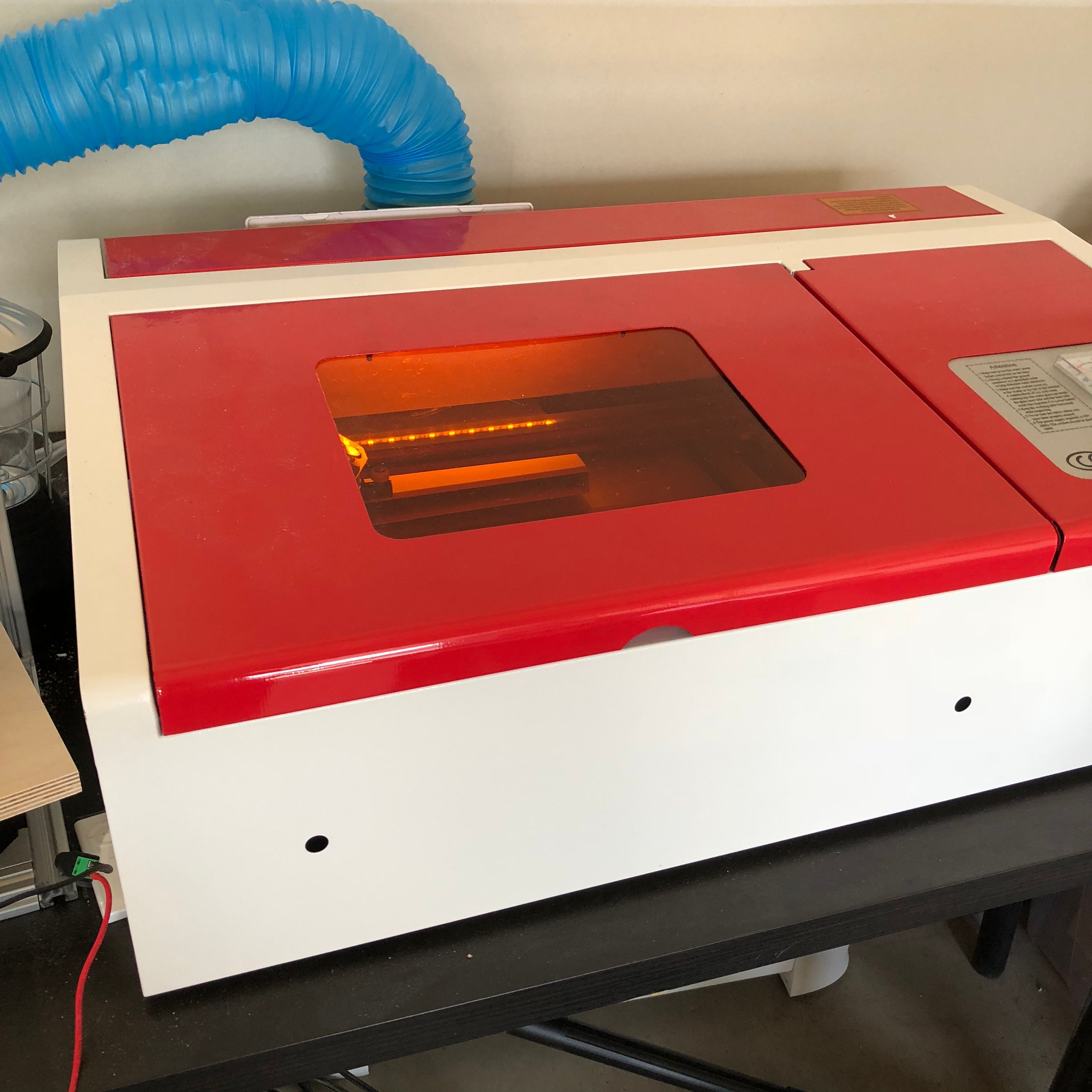

Why does that matter? Well it means I could spend time in the garage setting up my laser. The other Chinese machine.

Unlike my Eleksmaker, the K40 is a 40w Co2 machine, meaning it can cut as well as engrave.

![C72354AA-BCC5-49C9-B725-E54F86C7A35B.jpeg](https://steemitimages.com/DQme5ESyFxQhdaf7sGdAccqLGGPXceYRxt67qQ2mX7zsSjX/C72354AA-BCC5-49C9-B725-E54F86C7A35B.jpeg)

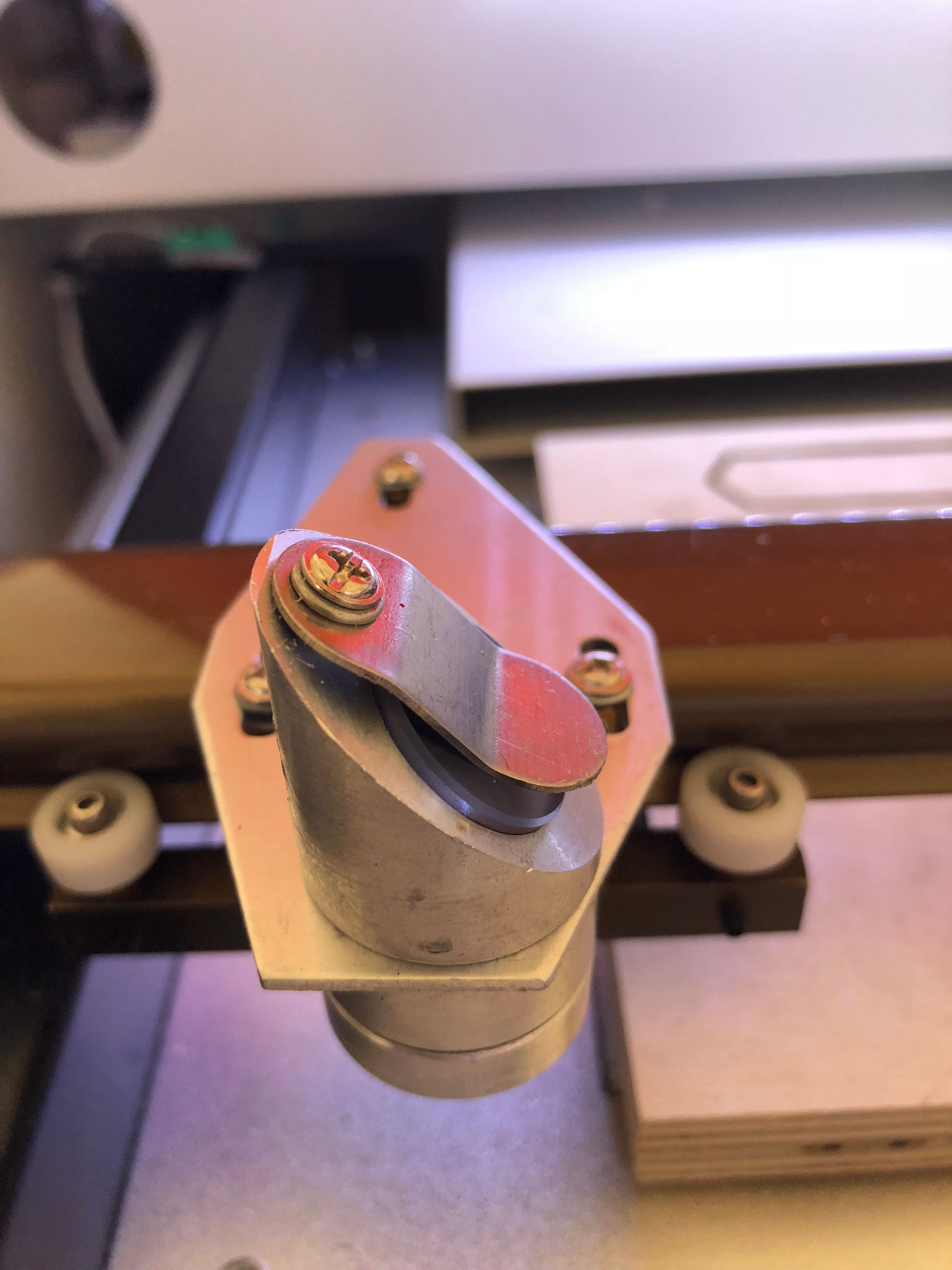

Rather than a solid state laser, it uses a fragile and expensive laser tube, and a series of mirrors.

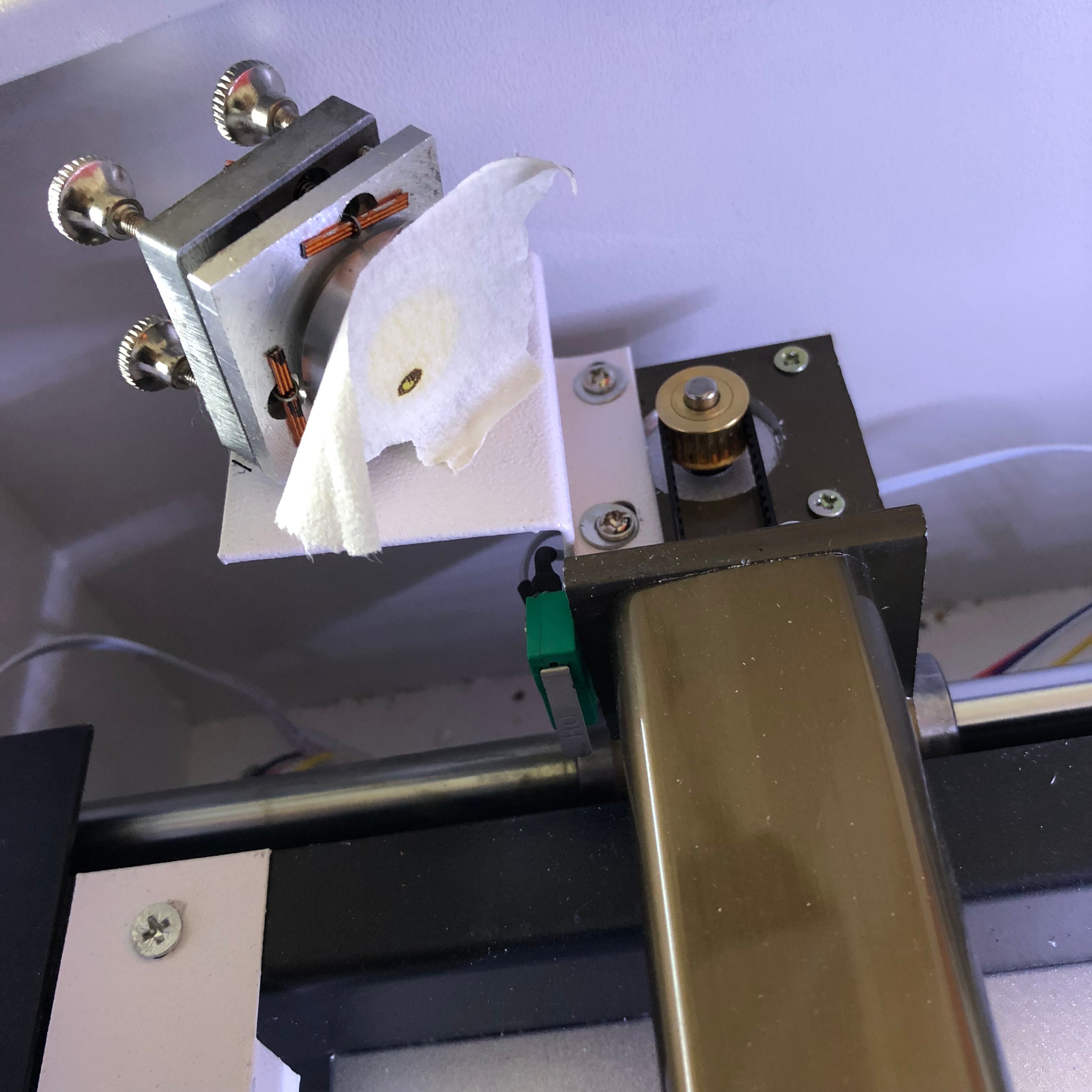

The huge PITA is getting them all to line up so most of the energy is directed at what you want to cut or engrave.

![1646AC59-3BDA-4615-B890-B04A8FA78827.jpeg](https://steemitimages.com/DQmd6gm4y38g5s37wHp9BjMvk9pddE2ey4ffnDfA9Mgrx8G/1646AC59-3BDA-4615-B890-B04A8FA78827.jpeg)

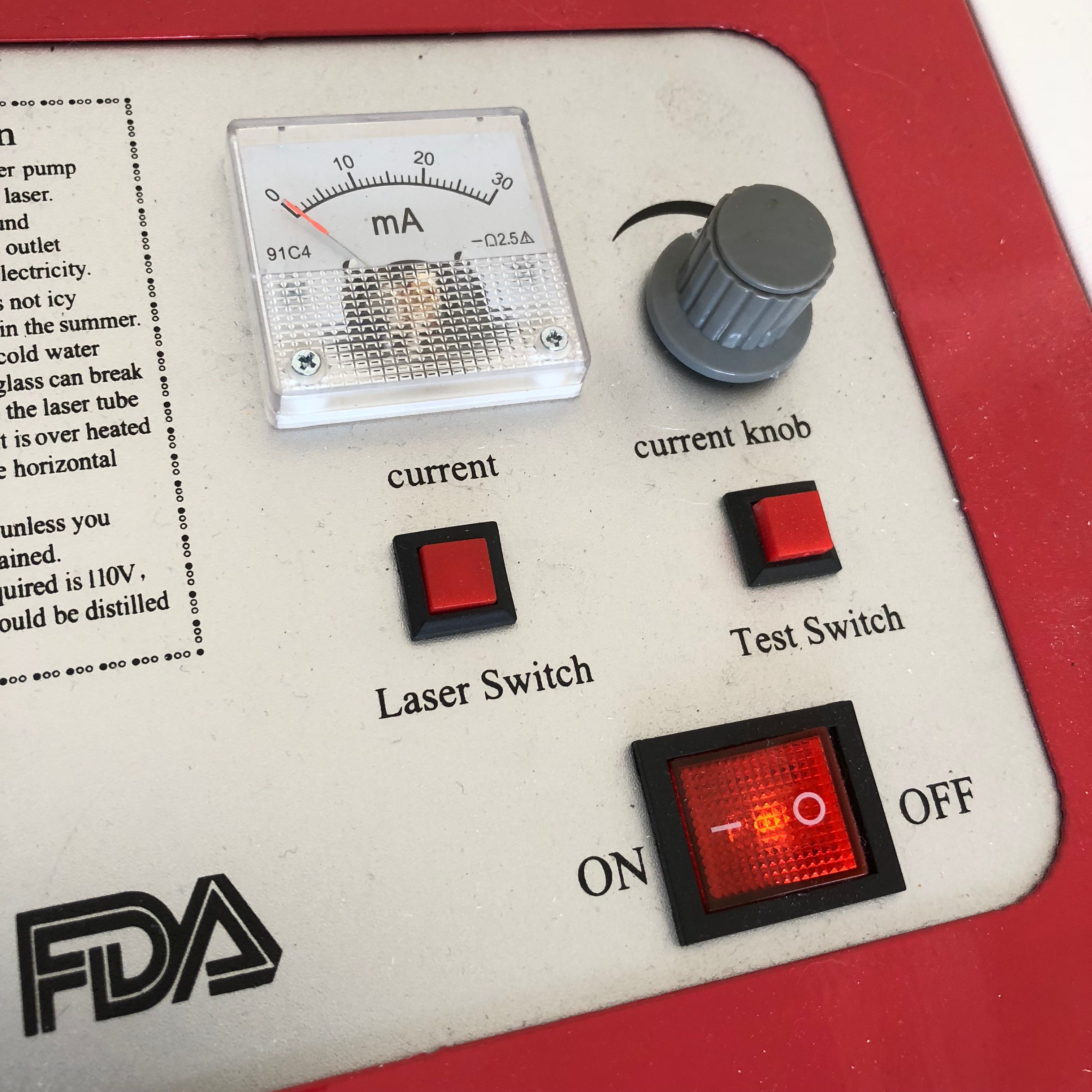

Once you have them lined up you can then try different settings to see what results you can get with different materials.

![C980FBE2-BAE5-46EB-A282-7C3B2AC0EA2F.jpeg](https://steemitimages.com/DQmeBiZqSbe87KZWVQ9ACiP2piyzwAihmEmv1hNmaPrNGY3/C980FBE2-BAE5-46EB-A282-7C3B2AC0EA2F.jpeg)

Mine has a vent fan and water cooling, but I don’t yet have anywhere to vent *to*. I’m also going to add air assist to keep the mirrors and lens clear of particulate.

https://youtu.be/jLzYlAZl7-g
