Simple Effective Aquaponics System Build Documentation Mega Post Part #3

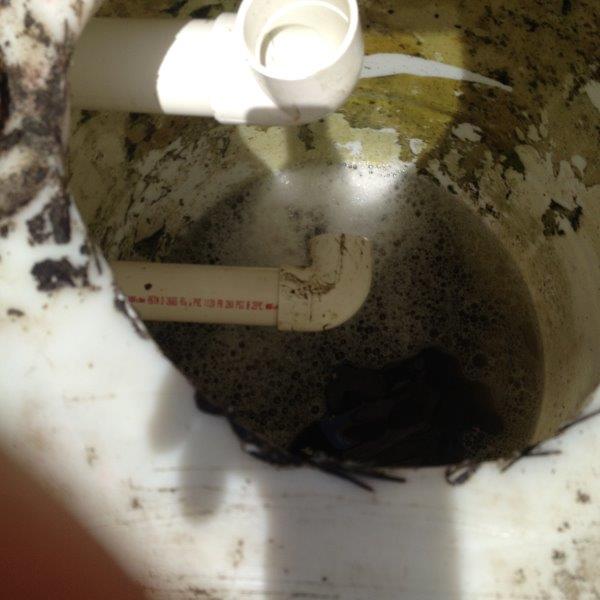

## Good Evening Steemians tonight I wanted to present more build documentation for my aquaponics system.



<center>![IMG_0978.jpg](https://cdn.steemitimages.com/DQmYwUPmvYrKCz9jVEUh9prWYKfhhtU76m55mhvT6irgLyC/IMG_0978.jpg)</center>

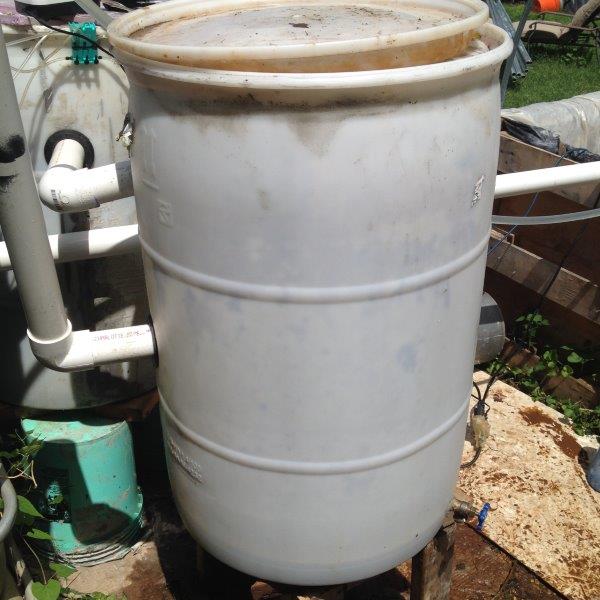

## I had to change out the vortex filter barrel with my rain barrel. I'm using 2" pvc to enter the barrel from 2" uniseals I bought from these folks https://www.aussieglobe.com/ . There is a pipe that leaves toward the biofilter at the top of the barrel and the input from the fish tank at the bottom of the barrel.
<center>![IMG_0977.jpg](https://cdn.steemitimages.com/DQmTZtbmYytiWBcpQvY7WscdvUYVxoMq2bmGKwtKfidXKJJ/IMG_0977.jpg)</center>
## Here is the view from outside of the barrel to show the input and output pipes.
<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>
<center>![IMG_0991.jpg](https://cdn.steemitimages.com/DQmevZmNXUq1fr2bViv2pxLsJqU4rmYt9bG8jFGo7KZMGRS/IMG_0991.jpg)</center>

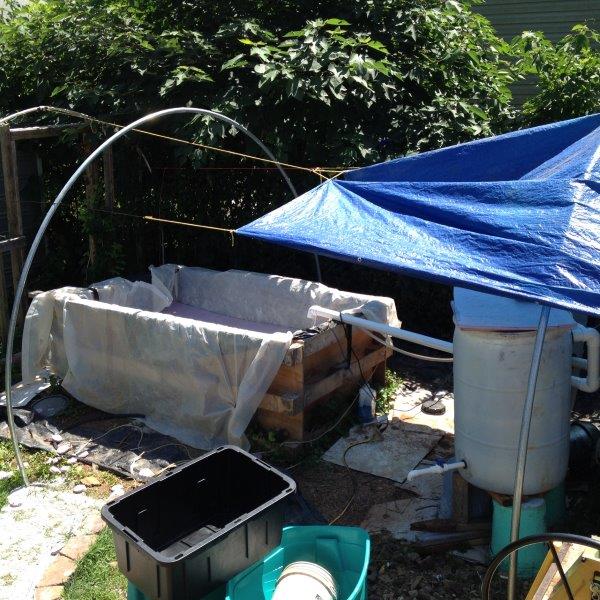

## I also started to create ribs for the greenhouse to prepare for season extension.
<center>![IMG_0993.jpg](https://cdn.steemitimages.com/DQmVqo77HxiSw31ErznJ4JJMtduf6pnAopbY16M3S4vEFUJ/IMG_0993.jpg)</center>

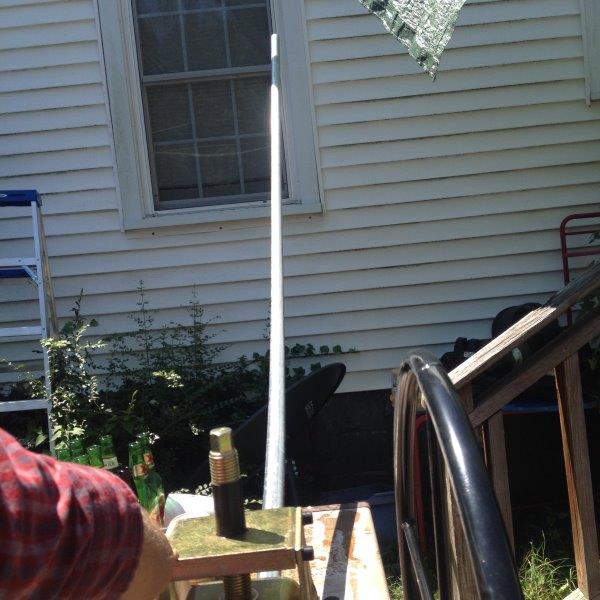

## Using a tube bending machine I bent some 1&3/8"  chain link fence top rail using 1&1/2" rollers. Using a crescent wrench I progressively tightened the screw as making passes with the rollers.

<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>
<center>![IMG_1075.jpg](https://cdn.steemitimages.com/DQmXFp8LefyniCRyHtnxnaQyj5AGeg5qNg8QAL7D9fArLqG/IMG_1075.jpg)</center>

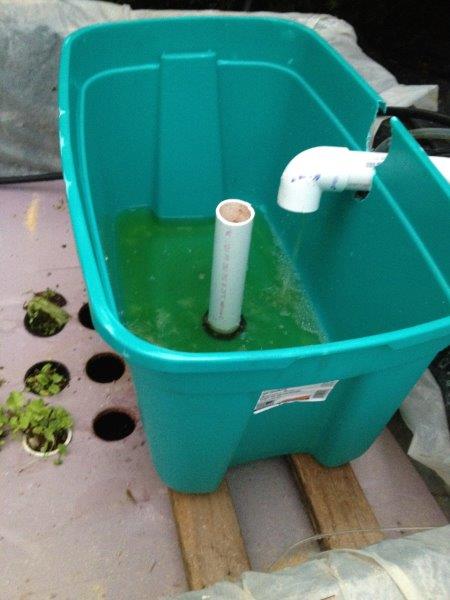

## To create more surface area for bacteria to thrive and filter the water from solids that have escaped the vortex and biological filter. I added this media bed flood and drain system with a 30gallon tote. I put 2x4's on the bottom of the tote to span the sump area and support the tote. I used anthoer 2" uniseal to penetrate the bottom of the tote and inserted a 2" standpipe to keep the water level just below the top of the pea gravel.
<center>![IMG_1077.jpg](https://cdn.steemitimages.com/DQmXDjnZ6y9wx57u6cxpN1KQUiW63UJj3K21ZWUkBDvCRNQ/IMG_1077.jpg)</center>

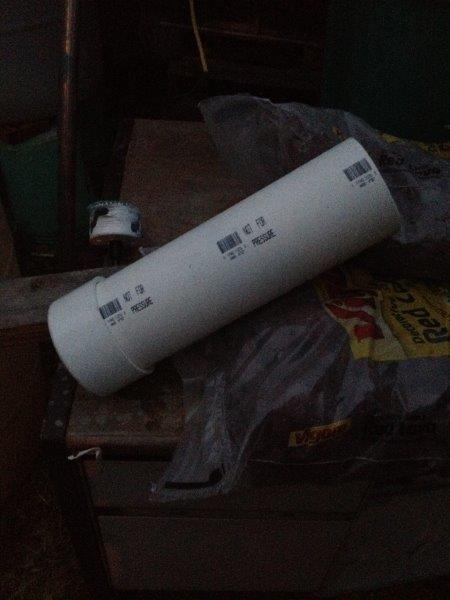

## To create a passive flood and drain you need to create a bell syphon. This is done by creating a pipe with a larger diameter with an end cap to start a differential pressure and begin the syphon. This is a 4" diameter pipe to go with the 2" standpipe.
<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

<center>![IMG_1083.jpg](https://cdn.steemitimages.com/DQmcxUKW8ZTPNVgRbdEoxmiCPJnxvF3wY9MtW2XethpvCxB/IMG_1083.jpg)</center>

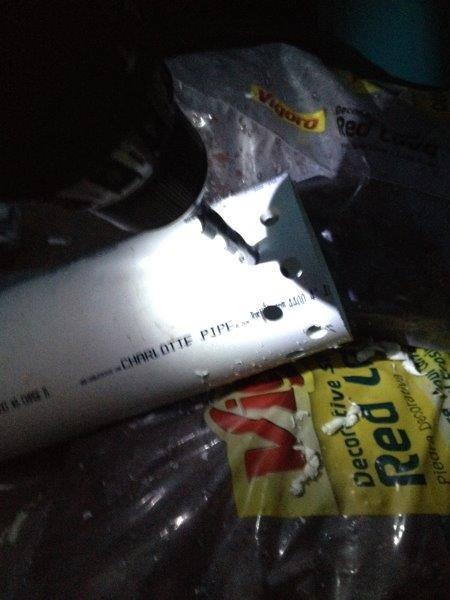

## I drilled 1/2" holes in the bottom of the 4" pipe to allow the water to flow into the bottom and keep a seal up unto these holes where the syphon will be broken.
<center>![IMG_1084.jpg](https://cdn.steemitimages.com/DQmfCMvGi7gZKsZTtxFaEcJ1Z1GHVtjUpWdSdsH671bM5q6/IMG_1084.jpg)</center>

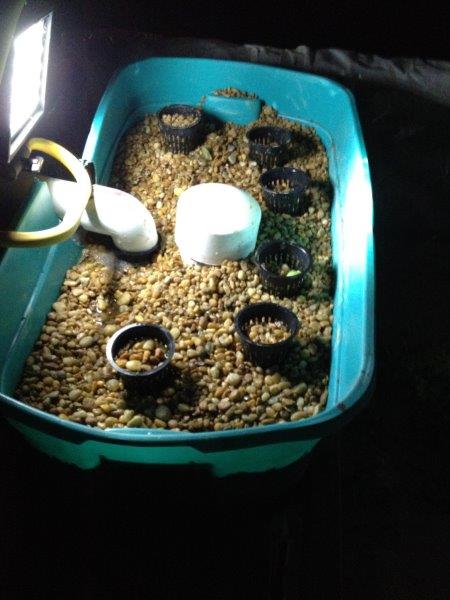

## The bottom of the tote was filled with larger diameter lava rock and the top of the bed with smaller pea gravel. I used 3 .5ft^3 bags of each type of stone to build this bed.
<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

<center>![IMG_1088.jpg](https://cdn.steemitimages.com/DQmccKaNJ8c6dhtWPKgFh7NDz8dJtJy3kNhPmRJygVDfjBF/IMG_1088.jpg)</center>

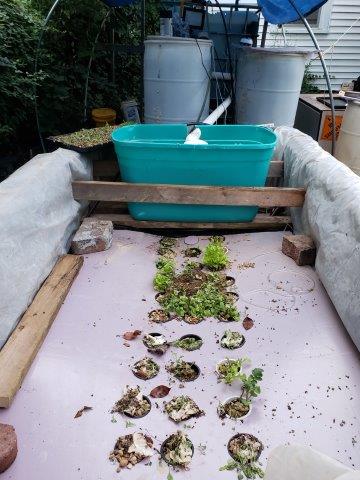

## Here is a picture of the media bed after completion. I added 2 2x4's on both sides of the tote to hold the tote in place and give it structure.

<center>![20180907_185307.jpg](https://cdn.steemitimages.com/DQmXuRbARW1zbL7kJPSbfgJw5MtJTUx7AY8qUQVRhAPqdiW/20180907_185307.jpg)</center>
## Thank you for your time if you gave this a read!
