#### Repository
https://github.com/SubstratumNetwork/SubstratumNode

#### What Will I Learn?
- You will learn essential knowledge about Raspberry Pi and Arch Linux
- You will learn how to install Arch Linux on Raspberry Pi
- You will learn the basic idea of Substratum, the foundation of the decentralized web
- You will learn how to compile Substratum Node on Raspberry Pi
- You will lean how to run and test Substratum Node on Raspberry Pi
- You will learn how to run Substratum Node UI on Raspberry Pi

#### Requirements
- Raspberry Pi 3 Model B
- Compatible charger (5V 2A)
- Micro SD card with a capacity of at least 8 GB
- Personal computer *preferably running Linux*
- (Optional) keyboard, mouse, HDMI cable, monitor, router, heat sinks

#### Difficulty
Intermediate

#### Tutorial Contents
[**Substratum**](https://substratum.net/), *the foundation of the decentralized web*, has received amazing progress after barely 8 months' development. The team is currently working on **SubstratumNode**, **CryptoPay** and a third unannounced project.

Users are now able to locally test the Substratum Node by either installing the [open beta](https://substratum.net/open-beta) or compiling from [source code](https://github.com/SubstratumNetwork/SubstratumNode). At the time of writing (June 10, 2018), the Node is released as version `0.3.2` for *Windows*, *Linux* and *MacOS*,  and the source code is more updated (git commit `379a696`) and may potentially run on more systems.

The Raspberry Pi is a tiny and affordable computer board that can be used for both fun projects and serious computation, such as low cost computation clusters, web hosting servers and crypto miners.

People have been asking questions since last year - *Can Substratum Node run on Raspberry Pi?* The answer is simply **YES**! The Substratum team has shown interest and is actively working on it, especially for testing the decentralization. But if you are like me, who cannot wait for the official support any longer, you can follow this unofficial tutorial to **build Substratum Node on your Raspberry Pi, today**!

<iframe width="560" height="315" src="https://www.youtube.com/embed/_3PPXNcu2vE" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>

*You are reading the FIRST unofficial guide to compile and run Substratum Node on Raspberry Pi!*

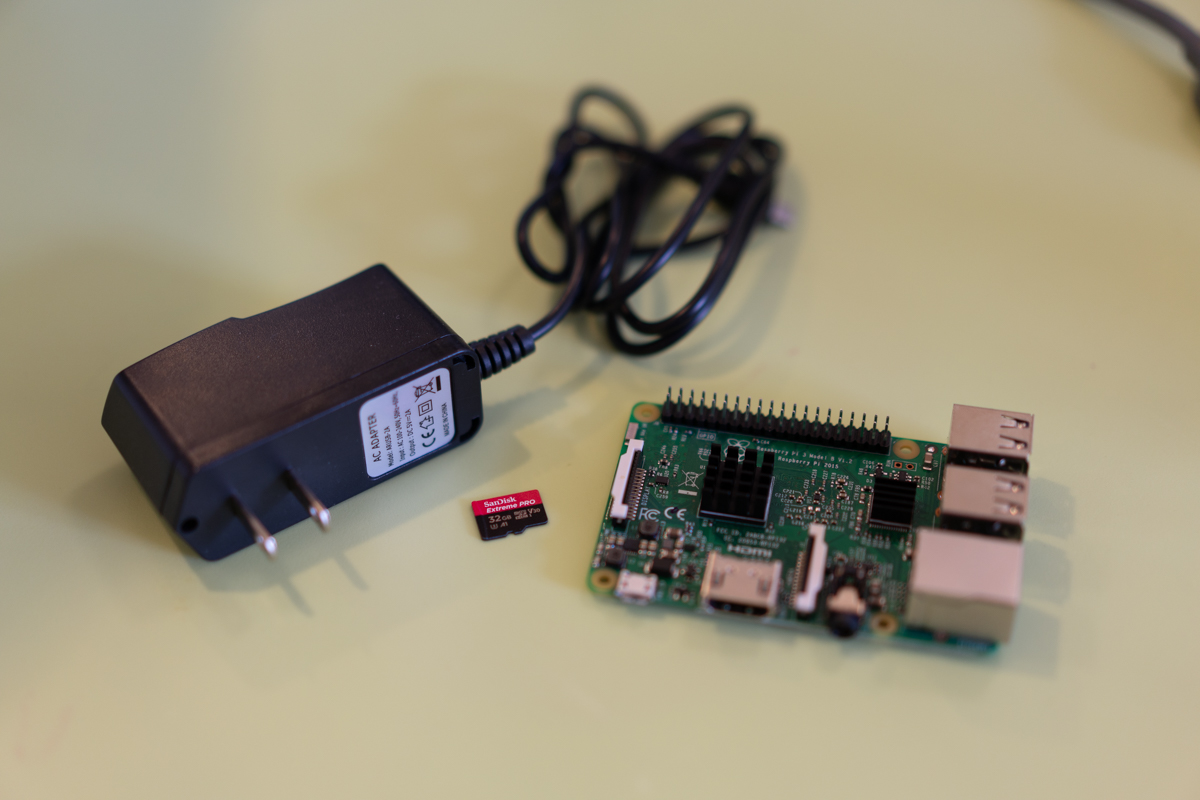

##### 1. What hardware do you need?

![1_pi.jpg](https://cdn.steemitimages.com/DQmTJwbJJdfrXE9yPqKuqoxz1Q9xAoNf7a7HNxRy6CJgFHu/1_pi.jpg)

* **Raspberry Pi 3B**
You need a Raspberry Pi bearing a 64-bit ARMv8 processor, which means Pi 3B or later. However, the newest 3B+ is not recommended, which is not yet supported by the Arch Linux used here.
* **Power cord**
Compatible to the Pi 3B, which is 5V 2A.
* **Micro SD card**
8G+
* **A computer running a Linux**
It will be used to deploy Linux system to an SD card, and to connect to Raspberry Pi via `ssh`. There should be alternative ways to do so under Windows, MacOS, or a virtual machine, which is unfortunately not a focus of this tutorial.
* **Router**
A router that connects to the internet. It can be either wire only, or WIFI only, or both. Note that if it is WIFI only (without any physical ports to be used), you will have to have an HDMI cable, a keyboard and a monitor at hand to setup the WIFI connection.

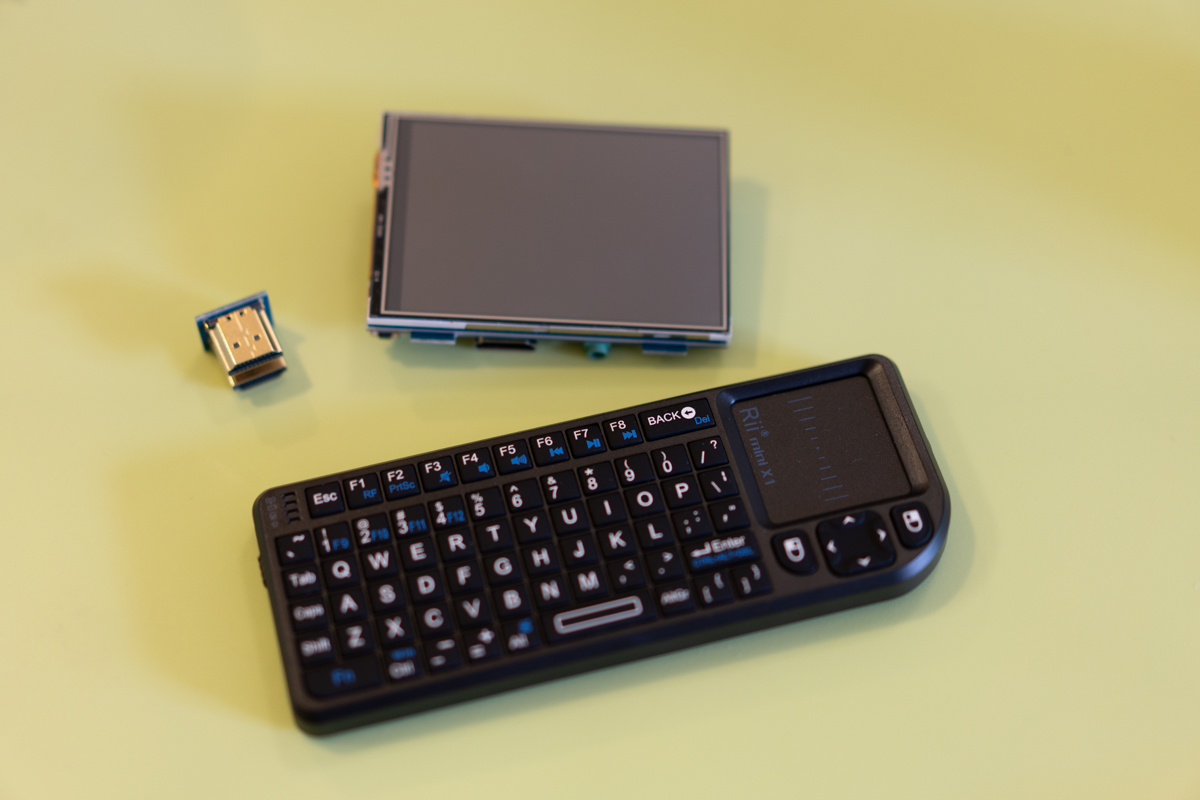

* **Optionally, some fancy stuff**
Use whatever you like to decorate your Raspberry Pi, such as a case, a fan, a wireless mini keyboard, a mini screen, or an LED HAT. I would recommend at least some *heat sinks* for the board.

![2_fancy.jpg](https://cdn.steemitimages.com/DQmb8QX3G1XJaF9YgETeDC4ACaAdtU5ux4CVhS8yF1d6ibc/2_fancy.jpg)

##### 2. Deploy Linux system to SD card
As far as I understand, Substratum Node currently require a 64-bit system to compile and run. **Arch Linux** *(ARM AArch64 version)* may be the best choice to run a Substratum Node on Raspberry Pi. It provides near full support for the 64-bit Pi 3B while most of the other Linux OS's (including the popular Raspbian) either support only 32-bit, or lack critical features in 64-bit, or lack up-to-date packages. It uses a rolling release system to keep every package updated. You will never have to painfully upgrade your system as the major version changes in most Linux distributions. At the time of writing, the latest kernel 4.17 is already available on Arch Linux :)

Now let's begin the journey by deploying Arch Linux (ARM AArch64 version) to your micro SD card.

First, insert SD card into your computer, via a native or USB reader.

Second, follow the AArch64 instruction on [archlinuxarm.org](https://archlinuxarm.org/platforms/armv8/broadcom/raspberry-pi-3), not the ARMv7 one.

The instruction is quite technical, so I'm also including my detailed procedures as text and gif images here.
###### a. Find SD card label, start fdisk, and create two partitions
![1_partition_b.gif](https://cdn.steemitimages.com/DQmRPzLeLPBTEJHicrFWvwUMBoTcx7E274ysDjKtudTBk3d/1_partition_b.gif)

```
lsblk
```
Run this command to list physical drives on your computer, and find the **name of your SD card**. In my case, it's labeled as `mmcblk0`, which is likely different from yours.

Start `fdisk` to work on your SD card.  Please use the specific name of your SD card for the following command.
```
sudo fdisk /dev/mmcblk0
```

As instructed, at the fdisk prompt, do the following:

Type **`o`**. This will clear out any partitions on the drive.

Type **`p`** to list partitions. There should be no partitions left.

Type **`n`**, then **`p`** for primary, **`1`** for the first partition on the drive, press **ENTER** to accept the default first sector, then type **`+100M`** for the last sector.

Type **`t`**, then **`c`** to set the first partition to type W95 FAT32 (LBA).

Type **`n`**, then **`p`** for primary, **`2`** for the second partition on the drive, and then press **ENTER twice** to accept the default first and last sector.

Write the partition table and exit by typing **`w`**.

###### b. Format and mount the two partitions
![2_format_mount_b.gif](https://cdn.steemitimages.com/DQmPqqQ71cmLwwPYcDzCYQeX5EziQ2C85drFxh1LzAmBYyH/2_format_mount_b.gif)
Make sure you use `lsblk` to find the two names for your two new partitions on SD card!
```
lsblk
sudo mkfs.vfat /dev/mmcblk0p1
mkdir boot
sudo mount /dev/mmcblk0p1 boot

lsblk
sudo mkfs.ext4 /dev/mmcblk0p2
mkdir root
sudo mount /dev/mmcblk0p2 root
```

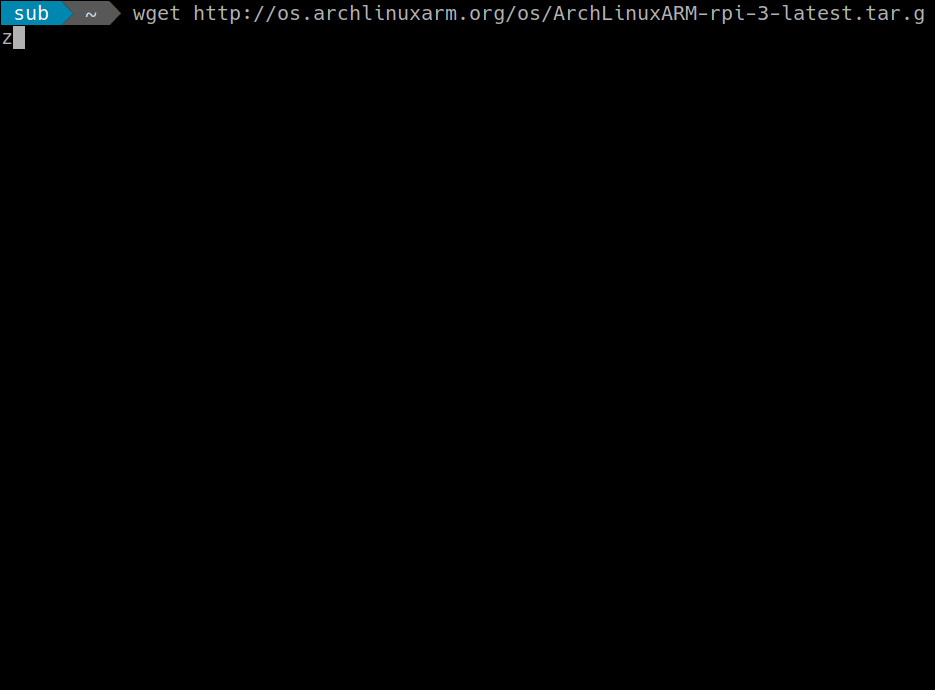

###### c. Download Arch Linux
![3_download.gif](https://cdn.steemitimages.com/DQmT2CihqULsbVPTFoRyEBPYCC8BT5mQXbQHmd5BzcDtXph/3_download.gif)
```
wget http://os.archlinuxarm.org/os/ArchLinuxARM-rpi-3-latest.tar.gz
```

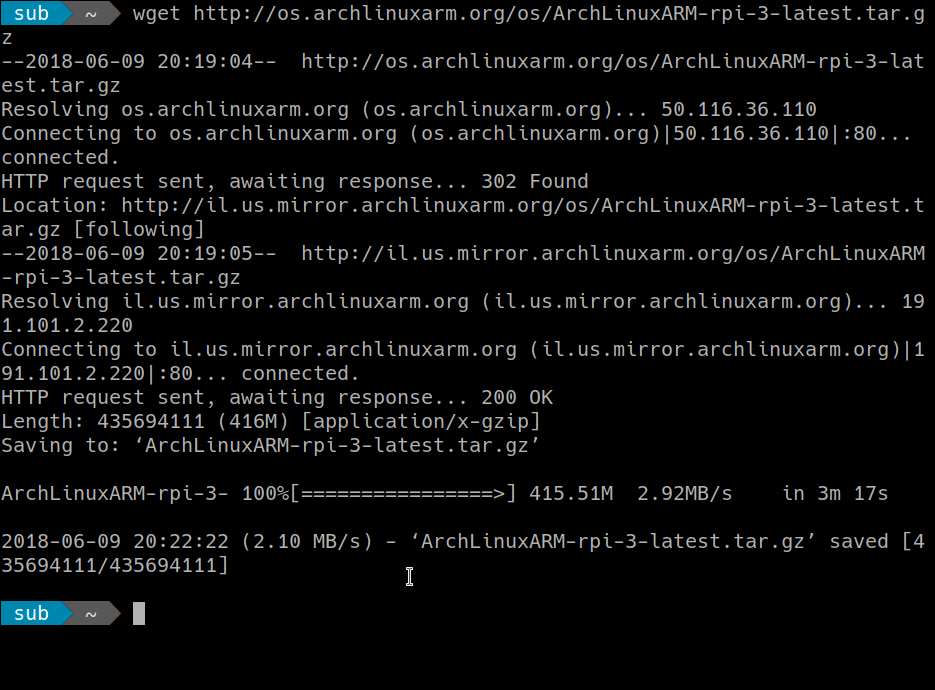

###### d. Extract the filesystem
![4_filesystem.gif](https://cdn.steemitimages.com/DQmY5EhY1C6bzdAgufYuADbaHy4ruXnpsUPverywcQCA4N8/4_filesystem.gif)
From now on, you need to run the commands as root, but not via `sudo`.

Run `su` and enter password to acquire root status.
```
su
```

Then run the following commands to extract the filesystem:
```
bsdtar -xpf ArchLinuxARM-rpi-3-latest.tar.gz -C root
sync
```

###### e. Move, unmount and exit
![5_move_unmount_exit.gif](https://cdn.steemitimages.com/DQmdXoaapSyN1rJtG8GUaqxcWUDSYjHT7zkKafjuw8eQCfq/5_move_unmount_exit.gif)
```
mv root/boot/* boot
umount boot root
exit
```
Yes, `exit` as soon as you don't need root privilege, to be safe :)

##### 3. Get access to your Raspberry Pi
Insert micro SD card to your Raspberry Pi 3B.

Now you have several options before powering it on.
1. Connect your Pi to a monitor via HDMI, and a keyboard (USB or wireless) so you can work on it locally, and connect to the router via cable.
In this case, you are conveniently using Pi as a local computer. Pi is likely able to find itself an IP address and get access to the internet.
The default user is `alarm` with password `alarm`, which stands for `Arch Linux ARM`.
The root user is `root` with password `root`.
You may run `ifconfig` to find your assigned IP address so you can do remote control later.

2. Same as 1 except that you are stuck with WIFI.
Boot up, enter the user name `alarm` and password `alarm`.
Run `su` and enter password `root` to have root privilege.
Run `wifi-menu -o`, select the WIFI you want to connect, enter the password.
To enable WIFI for every boot, do the following:
Run `cd /etc/netctl/` and `ls`, find the name of your WIFI connect point, for example `wlan0-WIFI`.
Run `netctl enable wlan0-WIFI`.
From now on, your Pi automatically connects to WIFI every time it boots up, and you may be able to remove the monitor and keyboard from Pi since you may be able to remotely `ssh` to it.
Again, you can run `ifconfig` to find your assigned IP address.
And don't forget to `exit` root privilege fast.

3. No monitor or keyboard for Pi. You will have to connect your Pi to the router via a cable. At the same time, your computer is also connected to the router via either cable or WIFI.
If you know the IP address of your Pi, for example `192.168.1.9`, then run `ssh alarm@192.168.1.9` on your computer to remotely control Pi.
But what is the exact IP address of the Pi? Pi will likely be assigned an IP address by the router, usually in the form of `192.168.1.X`. `X` is unknown, you can find it out by using a monitor and keyboard on Pi and running `ifconfig`, or you can guess it out by trying `X = 2, 3, 4, 5 ...` around. You will figure it out eventually.

![6_connect.gif](https://cdn.steemitimages.com/DQmZ5TBrtLyqDkffspuNmpWwGpSyGuCMmSq7zSrC1Jt4b4o/6_connect.gif)

##### 4. Essential configuration
Login as user `alarm` (password `alarm`), either locally or by `ssh` from another computer.
Several configuration is needed for your newly installed Arch Linux on raspberry Pi.

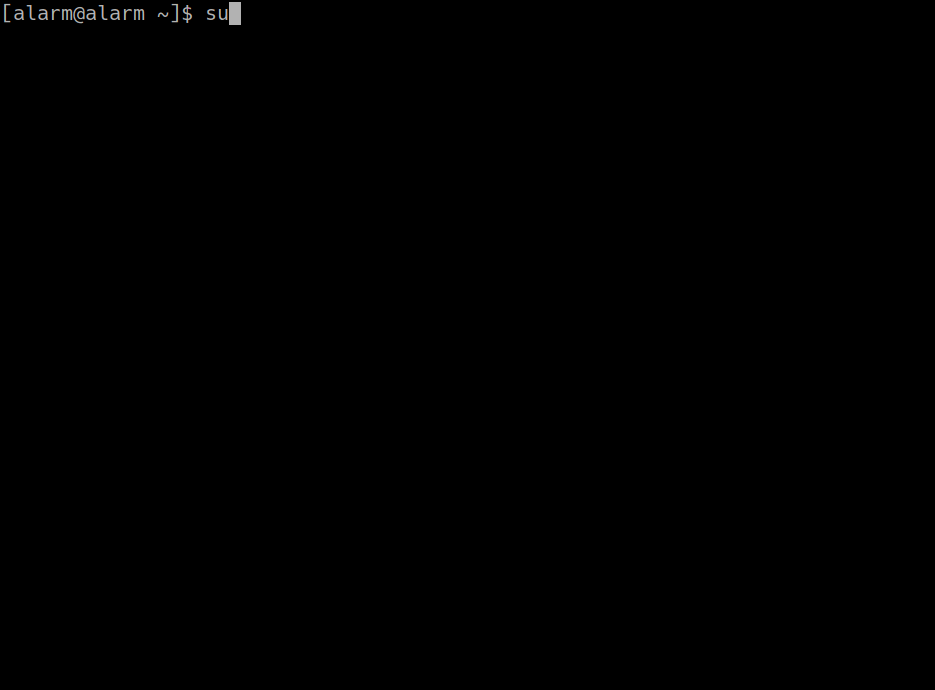

First you need to run `su` and enter password `root` to acquire root privilege. `sudo` is not available yet.
```
su
```

Second, Initialize the pacman keyring and populate the Arch Linux ARM package signing keys, per Arch Linux ARM instruction.
```
pacman-key --init
pacman-key --populate archlinuxarm
```
![7_keyring.gif](https://cdn.steemitimages.com/DQmcNbd1JxyEAmjv9yMZiZcPkmGJUAcWYvwKfQ8eT7yAhTy/7_keyring.gif)

Third, install `sudo`
```
pacman -S sudo
```

Fourth, allow `sudo`
```
EDITOR=nano visudo
```
You are now reading the text via nano editor. Find the line `# %wheel ALL=(ALL) ALL`. Delete the `#` at the line head. `Ctrl+O` to save the file. `Ctrl+X` to exit the editor.

Now you can quit the risky root account, and go back to the normal account `alarm`.
```
exit
```

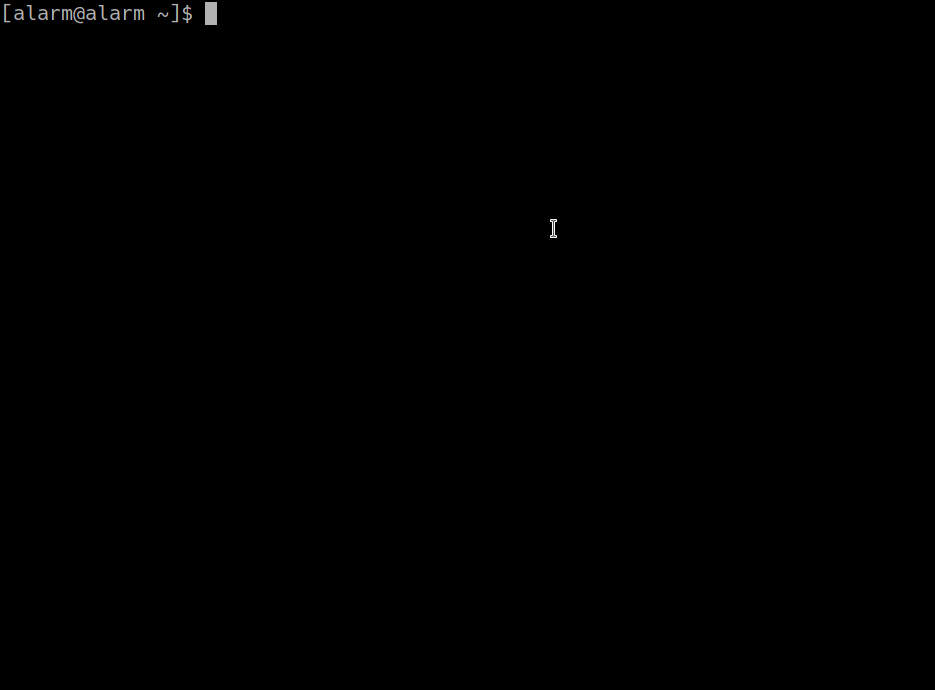

From now on, you can run `sudo` in user `alarm`. So, let's update the system.
```
sudo pacman -Syu
```
Yes, this is the first time you run `sudo` in this system. You get a friendly warning :) You will likely have a Linux kernel 4.17.0+. That's much newer than any other Pi system you can find, Hooray!

![8_sudo.gif](https://cdn.steemitimages.com/DQmVMAnAH1ydG1MUjEFJz1Skr9u83HoLHZrfDmjdScMjK5W/8_sudo.gif)

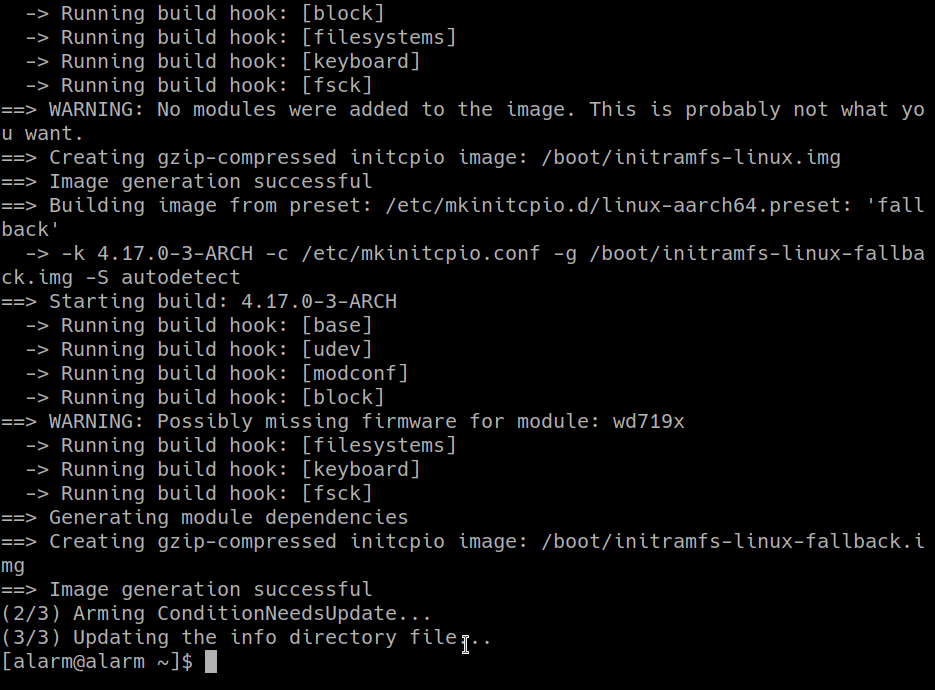

Reboot.
```
sudo reboot now
```

![9_reboot.gif](https://cdn.steemitimages.com/DQmWNz5aLMDvKSetWZLQH7gr4NUQP9LNSxwaADFPnAw7aL4/9_reboot.gif)

##### 5. Development requirements
Again, log in as user `alarm`. Never ever use `root`.
Let's install some essential development packages for Substratum Node. `git` and `rust` are required. To be safe, also install the `base-devel` bundle.
###### a. Install `git` and `base-devel`
```
sudo pacman -S git base-devel
```
Note you need to press `ENTER` to make the default selection of all packages in `base-devel`.

![10_dev_env.gif](https://cdn.steemitimages.com/DQmVFUzBiCAzSSkdQFFSQK6j1jLBWLs2H5vpddaX3YgZwZf/10_dev_env.gif)

###### b. Install `rust`
```
curl https://sh.rustup.rs -sSf | sh -s -- --default-toolchain 1.25.0
```
At the time of writing, the default stable version `1.26.2` generates warning messages `'+fp' is not a recognized feature for this target (ignoring feature)` during compilation. So stick with `1.25.0` for now.

![11_rust.gif](https://cdn.steemitimages.com/DQmfPYWUHNbWNTA4ksFp348efNNPQFFXwa4KzGBFwKU3poc/11_rust.gif)

##### 6. Compile Node
Let's do it!

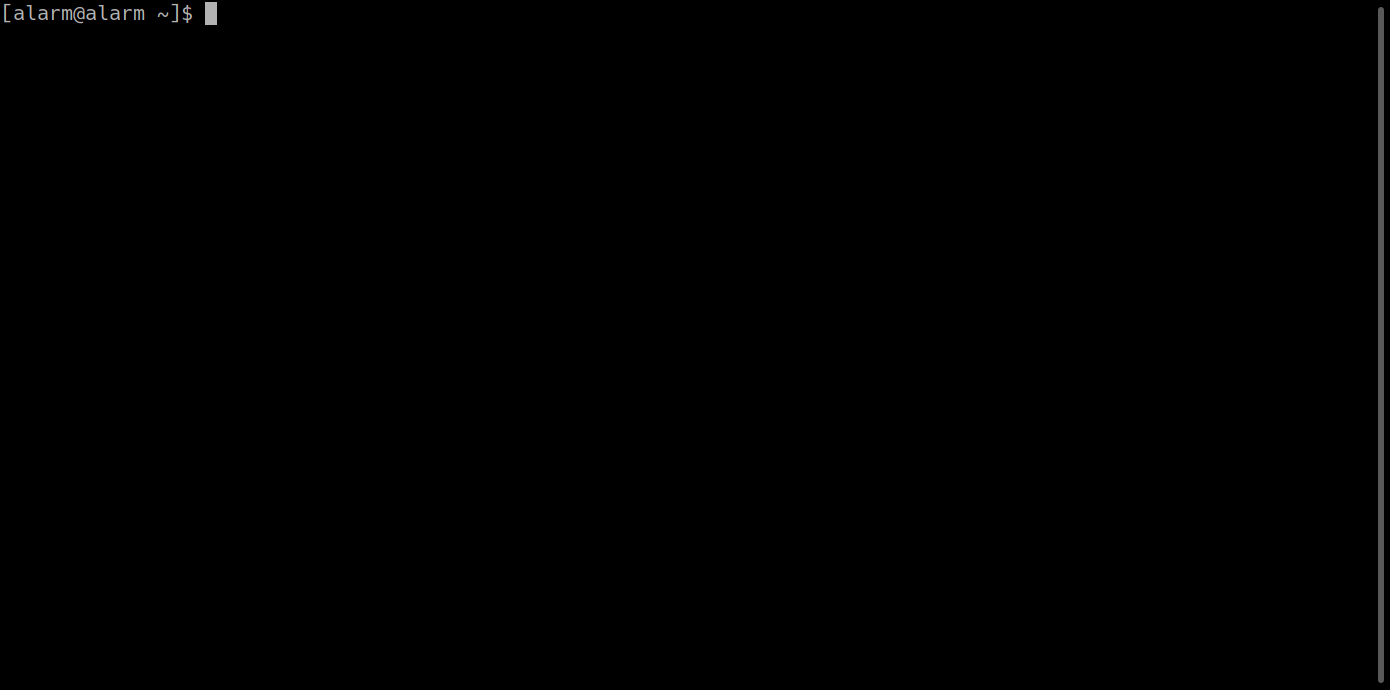

Download the source code
```
git clone https://github.com/SubstratumNetwork/SubstratumNode.git
```

Get into the directory
```
cd SubstratumNode
```

![12_git.gif](https://cdn.steemitimages.com/DQmZGCr6cf89eEg8bFRapeQQGgJFDTFk1bUxZDe22qwi7gQ/12_git.gif)

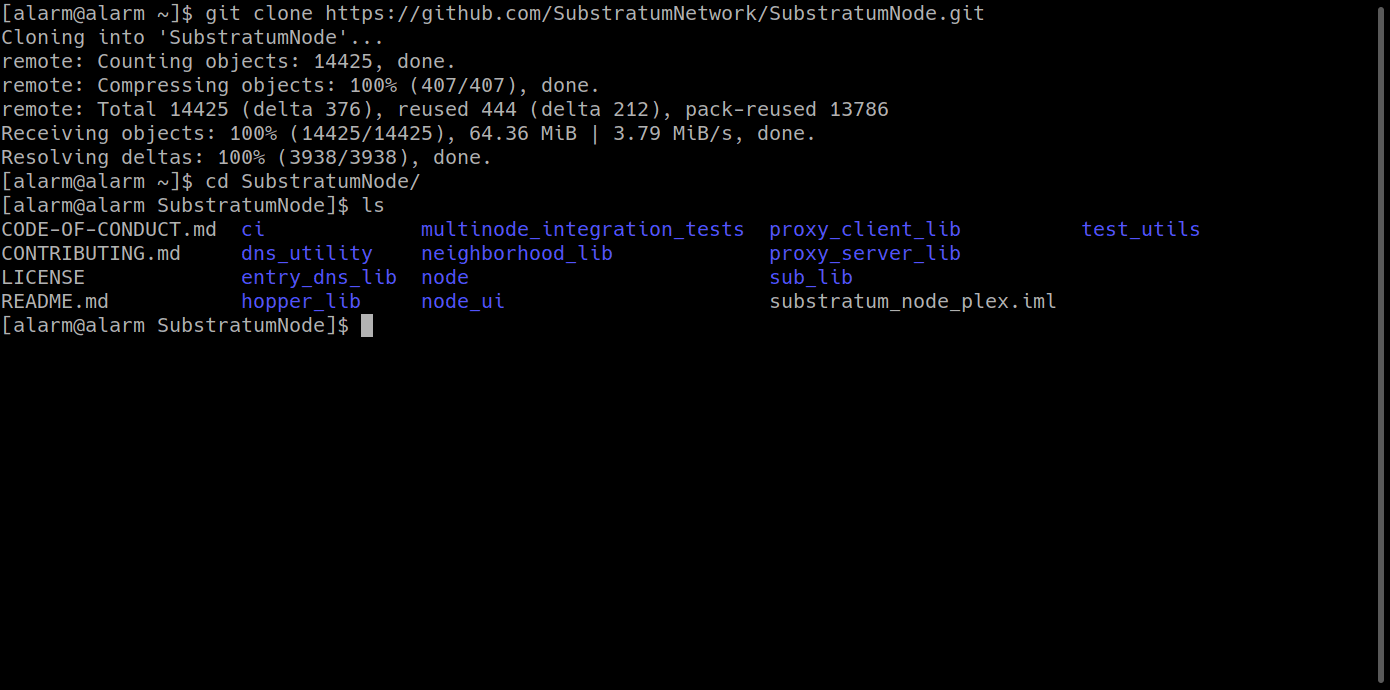

Check out the commit corresponding to version 0.3.2 (commit `f4e63f2` on May 30, 2018). I haven't fully test the newer commits. They may contain some Pi-specific bugs.
```
git checkout f4e63f2
```

Edit the compilation file
```
nano ci/all.sh
```
Add `#` to each of the two lines involving `sccache`, as following:
```
#cargo install sccache || echo "Skipping sccache installation"  # Should do significant work only once
#export RUSTC_WRAPPER=sccache
```
`Ctrl+O` save, and `Ctrl+X` exit.
The reason for this procedure is that `sccache` compilation currently fails in Pi system, for some unknown reason. It doesn't affect our compiled Node. The compilation is just slower without `sccache`.

![13_compile_part1.gif](https://cdn.steemitimages.com/DQmQ1xva66A2UYdNZe4SypKV3AgNQyjxDwxxQFVzk2bZQxn/13_compile_part1.gif)

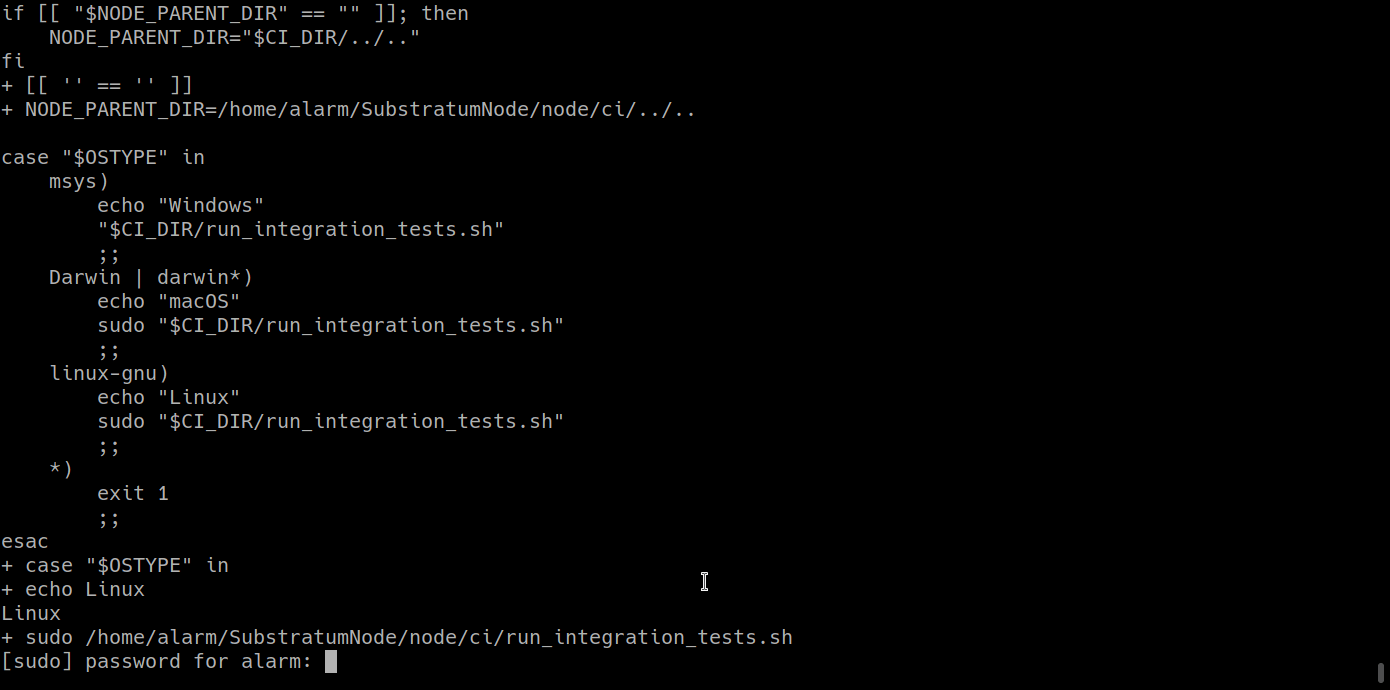

The compilation is supposed to be done sequentially for TEST_UTILS, SUB_LIB, ENTRY_DNS, NEIGHBORHOOD, HOPPER, PROXY SERVER, PROXY CLIENT, NODE, DNS UTILITY and NODE UI. However, it will stop once NODE is compiled.
It asks for a password before running the integration test (`run_integration_tests.sh`). Once you enter the password, it will continue but immediately complain an error `no default toolchain configured`.

![14_compile_part2.gif](https://cdn.steemitimages.com/DQmd4Nn6rfF6myBAK5BugaKyhPDZPtpYzsLy8PPJ4mireKu/14_compile_part2.gif)

No worries! NODE is already compiled at this stage. And all components have passed all tests, except the Node integration test due to lack of toolchains.

##### 7. Test Node
Let's see if Substratum Node (without UI) can route network traffic on a Raspberry Pi.

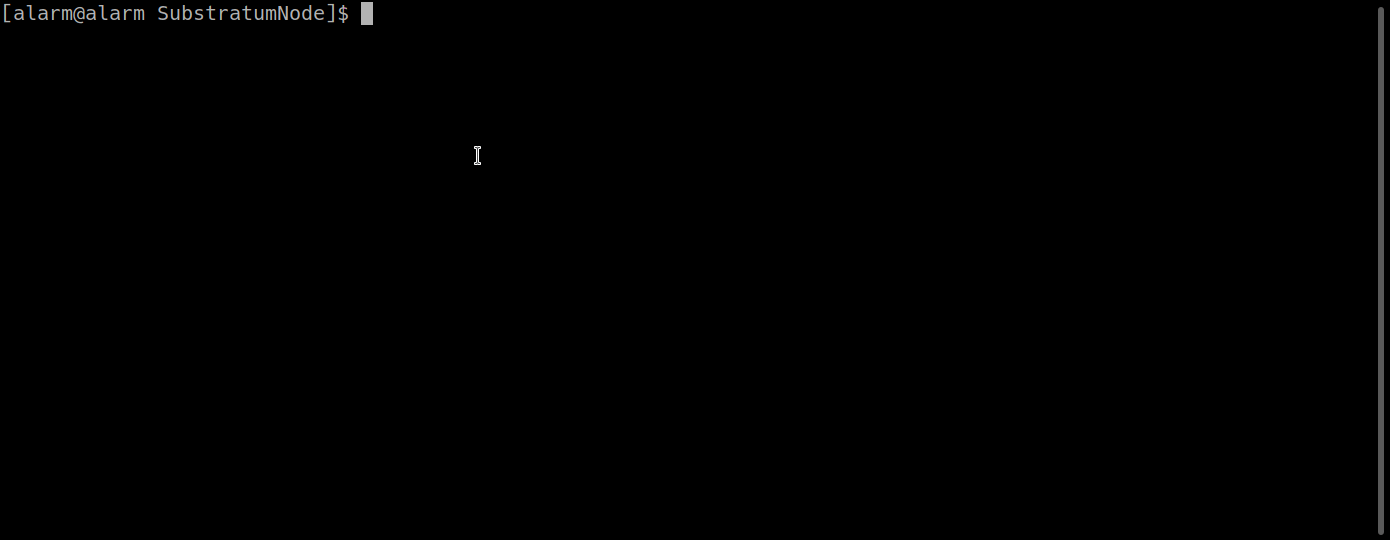

###### a. Install browser `lynx` that runs in terminal
```
sudo pacman -S lynx
```
You can view Google in a terminal by running `lynx google.com`. Cool, right?

![15_lynx.gif](https://cdn.steemitimages.com/DQmQB1vAKQ65dJkrneHtA8Xj5HhsX4FzmsWExTW8qJHHopR/15_lynx.gif)

###### b. Set DNS to localhost `127.0.0.1`
Substratum Node does the magic once you set your DNS address to your localhost `127.0.0.1`, but how do we do it in Raspberry Pi?

Use `getent` to see current DNS is working
```
getent hosts google.com
```

`netstat` lists opened ports in your system
```
netstat -lntup
```
You see the port `53` in use? You heard something very bad about this [53](https://github.com/SubstratumNetwork/SubstratumNode/blob/master/node/docs/PORT_53.md) port from [Dan Wiebe](https://twitter.com/dnwiebe), the Wizard? Don't panic! Not an issue in Arch Linux. Run the following command
```
sudo systemctl stop systemd-resolved
```
and you will see the `53` port is gone.
```
netstat -lntup
```

Now you need to edit `resolv.conf`
```
sudo nano /etc/resolv.conf
```
Change the IP address to `127.0.0.1`, `Ctrl+O` save, and `Ctl+X` exit.

Check if your system can still resolve `google.com`
```
getent hosts google.com
```
No, it cannot anymore. Your DNS is now truly relying on itself `127.0.0.1`.

![16_dns.gif](https://cdn.steemitimages.com/DQmbP3DD2wAsa9RpU1bTFFw9PaK8dRGofnoHHmXknAGRyvt/16_dns.gif)

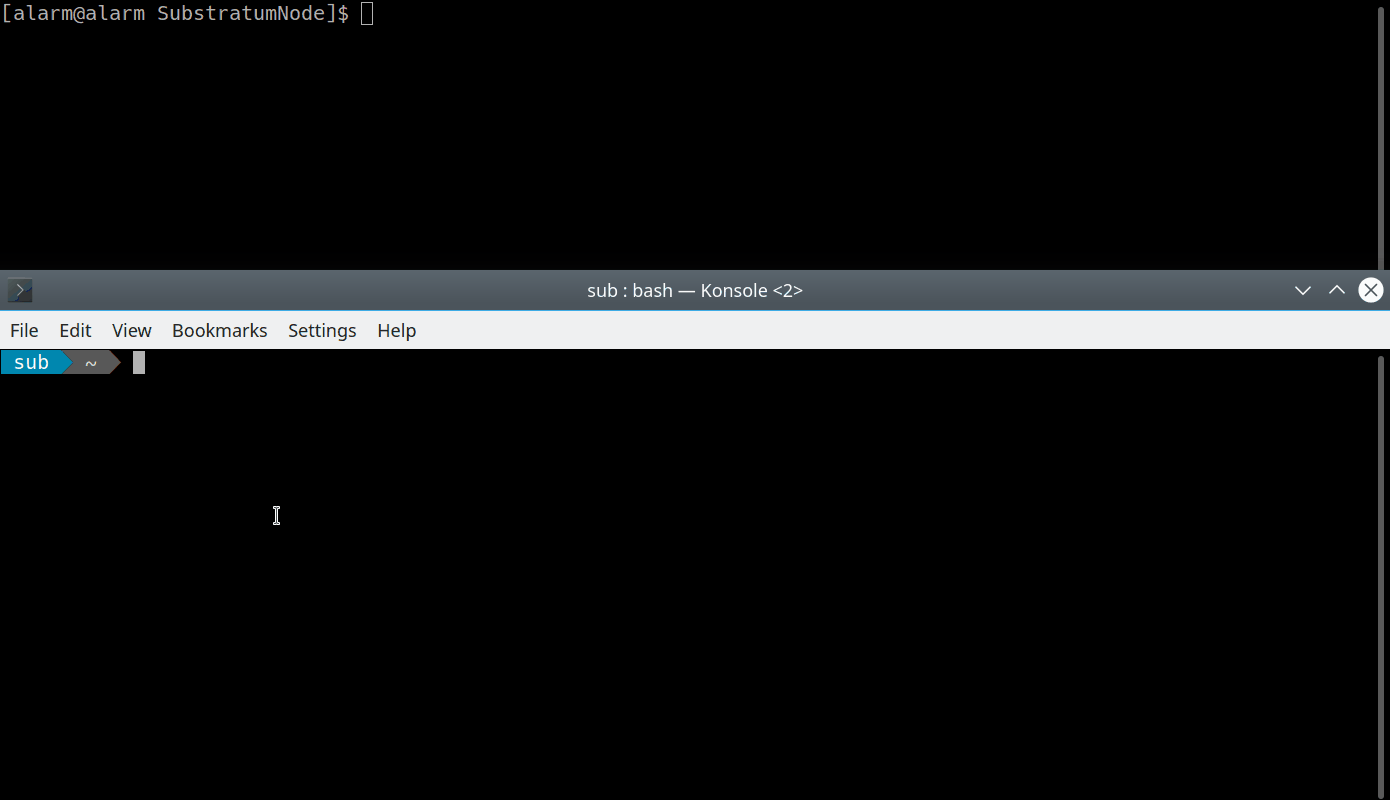

###### c. Test Node
Let's open two terminals to test, one for Node, one for browser
```
(on Terminal 1)
lynx httpbin.org
```
Right, you cannot view `httpbin.org` since the browser cannot get the IP address from DNS, yet.
Run Node on the second terminal.
```
(on Terminal 2)
sudo node/target/release/SubstratumNode --dns_servers 1.1.1.1
```
Great, no error message! Try `lynx` on Terminal 1 again.
```
(on Terminal 1)
lynx httpbin.org
```

![17_node.gif](https://cdn.steemitimages.com/DQmaeHMs2BUn7p3wAMbdmvR58ZQEdm6zK4MEMoKgjSYBKtw/17_node.gif)

Did it work? It worked for me :)

You may kill Node by `Ctrl+C`.

**To this point, congratulations, you have a Substratum Node running smoothly on your Raspberry Pi!**

**Yes, it is concrete proof that Substratum Node 0.3.2 runs on a Raspberry Pi 3B.**

However, if you want something fancy, like UI, move on.

##### 8. Compile DNS_UTILITY
The previous compilation stopped before the integration test for NODE, so of course DNS_UTILITY is not compiled yet, as well as NODE UI.

First of all, we need to restore our DNS since we still need internet for the rest compilations.
```
sudo systemctl start systemd-resolved
```

To avoid re-compilation of the compiled components, we need to edit the `ci/all.sh` again, to comment out the code related to the compiled components (TEST_UTILS, SUB_LIB, ENTRY_DNS, NEIGHBORHOOD, HOPPER, PROXY SERVER, PROXY CLIENT, NODE).
```
cd ~/SubstratumNode
nano ci/all.sh
```
Basically, append `#` at the head of each corresponding line. Two lines for each component. The following is the example for ENTRY_DNS.
```
#cd "$CI_DIR/../entry_dns_lib"
#ci/all.sh
```
`Ctrl+O` save, `Ctrl+X` exit.

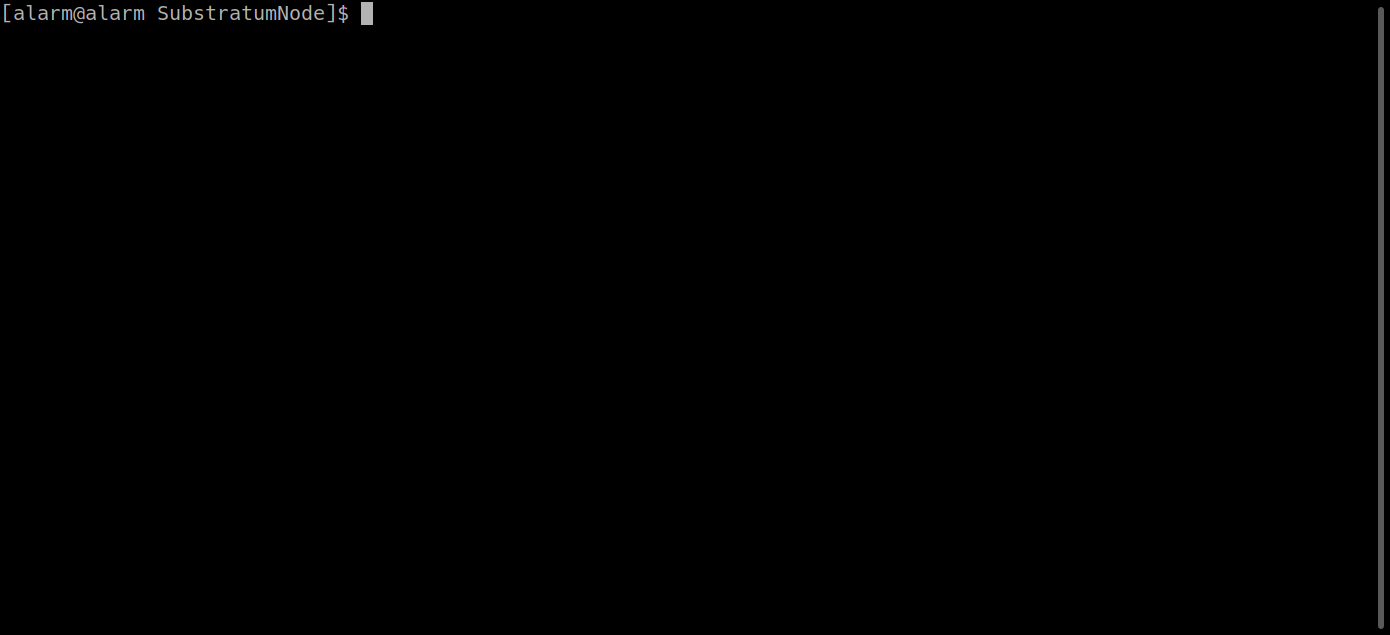

Start the compilation of DNS_UTILITY
```
ci/all.sh
```

![18_dns_utility_part1.gif](https://cdn.steemitimages.com/DQmQSAm2wDkPSyFi9EZRaU44yKS6dWhouoviNHnFDKzpNCp/18_dns_utility_part1.gif)

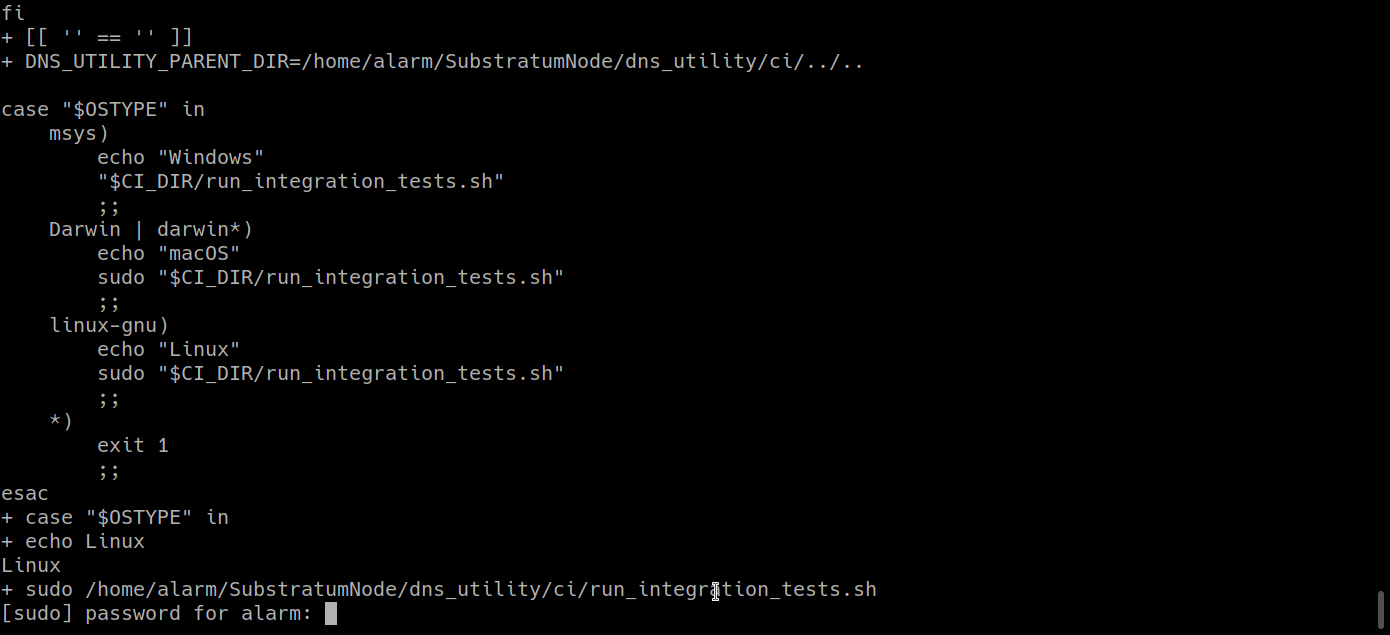

Just like NODE, the DNS_UTILITY may face the same fail in integration test. But it's perfectly fine. You have DNS_UTILITY compiled.

![19_dns_utility_part2.gif](https://cdn.steemitimages.com/DQmZiArWDRjPsefkkKsYJJcFbXjgDaV7ZDMGs8f87bL28E4/19_dns_utility_part2.gif)

##### 9. Compile NODE_UI

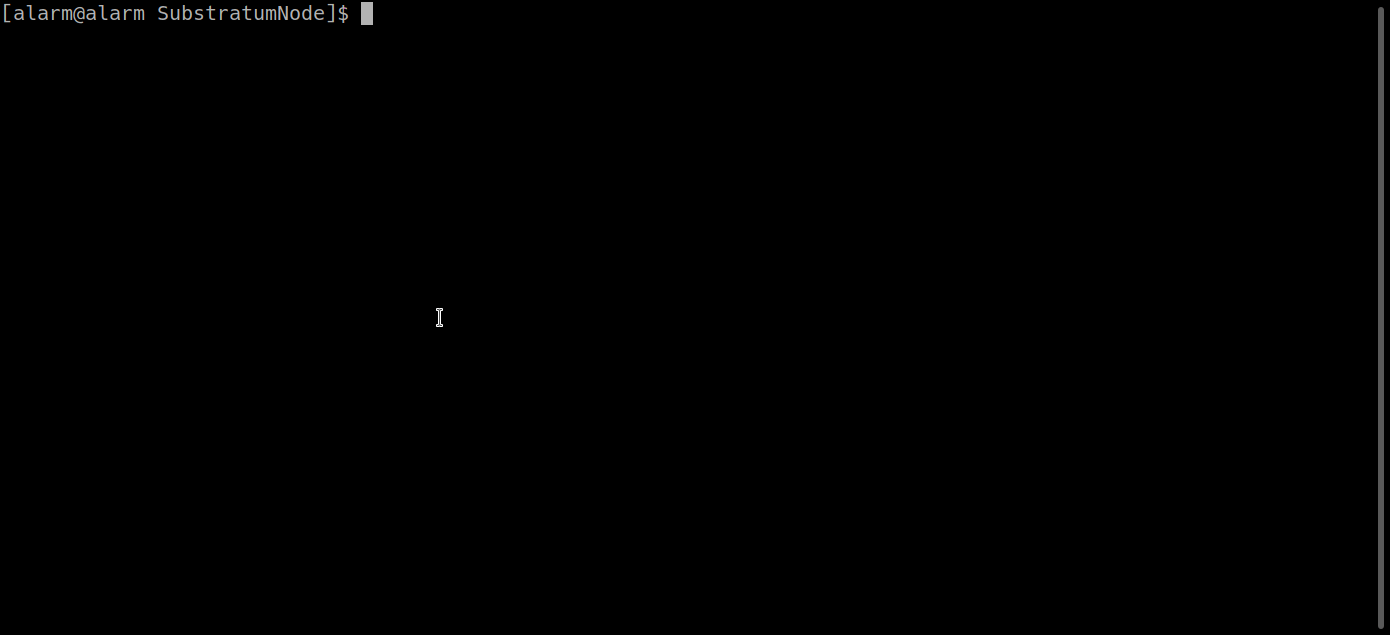

You need some additional packages for UI compilation.
```
sudo pacman -S yarn gconf
```

![20_ui_part1.gif](https://cdn.steemitimages.com/DQmYaUhGxpb2jwF92rAM7nZZYRDk85izdRMW5JjrLDFFiFU/20_ui_part1.gif)

Again, need to edit compilation file.
```
nano ci/all.sh
```
Comment out the two lines corresponding to DNS_UTILITY to avoid recompilation.
```
#cd "$CI_DIR/../dns_utility"
#ci/all.sh "$PARENT_DIR"
```
`Ctrl+O` save, `Ctrl+X` exit.

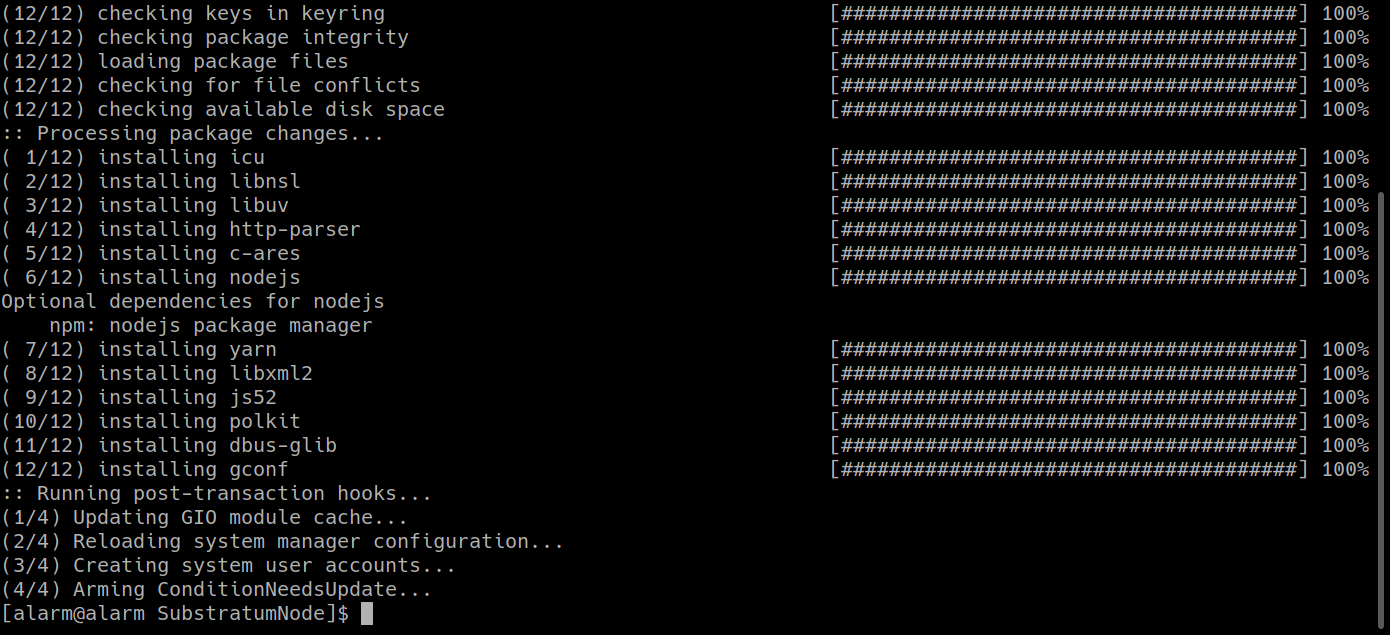

Run the final compilation!
```
ci/all.sh
```

![21_ui_part2.gif](https://cdn.steemitimages.com/DQmf1DKguC6ay92aJYn6k5VodPzpgo5sdbpBNWgGjMPRZYS/21_ui_part2.gif)

Patience results in an error message during test: `Application launch Error: ChromeDriver did not start within 5000ms`. Don't panic! You already have your NODE_UI compiled. The test didn't work in terminal.

##### 10. Install X Window system and requirements for Node UI
On terminal, install Xorg, Wayland, Xfce and Chromium
```
sudo pacman -S xorg-server weston xfce4 xfce4-goodies chromium
```

Shutdown
```
sudo shutdown now
```

Connect Pi to monitor via HDMI, and a keyboard, and a mouse. Boot up. Login to user `alarm`.
Still no X Window? Don't panic!
```
startxfce4
```
You can use your mouse now!

Let's open up a terminal emulator and run Node UI!
```
cd ~/SubstratumNode/node_ui
sudo yarn start
```

Congratulations to you if you are currently at this step! Enjoy!

![3_boot.jpg](https://cdn.steemitimages.com/DQmRPf1jwcB2GKF2fN294e84vXrjnwPHiNBsAquNz7srmZp/3_boot.jpg)

![4_xfce.jpg](https://cdn.steemitimages.com/DQmSVuvDEtiZ9KknTcnnzXYdnCG9VqzLdc88W459PCfdKsQ/4_xfce.jpg)

![5_node.jpg](https://cdn.steemitimages.com/DQmbaSdkGgW46Uuj1YRfJfTDWPhBLrk2T4zGfoYrGceh1ws/5_node.jpg)

An important note, you cannot earn Substrate yet by running a Substratum Node. Decentralization (neighborhood) will be implemented in version 0.4.0, and Monetization comes in version 0.5.0 with which you can start the earning.

#### Related
You may find a Chinese translation of this tutorial here: [如何在树莓派上编译和运行Substratum Node](https://steemit.com/substratum/@microoo/substratum-node).
And the previous kick-start [post](https://steemit.com/substratum/@microoo/how-to-run-substratum-node-on-raspberry-pi).


#### Credits
[Substratum Network](https://substratum.net), [Arch Linux ARM](https://archlinuxarm.org) and [Raspberry Pi](https://www.raspberrypi.org)

#### Proof of Work Done
https://github.com/humicro/Hitchhikers_Guide_to_Substratum_Node_on_Raspberry_Pi
