Computation Contest #3 Results and Solution
## Solution
The problem of this contest was to solve the differential equation for the pendulum numerically:
![Screenshot from 2019-10-27 20-41-05.png](https://steemitimages.com/p/NTy4GV6ooFRkjTArCrebYc2WCCmX2KY4SfTbUDpHWg6ZYFw3fVLSy85oBpn4KwL2NVjPYpfEfpmp8KnMiW8jBBfsXmBbdPnJuefxyKZXsbekFnBLpfB3P3ei3rgoaXKSAq5FYARi6HGBL2iW64C5ARCVcdzVGwpYGS4AHDgr?format=match&mode=fit&width=640)

I implemented an example solution in java which also plots a graph of the angle of the pendulum for the both solutions:
```
import javax.swing.JFrame;
import java.awt.Color;
import java.awt.Graphics;
import java.util.ArrayList;

public class main extends JFrame {
	ArrayList<Double> valuesToGraph = new ArrayList<>();
	public static int num = 0;
	public main(double c, boolean visible) {
		this.c = c;
		num = 0;
		setSize(1600, 800);
		setUndecorated(true);
		setVisible(visible);

		long t0 = System.currentTimeMillis() + 20;
		while(running) {
			try{Thread.sleep(t0 - System.currentTimeMillis());} catch(Exception e) {e.printStackTrace();}
			t0 += 20;
			update();
		}
		// Make sure not to waste resources on not visible frames.
		if(!visible)
			dispose();
		else {
			for(int i = valuesToGraph.size(); i < 1600; i++) {
				update(); // Make sure to draw the full image.
			}
			repaint();
		}
	}
	double dt = 0.0001;
	double phi = 0;
	double omega = 2*Math.PI;
	double c;
	double g = 9.80665;
	double l = 1;
	boolean running = true;
	public void update() {
		for(int i = 0; i < 100; i++) {
			// Perform one iteration of the Differential Equation
			double alpha = -c*omega - g/l*Math.sin(phi);
			omega += alpha*dt;
			phi += omega*dt;
			// Make sure phi stays within ±π to make the graph look better:
			if(phi > Math.PI) {
				phi -= Math.PI*2;
				num++;
			}
			if(phi < -Math.PI) {
				phi += Math.PI*2;
				num++;
			}

			// Stop the program when the pendulum changes direction:
			if(omega < 0) {
				running = false;
			}
		}
		valuesToGraph.add(phi); // Only add every 100th value to the output.
	}
	public void paint(Graphics gr) {
		// Paint it:
		gr.fillRect(0, 0, 1600, 800);
		gr.setColor(Color.WHITE);
		for(int i = 1; i < valuesToGraph.size(); i++) {
			gr.drawLine(i-1, 400-(int)(valuesToGraph.get(i-1)*400/Math.PI), i, 400-(int)(valuesToGraph.get(i)*400/Math.PI));
		}
	}

	public static void main(String[] args) {
		double c0 = 0.01;
		new main(c0, true);
		System.out.println("Number of swings around = " + num);
		if(num == 3)
			System.out.println("c₁ = " + c0); // A solution is already found.
		if(num < 3) { // Slowly reduce c:
			while(num != 3) {
				c0 *= 0.9;
				new main(c0, false);
			}
			new main(c0, true);
			System.out.println("c₁ = " + c0);
		}
		if(num > 3) { // Slowly increase c:
			while(num != 3) {
				c0 *= 1.1;
				new main(c0, false);
			}
			new main(c0, true);
			System.out.println("c₁ = " + c0);
		}
	}
}
```
This prints out:
```
Number of swings around = 3
c₁ = 0.0018530201888518425
```

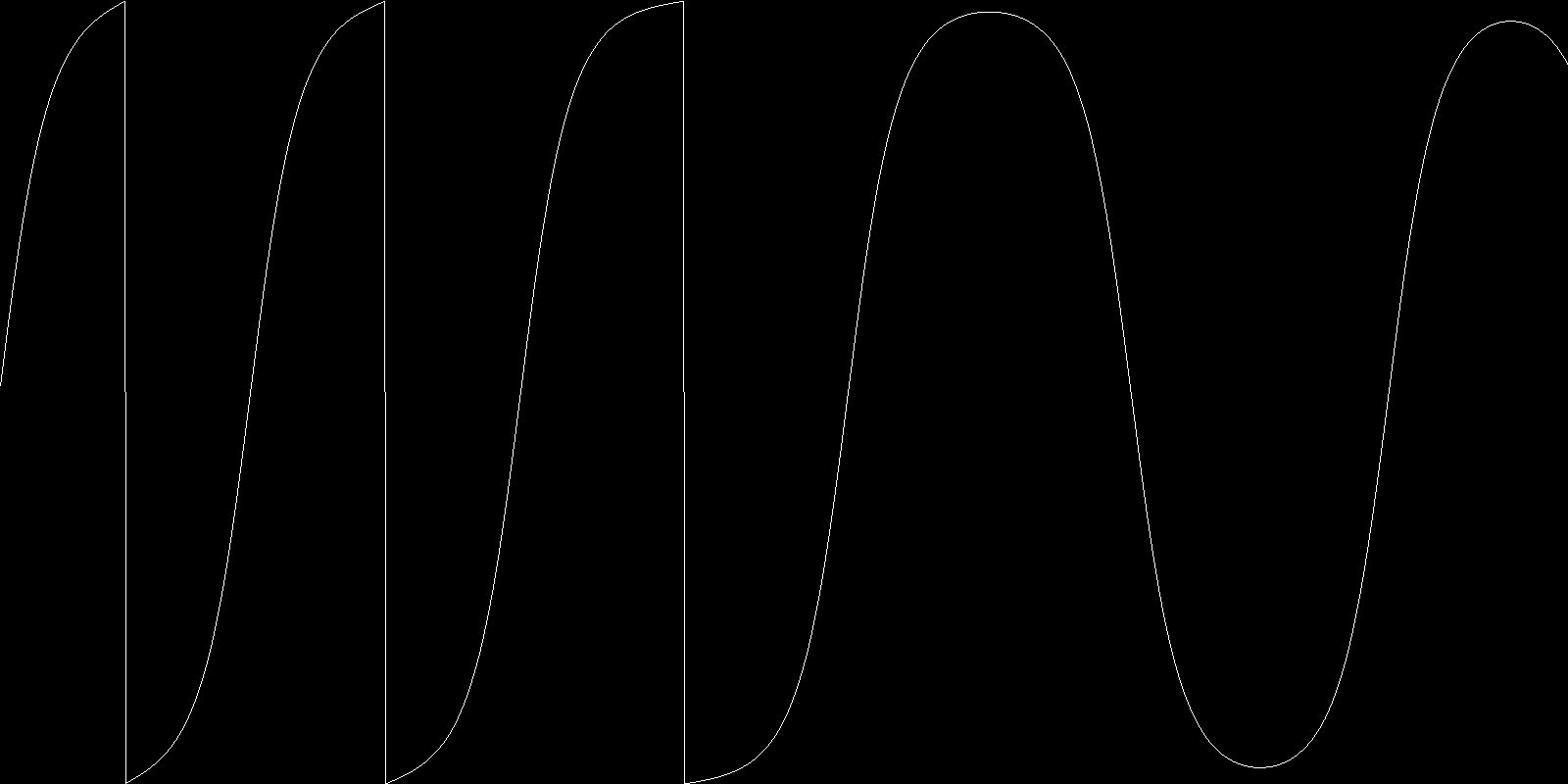

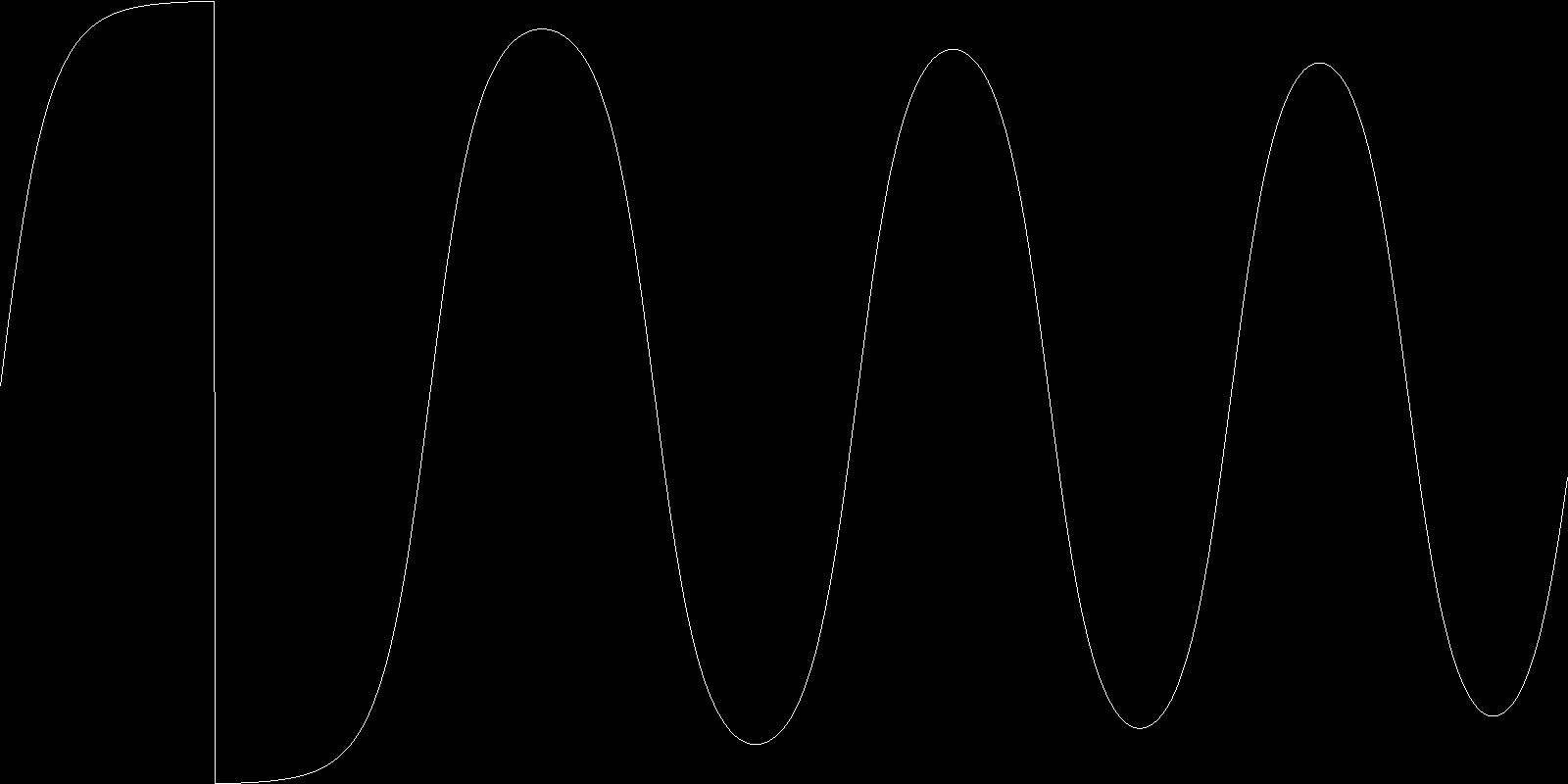

And plots the graph of the angle mod 2π, so a straight line means it swings once around the top(top → c = c₀, bottom → c = c₁):
![Screenshot from 2019-11-08 22-30-41.png](https://cdn.steemitimages.com/DQmPR2WsHLvWUtSRfdukPyVUJp4PygtHMEKeCTdSyj9MtkY/Screenshot%20from%202019-11-08%2022-30-41.png)![Screenshot from 2019-11-08 22-30-55.png](https://cdn.steemitimages.com/DQmStuaMQ6pgbEFnpLsetMS3a83pGwx9fb5aiNiVeeuKZGh/Screenshot%20from%202019-11-08%2022-30-55.png)

This code prints the result 14.1332 which is not perfectly accurate even though I used 1000000 iterations in the final run.

*↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓*
### List of participants with their entries:
Name | Solution found
 - | -
@kaeserotor | 0 and 0.00146484375 | Both are correct assuming g = 9.81 ms⁻² instead of the value I used above.

*↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓*

## Winners:
Congratulations @kaeserotor. You won 6 SBI due to lack of competition!

*↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓↑↓*
### The next contest starts in 2 days. Don't miss it!
👍  , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
