EOS Development For Beginners: WebAssembly

Many guys are trying to learn how to develop smart contracts on EOS. However, those smart contracts are written by C++ and compiled into WebAssembly which seemed strange to most non-c++ programmers.  So before diving deep into the EOS, it’s better to learn some basic stuff about WebAssembly.

<b> What’s WebAssembly </b>

I don’t want to copy the definition from its [official website](http://webassembly.org/). You can take a look at it by yourself. Here you can think it as a file that can be loaded and run in the web browser.  It’s similar to the Javascript,  but it’s much faster, tinier and safer than JS.

<b> How to write  Webassembly </b>

Here is a work flow:
![](https://steemitimages.com/DQmRat5n75CXtGdEeiJDDazRmnMTjTPgEV282YQLnnj8Gbw/image.png)

Basically there are four steps, I will go though it by a very simple example.

* <b>1. Write the C/C++ code</b>

The following code is used to calculate the square root of a number.
```
#include <math.h>
float getSqrt (float num) {
  return sqrt(num);
}

```

* <b>2. Compile C/C++code into wasm (the format of Webassembly)</b>

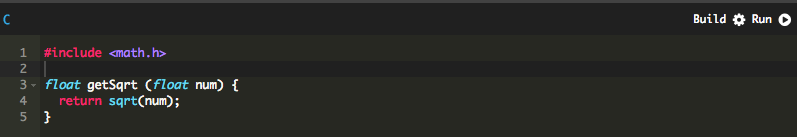

There are [many ways](https://developer.mozilla.org/en-US/docs/WebAssembly/C_to_wasm) to compile the code. To simplify the process, I found a very [easy way](https://wasdk.github.io/WasmFiddle/?cvrmt) to do that.
![](![](https://steemitimages.com/DQmcmZr9fa6Yi55ckaL7f7GsCpB3mT2Sh4oDVUYpZzEMxhS/image.png))

Copy your code to that website and click the build button, you can find complied file in the below.

![](https://steemitimages.com/DQmcz9SmQh9oR43dd2r2Ar56jMXSXZmPMCga5xbtKkyNVuC/image.png)

Then download the program.wasm file to your local box.

* <b>3. Load the wasm into browser with JavaScript </b>

Create a test.html using the following code, put it in the same fold as program.wasm
```
<!doctype html>
  <title>WASM Test</title>
  <script>
    fetch('./program.wasm')
    .then(res => {
      if (res.ok)
        return res.arrayBuffer();
      throw new Error(`Unable to fetch WASM.`);
    })
    .then(bytes => {
      return WebAssembly.compile(bytes);
    })
    .then(module => {
      return WebAssembly.instantiate(module);
    })
    .then(instance => {
      window.wasmSqrt = instance.exports.getSqrt;
    });
  </script>
```

* <b>4. Run the method in Web browser </b>

To work around the website cross-origin issues, we need to run a local web server in that folder. With Linux or Mac, let's do
```
python -m SimpleHTTPServer
```

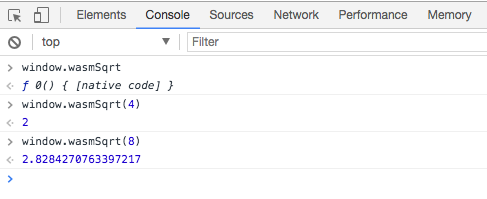

Then open our Chrome browser, go to this page: http://localhost:8000/test.html. In the console, try the following method.

![](https://steemitimages.com/DQmfEDJkxCTgEKTmEcdqjZ1tq3NkD7PgoViCL2y23ZuybBq/image.png)


## Done

Through this tutorial, you get familiar with WebAssemply, but for the advanced study, please check [eos-example-exchange-contract-and-benefits-of-c](https://steemit.com/eos/@dan/eos-example-exchange-contract-and-benefits-of-c
) written by @dan

If you are interested in how to build EOS on mac, please check my [previous tutorial](https://steemit.com/eosdev/@skenan/eos-build-guide-on-mac-os).
