This tutorial is part of a series where different aspects of quickly creating and deploying STEEM web applications by using the Django framework as well as Beem are discussed. Knowledge of programming with Python is advised, as well as HTML and CSS.

---

#### Repository
https://github.com/chartjs/Chart.js
https://github.com/django/django

#### What will I learn

- Installing Charts.js and Django Rest Framework
- Setting up an API endpoint
- Generating charts with Charts.js

#### Requirements

- Python 3.7
- Django 2.1.5
- Django Rest Framework 3.9.1
- Git
- Pipenv

#### Difficulty

- intermediate

---

### Tutorial

#### Preface

The Django framework is quite flexible and can easily be integrated with other frameworks. This allows the programmer to focus on the core functionality while other frameworks can be used for less important features.

#### Setup

Download the base files via Github and branch to the initial commit. Install the required packages.

```
$ cd ~/
$ clone https://github.com/Juless89/django-chartsjs.git
$ cd django-chartsjs
$ pipenv install django==2.1.5
$ pipenv shell
(django-chartsjs) $ pip install djangorestframework==3.9.1

(django-chartsjs) $ git fetch origin master b4605e27125712956cf7494d40a529cabd4fc520
(django-chartsjs) $ git checkout b4605e27125712956cf7494d40a529cabd4fc520
```

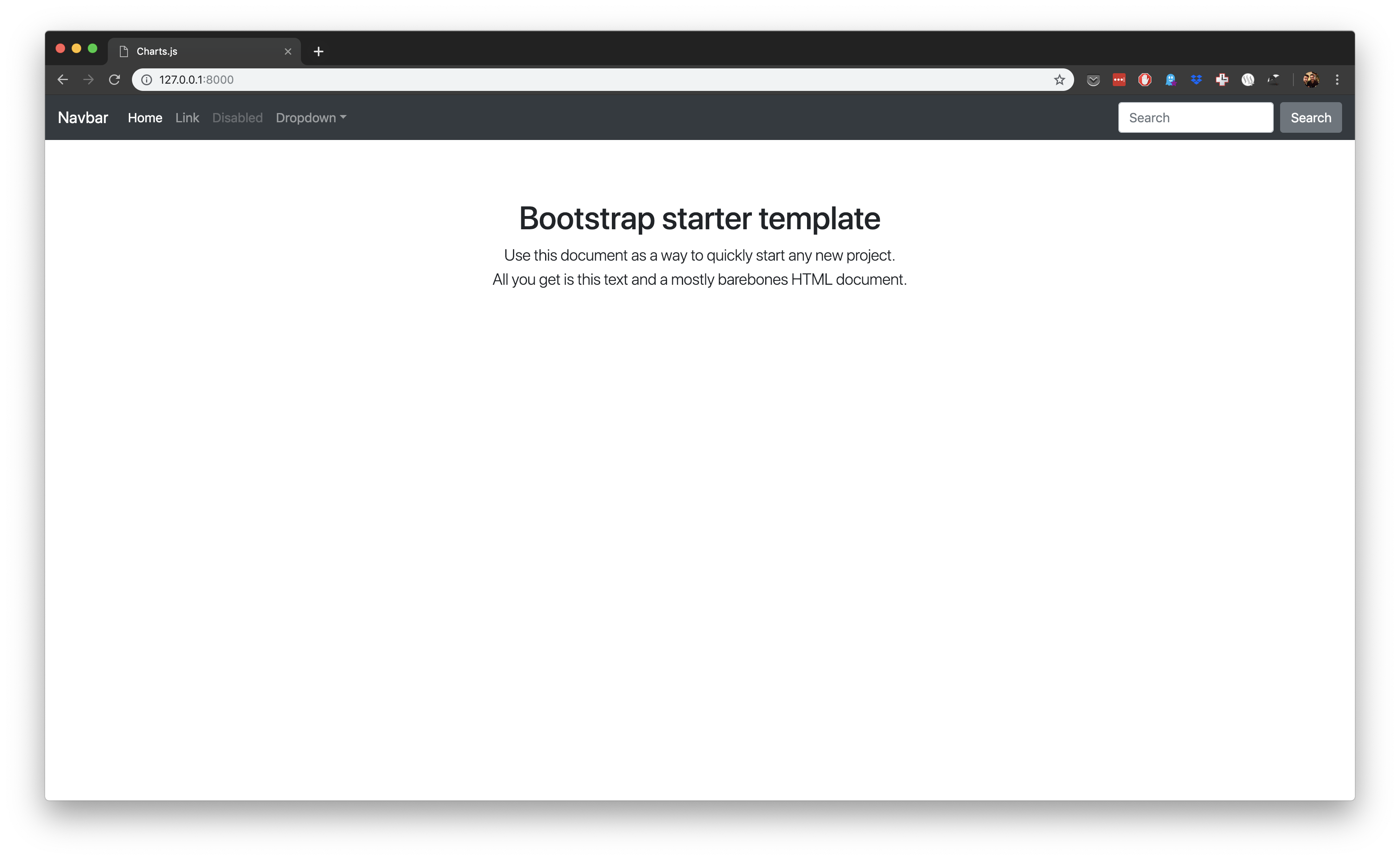

Run the server, it should look as follow:

```
(django-chartsjs) $ python manage.py runserver
```

<center>
![Screenshot 2019-02-02 15.21.42.png](https://cdn.steemitimages.com/DQmabec8urBBUxiBFmaGWbawFLpN8XgUC6tG9e6unibhdqB/Screenshot%202019-02-02%2015.21.42.png)</center>


#### Installing Charts.js and Django Rest Framework
The Django Rest Framework will be used to handle the api calls and needs to be added to `settings.py`.

```
# dashboard/settings.py

INSTALLED_APPS = [
    .
    .
    .
    'rest_framework',
]
```

`Charts.js` requires two changes to the `base.html` script packages. Replace `jquery-3.3.1.slim.min.js` with the full version and add `Chart.bundle.js`.

```
# templates/base.html

<script src="https://code.jquery.com/jquery-3.3.1.slim.min.js" integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo" crossorigin="anonymous"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.3/Chart.bundle.js" integrity="sha256-o8aByMEvaNTcBsw94EfRLbBrJBI+c3mjna/j4LrfyJ8=" crossorigin="anonymous"></script>
 ```

#### Setting up an API endpoint

Create a new view from the class `APIView`. The view returns data in a JSON format that is compatible with `Charts.js`. For now the data is hard coded, eventually this should be generated or retrieved from a database.

```
# charts/view.py

from rest_framework.views import APIView
from rest_framework.response import Response


class ChartData(APIView):
    authentication_classes = []
    permission_classes = []

    def get(self, request, format=None):
        data = {
            "labels": ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"],
            "data": [12, 19, 3, 5, 2, 3, 10],
        }

        return Response(data)
```
Register the view to the url `api/chart/data/`.

```
# charts/urls.py

from .views import HomePageView, ChartData

urlpatterns = [
    path('', HomePageView.as_view(), name='home'),
    path('api/chart/data/', ChartData.as_view()),  # new
]
```

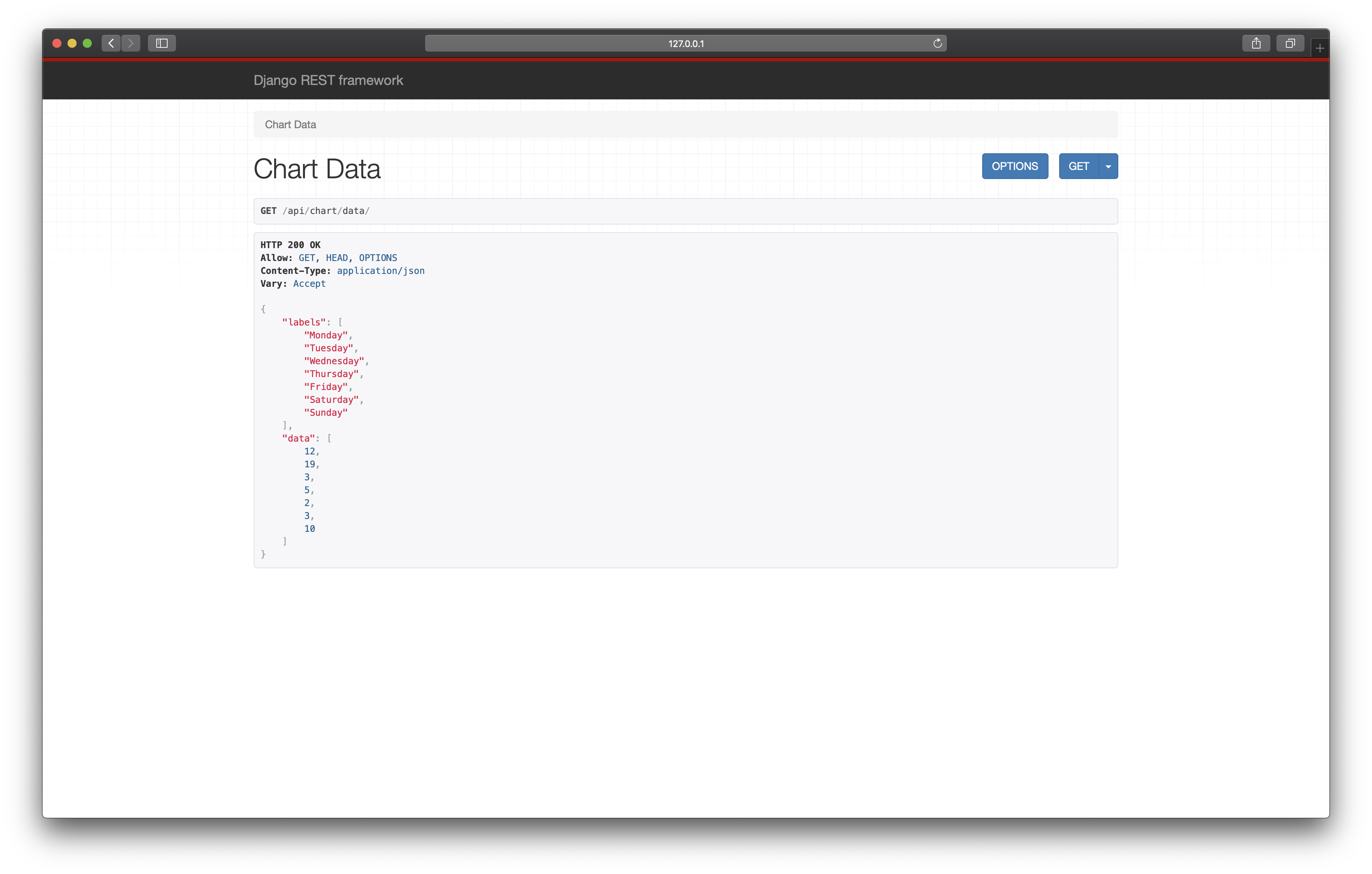

Validate if the api is working correctly. [http://127.0.0.1:8000/api/chart/data/](http://127.0.0.1:8000/api/chart/data/)


<center>![Screenshot 2019-02-02 16.10.33.png](https://cdn.steemitimages.com/DQmS93nECr8PAMinBMrv5BMsjc7mhAXLzjbqSkejoRBuqpy/Screenshot%202019-02-02%2016.10.33.png)</center>

#### Generating charts with Charts.js

Add the following container to `index.html` underneath `<div class="starter-template">`. The javascript makes sure the entire block is loaded before the code is run. The html centers the chart and fixes it's size.

```
# templates/index.html

<div class="container">
    <div class="row">
        <div class="col-sm-3"></div>
        <div class="col-sm-6">
        <canvas id="myChart" width="400" height="400">
            <script>
                $(document).ready(function(){
                {% block jquery %}{% endblock %}
                })
            </script>
        </canvas>
        </div>
        <div class="col-sm-3"></div>
    </div>
</div>
```

`Charts.js` has examples on their website. Which can easily be adjusted.

```
<script>
var ctx = document.getElementById("myChart").getContext('2d');
var myChart = new Chart(ctx, {
    type: 'bar',
    data: {
        labels: ["Red", "Blue", "Yellow", "Green", "Purple", "Orange"],
        datasets: [{
            label: '# of Votes',
            data: [12, 19, 3, 5, 2, 3],
            backgroundColor: [
                'rgba(255, 99, 132, 0.2)',
                'rgba(54, 162, 235, 0.2)',
                'rgba(255, 206, 86, 0.2)',
                'rgba(75, 192, 192, 0.2)',
                'rgba(153, 102, 255, 0.2)',
                'rgba(255, 159, 64, 0.2)'
            ],
            borderColor: [
                'rgba(255,99,132,1)',
                'rgba(54, 162, 235, 1)',
                'rgba(255, 206, 86, 1)',
                'rgba(75, 192, 192, 1)',
                'rgba(153, 102, 255, 1)',
                'rgba(255, 159, 64, 1)'
            ],
            borderWidth: 1
        }]
    },
    options: {
        scales: {
            yAxes: [{
                ticks: {
                    beginAtZero:true
                }
            }]
        }
    }
});
</script>
```

Create a new file `charts.html` that extends `index.html` to separate the code for the chart. Put everything outside the `<script>` tags between: `{% block jquery %}....{% endblock %}`. Ajax is used to `GET` the chart data from the `api-endpoint` and catching any errors.

```
(django-chartsjs) $ touch templates/charts.html
# templates/charts.html
{% extends 'index.html' %}

<script>
  {% block jquery %}
  var endpoint = '/api/chart/data'

  $.ajax({
      method: "GET",
      url: endpoint,
      success: function(data){
        <code for the chart>
      },
      error: function(error_data){
        console.log(error_data)
      }
  })

  {% endblock %}
</script>
```

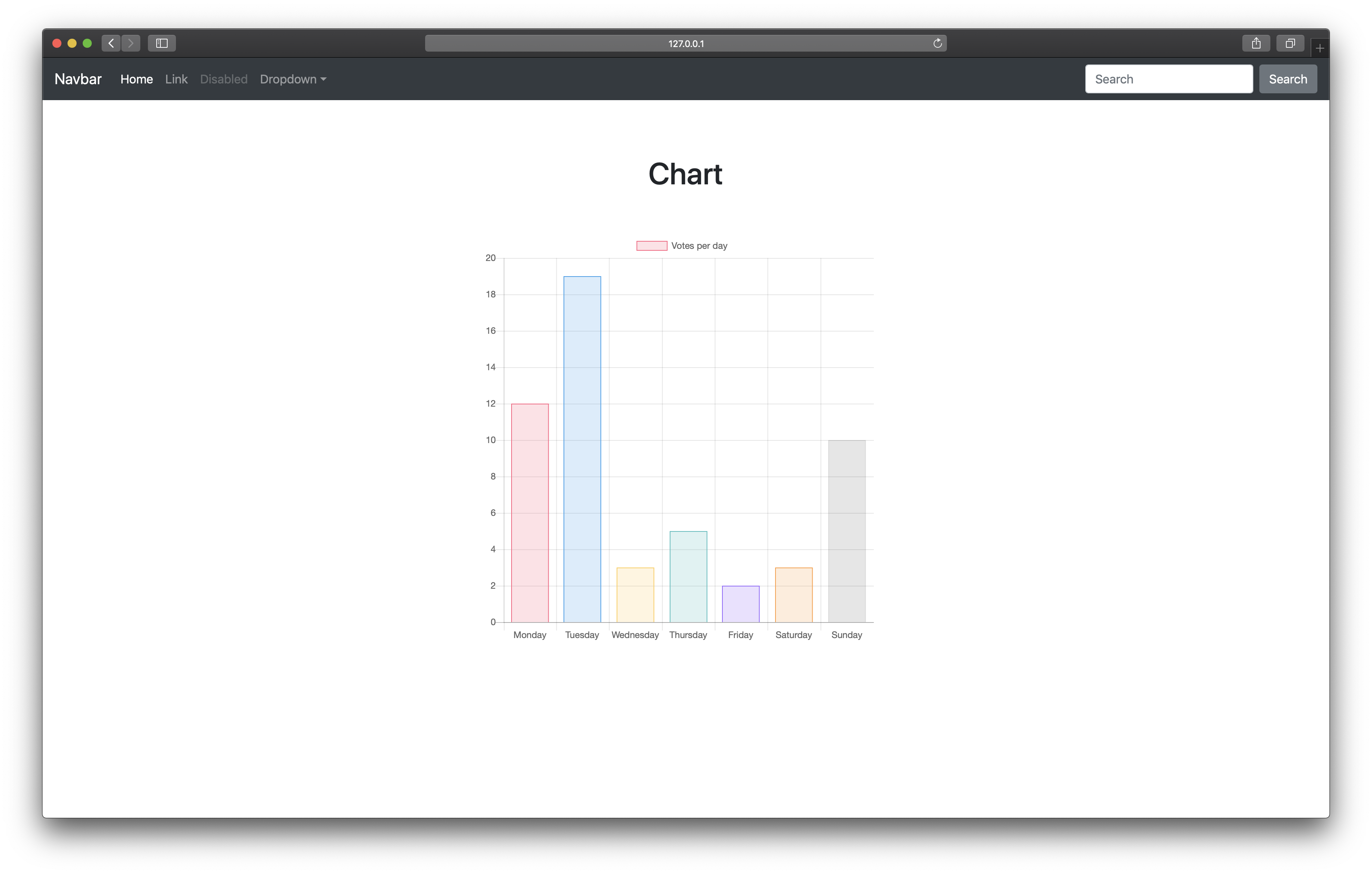

Lastly replace `labels` with `data.labels` and `data` with `data.data` inside the example code from `Charts.js`.  And set the `HomePageView` to `charts.html`.

```
# templates/charts.html

data: {
  labels: data.labels, #updated
  datasets: [{
      label: 'Votes per day',
      data: data.data, #updated
```

```
# charts/views.py

class HomePageView(View):
    def get(self, request, *args, **kwargs):
        return render(request, 'charts.html')
```

<center>![Screenshot 2019-02-02 16.40.14.png](https://cdn.steemitimages.com/DQmWd18pDMEACLjmLtbKP8ovtBFCW69hvwV6KsSKENSJMh6/Screenshot%202019-02-02%2016.40.14.png)</center>

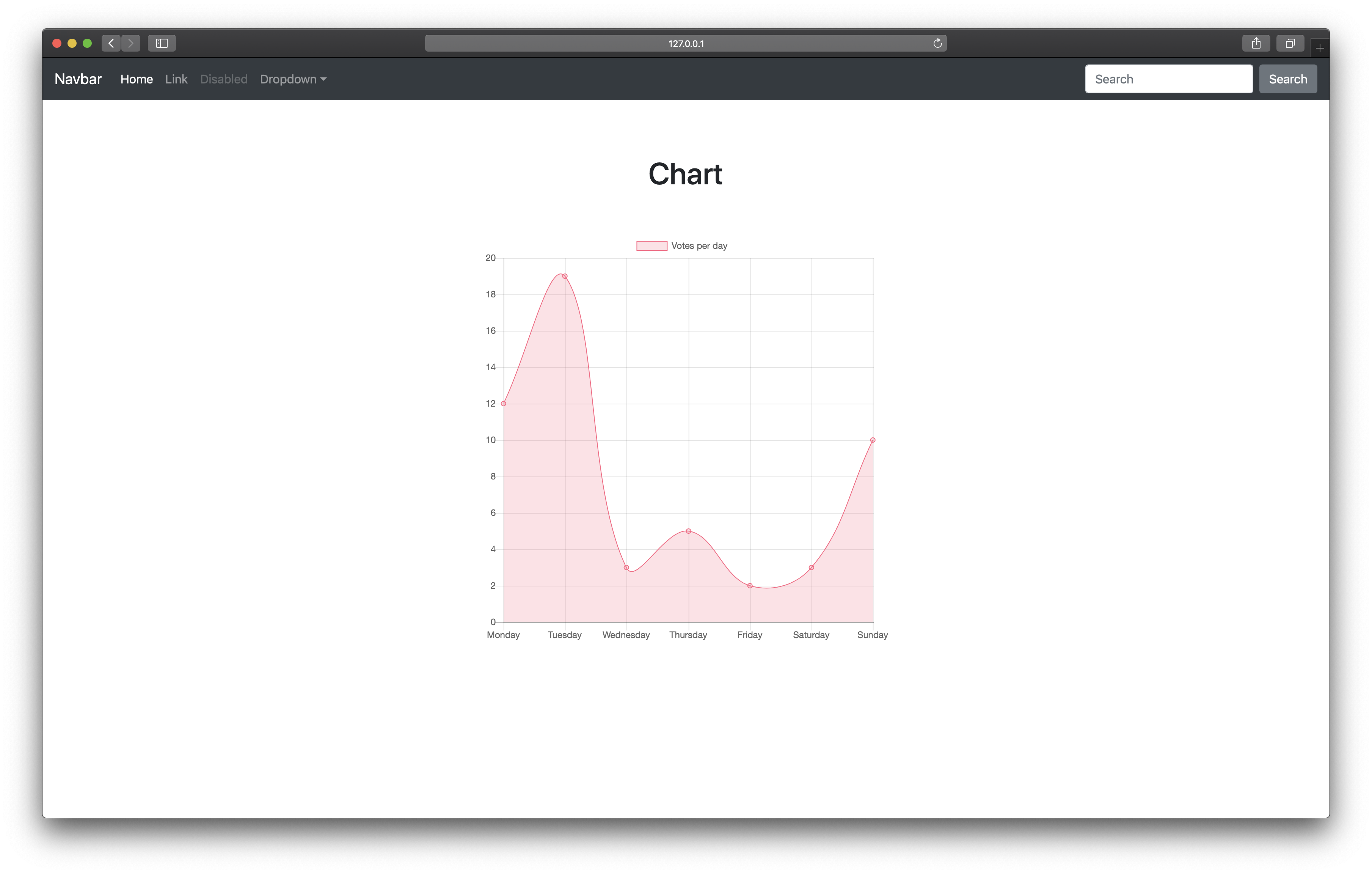

Changing the type of chart is as easy as changing `type`, for example to `line`. Check the website from [Charts.js](https://www.chartjs.org/) for an overview of all possible charts.

<center>![Screenshot 2019-02-02 16.40.34.png](https://cdn.steemitimages.com/DQmbk5xuFoKwJbcZ2s2zstHL8xZAxdKcrbVRmSetcbohKNK/Screenshot%202019-02-02%2016.40.34.png)</center>

### Curriculum

- [Part 0: Create STEEM web applications with Django and Steem-Python](https://steemit.com/@steempytutorials/part-0-create-steem-web-applications-with-django-and-steem-python)
- [Part 1: Using the URL to dynamically pull data via the Steem API and parse to html](https://steemit.com/utopian-io/@steempytutorials/part-1-using-the-url-to-dynamically-pull-data-via-the-steem-api-and-parse-to-html)
-  [Part 2: Using A Bootstrap Template To Parse STEEM Posts Via Beem API](https://steemit.com/utopian-io/@steempytutorials/part-2-using-a-bootstrap-template-to-parse-steem-posts-via-beem-api)
---

The code for this tutorial can be found on [Github](https://github.com/Juless89/django-chartsjs)!

This tutorial was written by @juliank.
