So i started editing a lot more 4k content and figured out i would save quite som time on upgrading my CPU. After some research i ended up with the Intel Core i7-8700K processor and my main reasons for that was a clock speed of 3.7-4.7 with good overclock capabilities and 6 cores. Last time i upgraded my CPU was back in 2014 so it was truly time for something new and fast. My motherboard and RAM then also needed to be upgraded to be compatible with the new CPU.

I then thought some one in the steemit community might have some interests in learning how to upgrade their system, i  then started documenting my build.

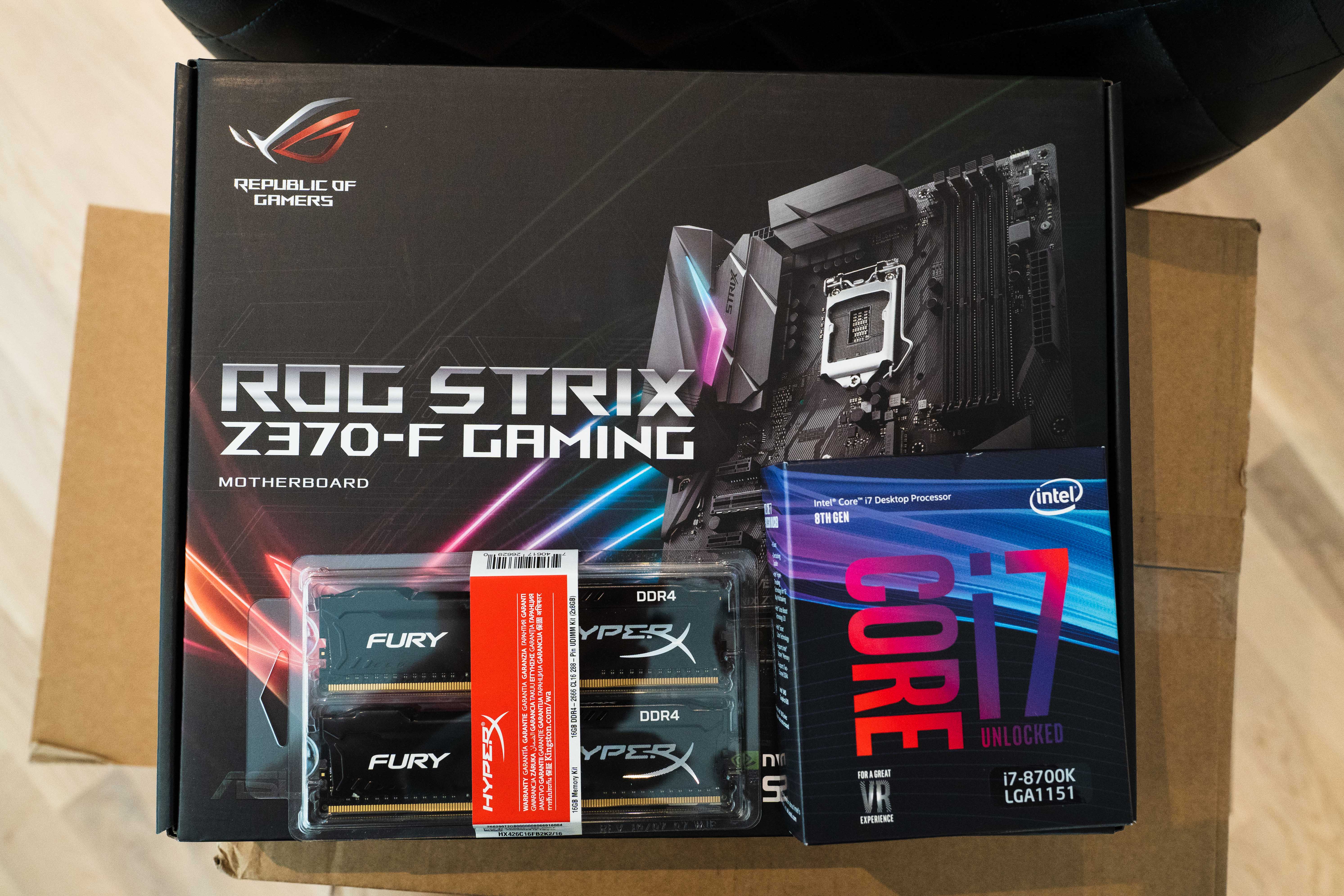

| **Old parts:**    | New parts:          | |
| ------------- |:-------------:| -----:|
|MSI Z87-G45 Gaming, Socket-1150   | ASUS ROG STRIX Z370-F Gaming, S1151
| Intel Core i5-4670K     |   Intel Core i7-8700K  |
| Kingston DDR3 HyperX Beast 2400MHz 16GB | HyperX Fury DDR4 2666MHz 16GB    |

![CAP03698.jpg](https://cdn.steemitimages.com/DQmWhyyDGz8D2XuStj1g8wGShdFLN7nDqYwo5AETc32gmjj/CAP03698.jpg)

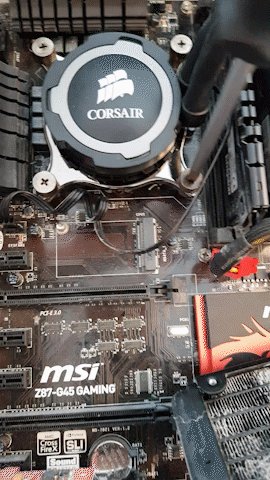

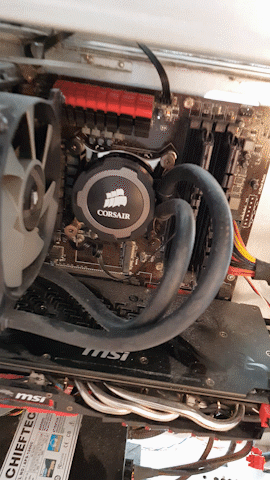

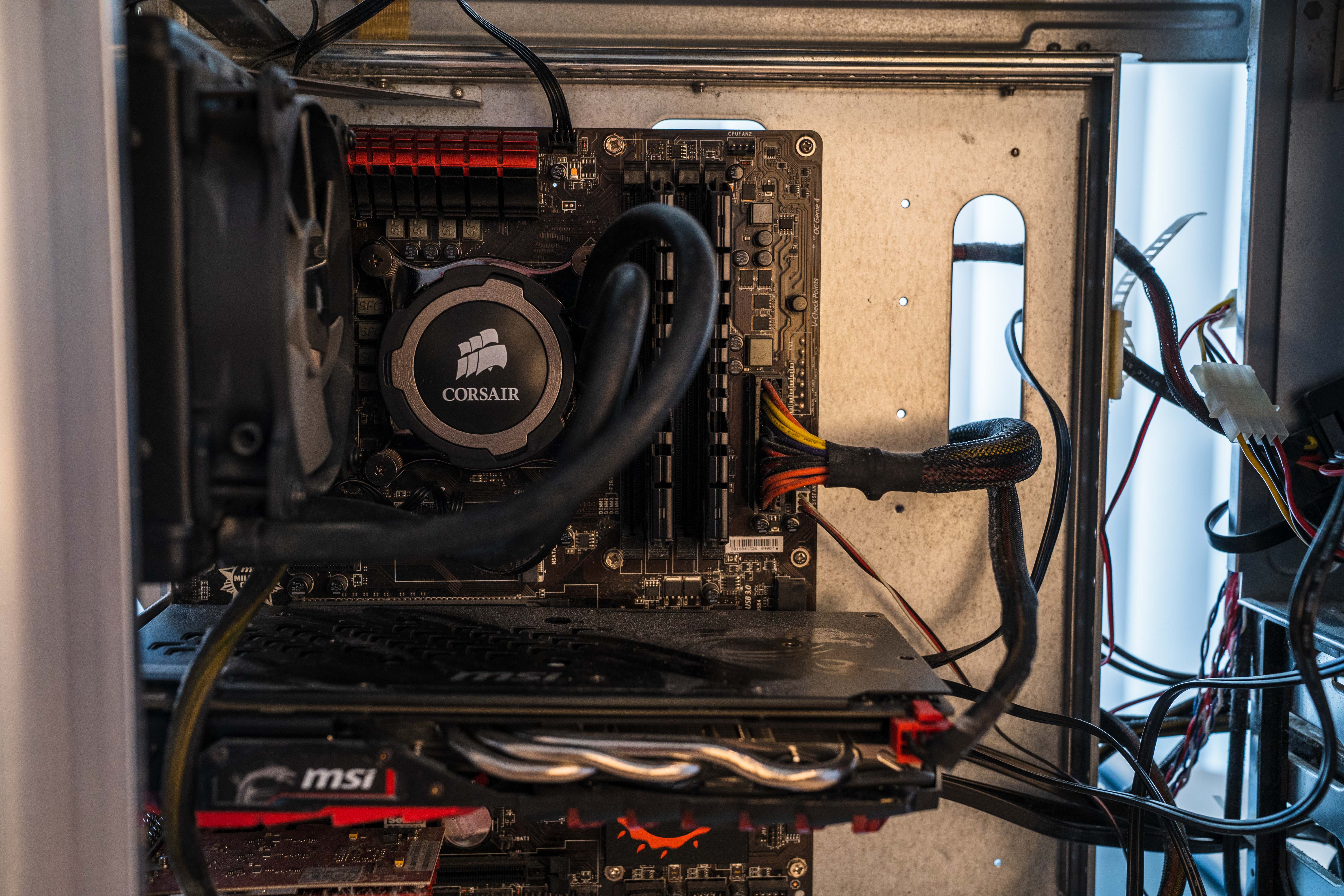

* First off all i start off with removing the old cooling unit from my motherboard since i am going to use it on my new build.
* I then proceed with unplugging and removing the GPU (Graphic card) and wireless network card.


![CAP03682.jpg](https://cdn.steemitimages.com/DQmaoisRpihHJw7ZRUsB1cATmM8Wwg9u9AKKiRYwFjNed7p/CAP03682.jpg)

**<center>![Cooler mb.gif](https://cdn.steemitimages.com/DQmbztDdscUHvQT1vQ36MX2FvnSNrdEj67YP54S9x4DUZwZ/Cooler%20mb.gif)![Fjern cooler.gif](https://cdn.steemitimages.com/DQmUp7FcDCHX64aUzUGanJf2G2an5oqMVZ4V82gMgGyiQkS/Fjern%20cooler.gif)</center>**

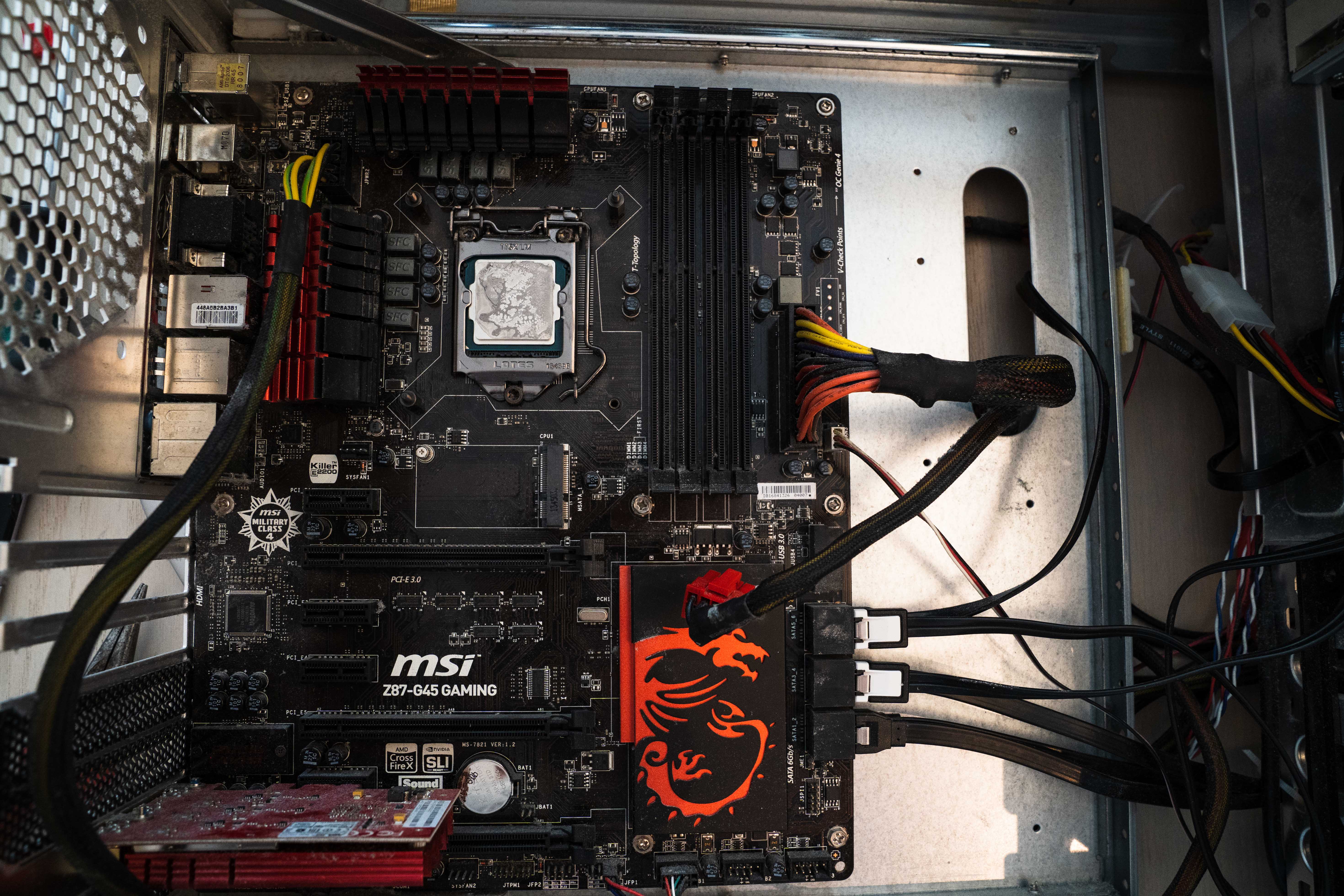

* Now unplug all the power, fan, SATA and other connectors on the motherboard so it can be removed safely from the computer case.
* To be able to remove the motherboard you unscrew the mounting screws located on a few different spots on the board.

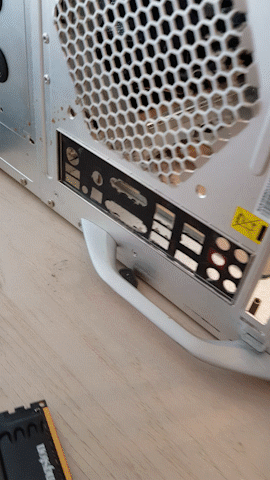

* After the motherboard is removed the IO shield on the back can be removed with a quick flick of a finger literally.

![CAP03690.jpg](https://cdn.steemitimages.com/DQmcGZnB77sSpMB2iqu9x1nEhVyKmNuaiiA9RZGr9msK83U/CAP03690.jpg)

**<center>![Unscrew motherboard.gif](https://cdn.steemitimages.com/DQmUJwF48SLX8CthDG3BYGWDnh85ciJV6gTK8t39v1n9Yvy/Unscrew%20motherboard.gif)![motherbord shield.gif](https://cdn.steemitimages.com/DQmfGHgR6hMTU3uSxPsM6g4mgYCz67RbmghU8T6QVT4NuGW/motherbord%20shield.gif)</center>**

![CAP03692.jpg](https://cdn.steemitimages.com/DQme5p7QYMZBvCNEJTsbR6xskg5FEUAHykTWM1HyzyQmWSF/CAP03692.jpg)

* Now that the motherboard is removed it's a great opportunity to do some spring cleaning. Grab a vacuum cleaner with a nozzle and remove all the dust you can find, your computer will thank you.

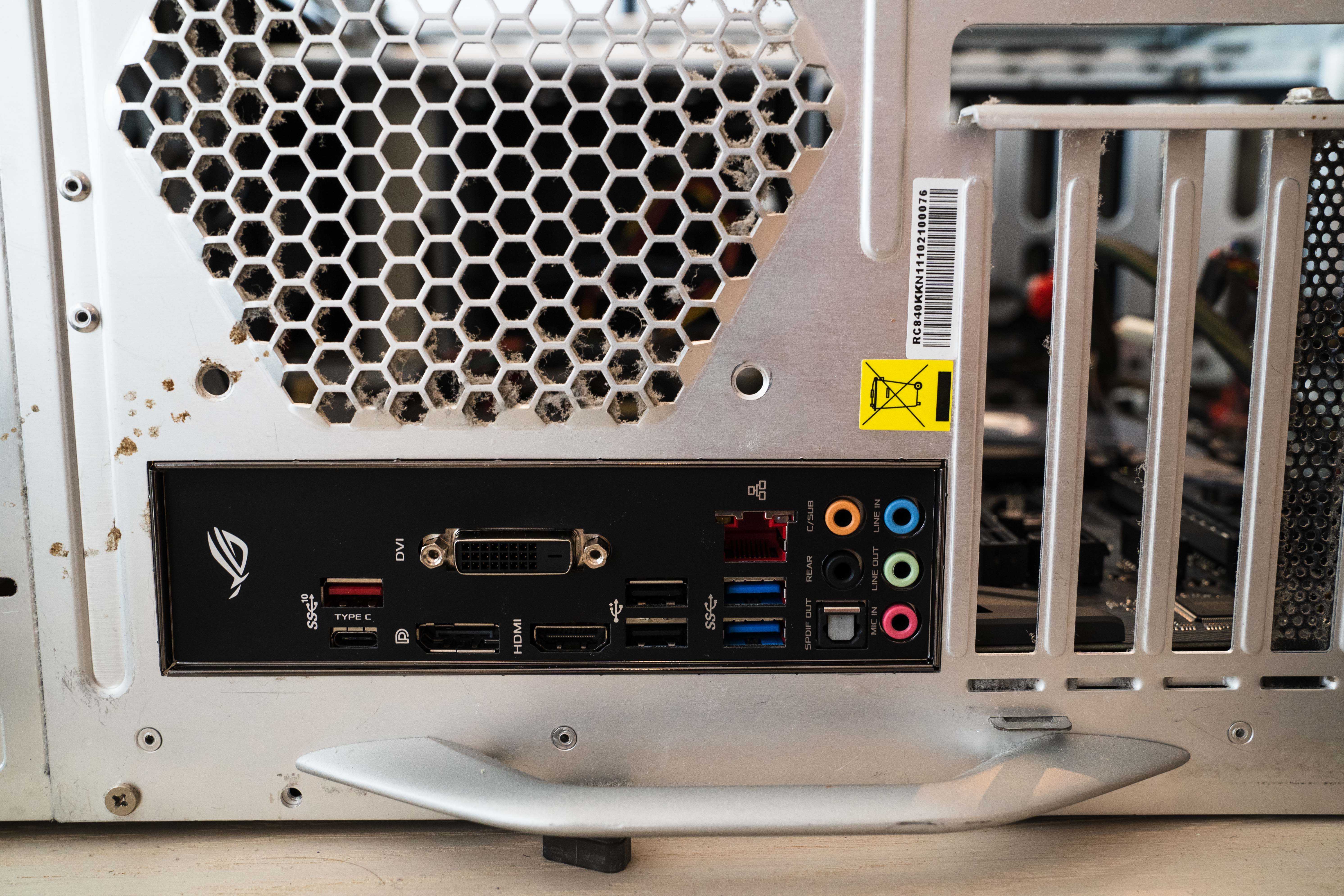

* Then it's time to insert the new IO shield in the back f the case.

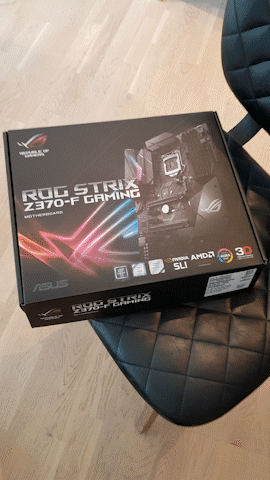

* Unbox the new motherboard and for sure throw away that manual, who needs it?

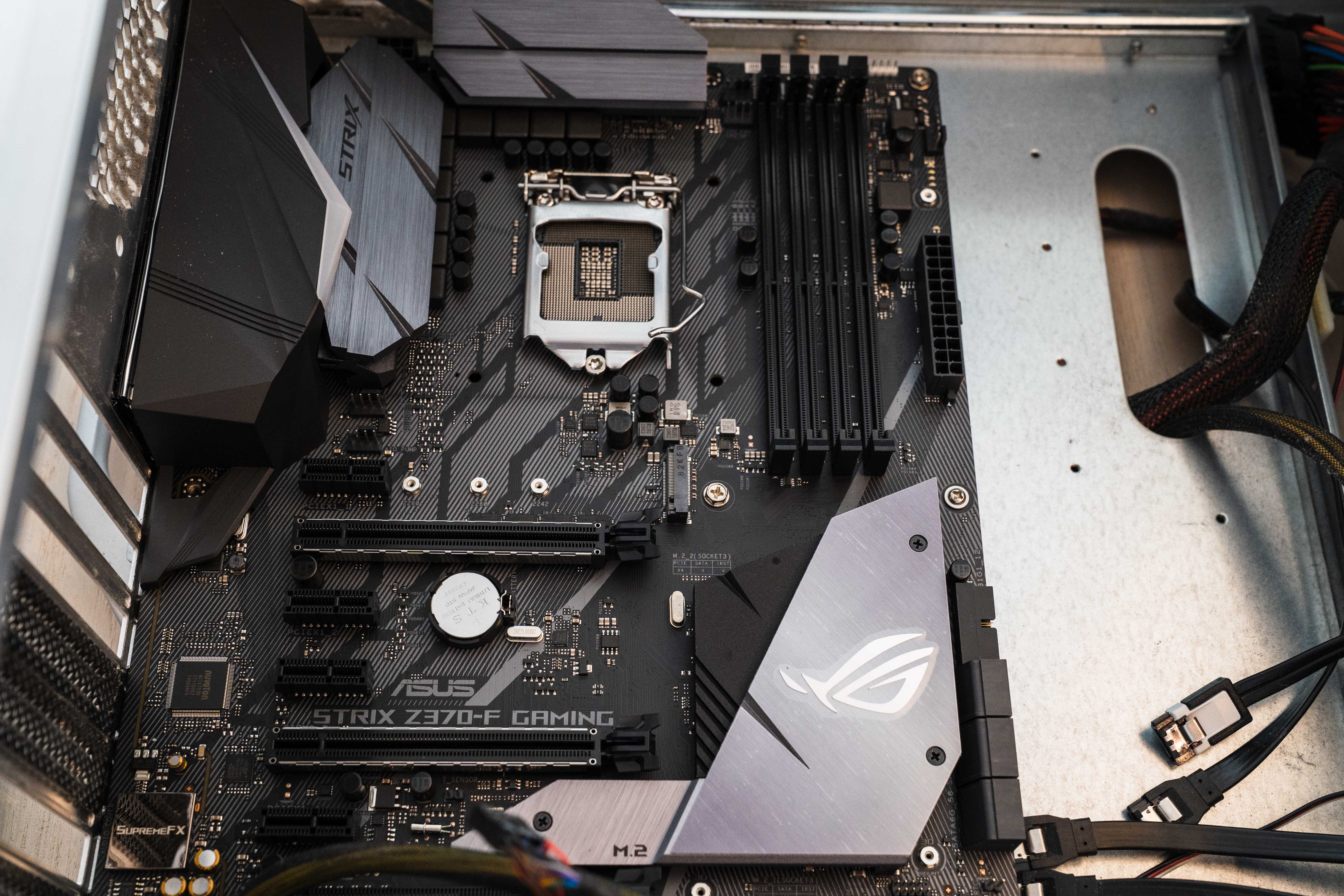

* Now place the motherboard in the same spot as the old and start adding back the mounting screws.


**<center>![Open motherborad.gif](https://cdn.steemitimages.com/DQmbPTthZWPuzBNGWBsnht6ak89GVM5ChSZ3jwjfHakacCj/Open%20motherborad.gif)![manual.gif](https://cdn.steemitimages.com/DQmdK4L7jBLXGgJ25zpqg5iQWPwM3eoPqh1XuC2X1Sg5WYb/manual.gif)</center>**

![CAP03702.jpg](https://cdn.steemitimages.com/DQmWyhDogPDLpVCFq5NZQts3yx53Czakccaig8fHd3Zs4YF/CAP03702.jpg)

![CAP03707.jpg](https://cdn.steemitimages.com/DQmYDwar1Kp17VsasfwXNSrdJ12TYML7m3tEYgaUcWNnJSi/CAP03707.jpg)

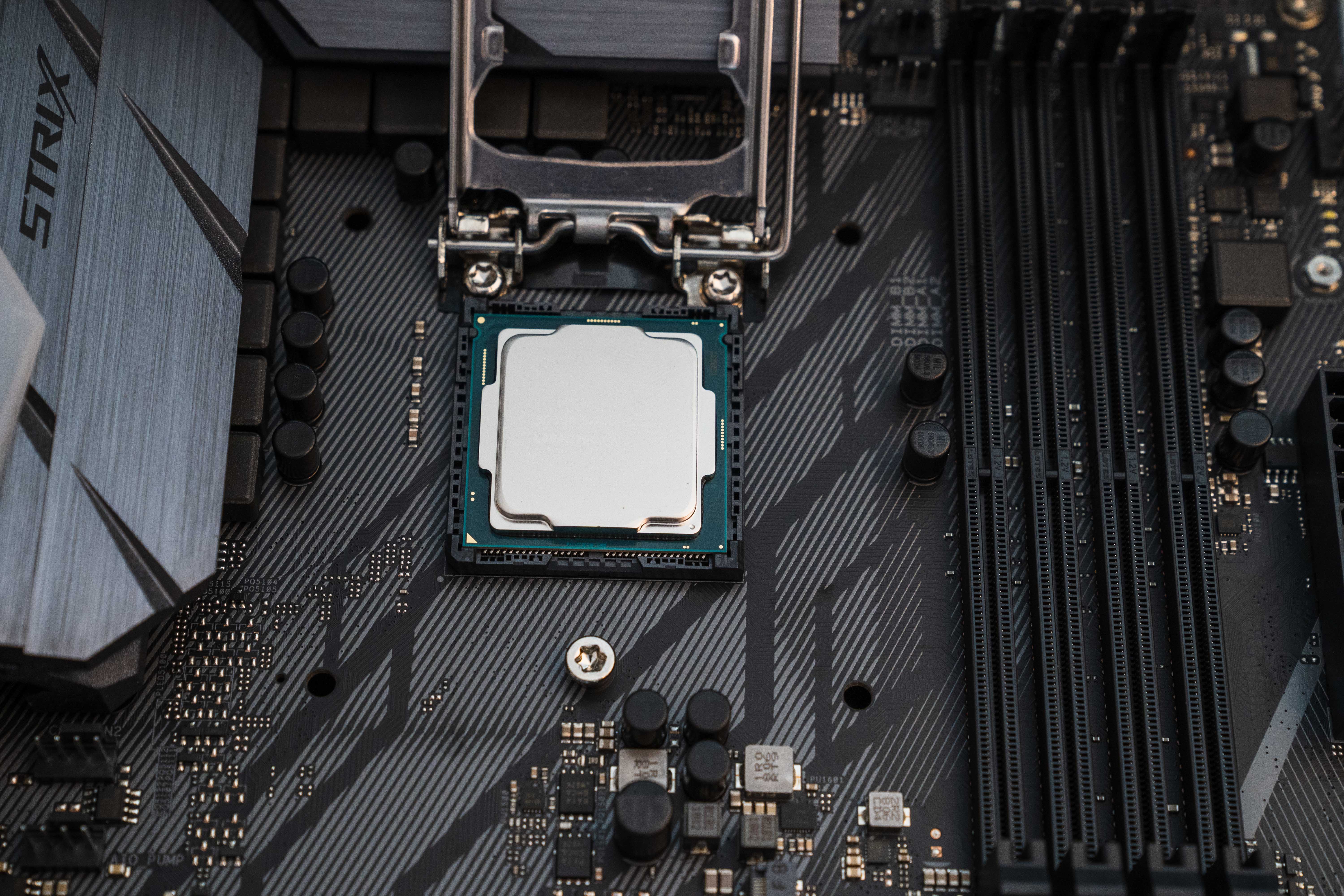

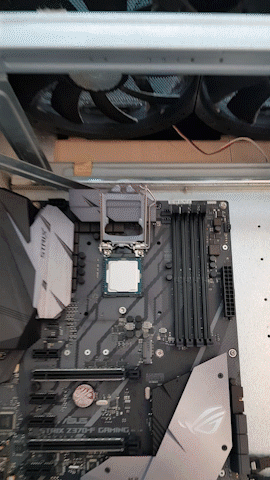

* Okey now we are installing the CPU, it needs to be mounted in the right orientation. This is indicated by a arrow in the left corner of the CPU that will line up with a arrow on the mounting bracket.
* Clamp down the locking mechanism so the CPU is securely fitted.

![CAP03709.jpg](https://cdn.steemitimages.com/DQmSTauX1i2r537W8fFyPAT6C17yErHbyxF7tdrDYtxJErm/CAP03709.jpg)

**<center>![Åpne cpu, fjerne beskyttelse.gif](https://cdn.steemitimages.com/DQmemtBeV8knXmacpuKBxHzLA4pnXhFQPqcbL5x58fAw65s/%C3%85pne%20cpu,%20fjerne%20beskyttelse.gif)![Feste cpu.gif](https://cdn.steemitimages.com/DQmdA5wrZZvbfSR1TPqgjtBf24FVFLbTmfZXYpAJxbqYUCX/Feste%20cpu.gif)</center>**

* Before attaching the cooling unit it must be cleaned because of old thermal past residue left on it from the old CPU, i usually us som high percentage rubbing alcohol for this job.
* Add a small dab of new thermal paste to the middle of the CPU.
* Place the cooler on top of the CPU and press it down to spread the paste, use screwdriver to secure the cooler to the motherboard.


![CAP03715.jpg](https://cdn.steemitimages.com/DQmWDLupTc4K9jvCv2seuJMRCEDbPzpC7sSgY5HH1RoX3hH/CAP03715.jpg)

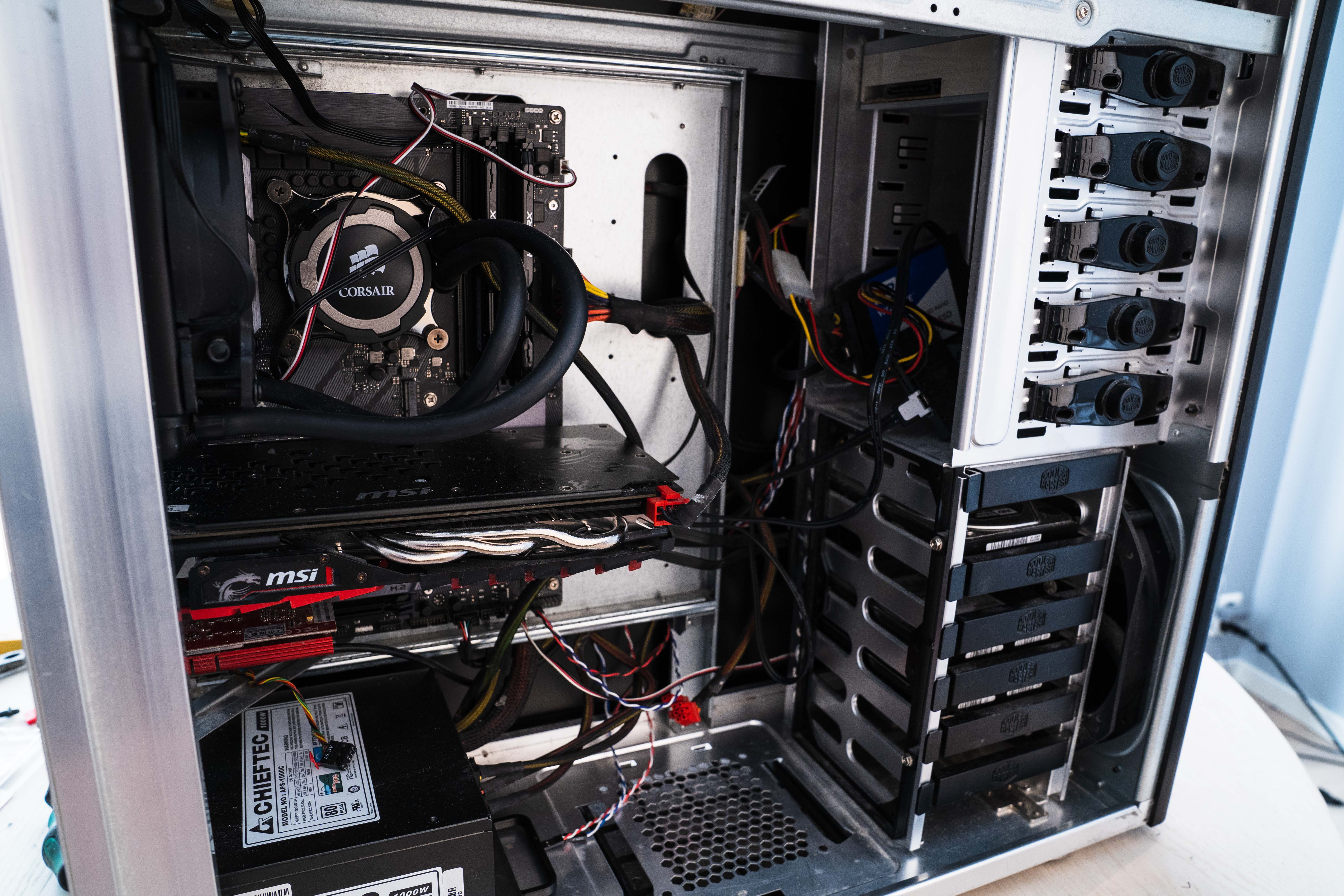

* Start connecting power, fan, SATA and the rest of the wires that was disconnected when removing the old motherboard.

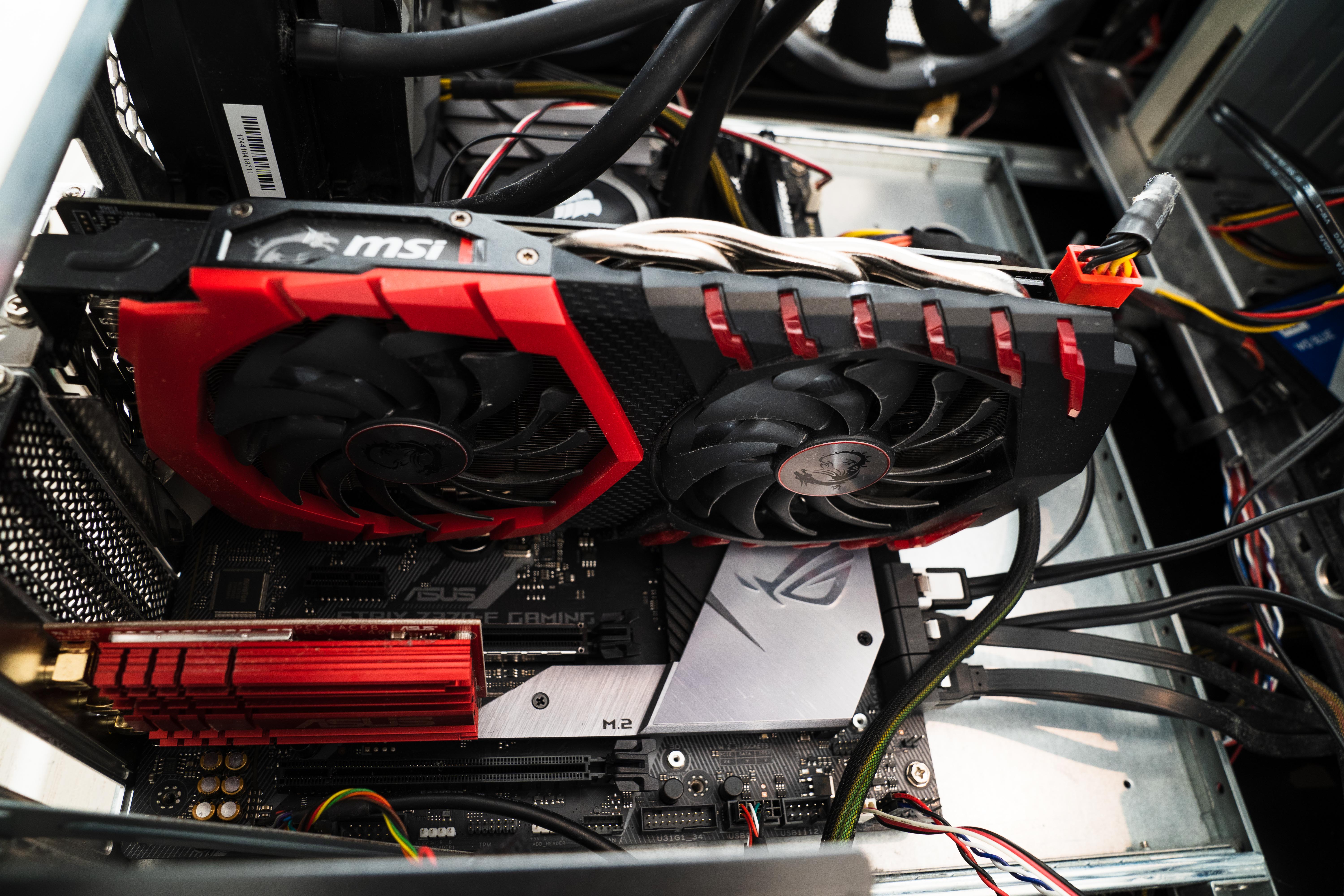

* I then mount the GPU and wireless network card.
![CAP03720.jpg](https://cdn.steemitimages.com/DQmWVhfkWFJQ82VKKfJN5o5pPKUj5tXLYx9CEr89x4tVaeb/CAP03720.jpg)

![CAP03727.jpg](https://cdn.steemitimages.com/DQmVTmacDd2zHzqfWiadd583LQ2hZjJZuDAEW64NaKG2Sau/CAP03727.jpg)

* If your case got dust filters then clean them as they are probably filled with dust.

**<center>![Støvsuger.gif](https://cdn.steemitimages.com/DQmdHjXCKp98B3FiPcpw1TiudjRue1VSsJwcvNN6BVdAs9J/St%C3%B8vsuger.gif)</center>**

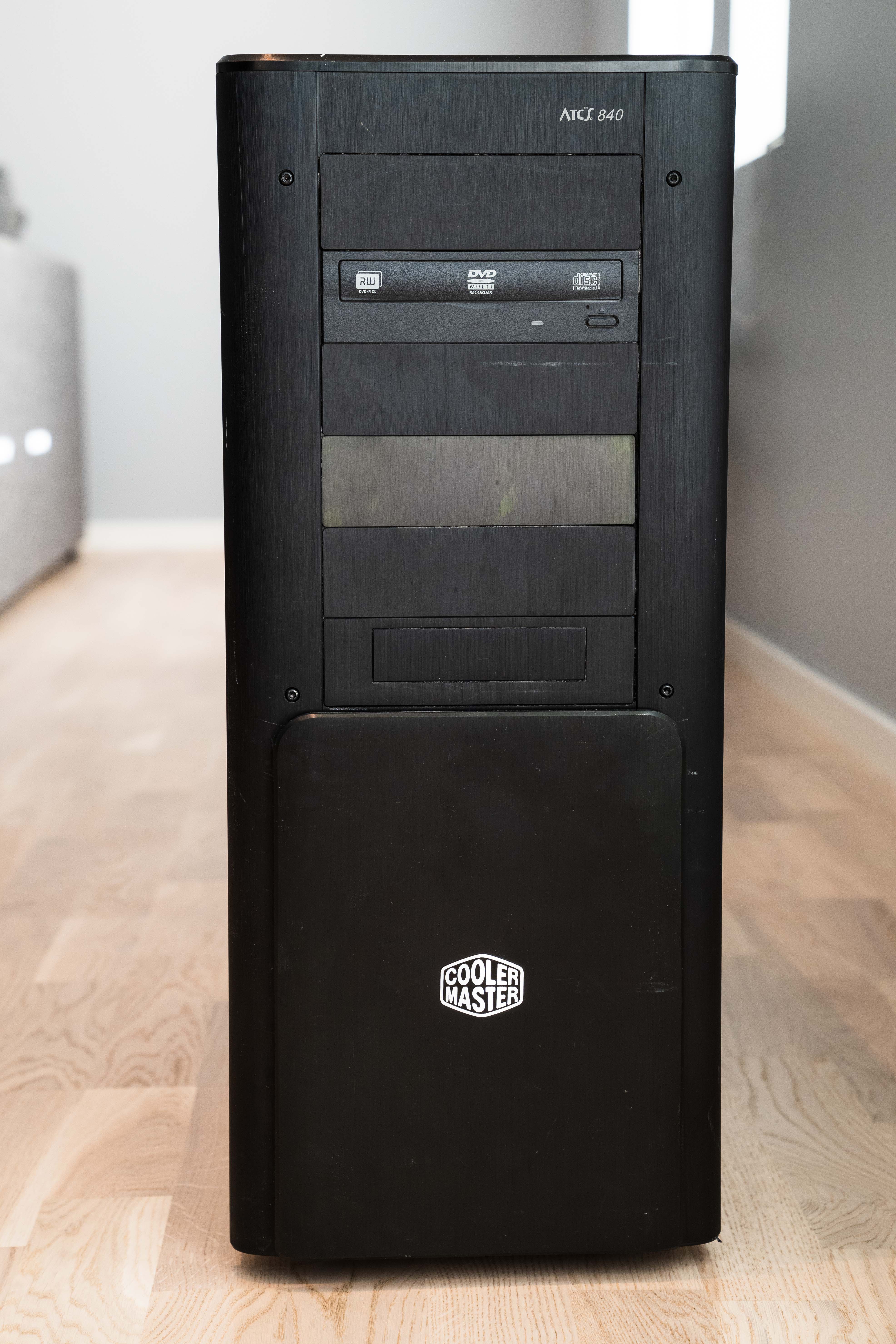

* Now the build is done. Only thing left is hooking it up to the screen to test out if everything works.
* When everything boots up i go and download  [CoreTemp](https://www.alcpu.com/CoreTemp/) and [3DMark basic edition](https://benchmarks.ul.com/3dmark). CoreTemp to have an eye on the temperature of each CPU core and 3DMark for stress testing the system, you can then see pretty fast if the CPU cooler is doing it's job or not.

![CAP03730.jpg](https://cdn.steemitimages.com/DQmdJyqJszwpGeMN5Bg1q3wDrCjQaZKCBmYfDECKzZhhehu/CAP03730.jpg)
