RE: Does cooling matter on the Raspberry Pi 4? by jacobtothe

View this thread on: hive.blog | peakd.com | ecency.com

Viewing a response to: @themarkymark/re-jacobtothe-qcpeoe

hive-163521 · @jacobtothe · Jun 29 '20

I may just leave the heat sinks off entirely, and stick with fan cooling.

properties (22)

`author`	jacobtothe
`permlink`	re-themarkymark-qcpgjs
`category`	hive-163521
`json_metadata`	{"tags":["hive-163521"],"app":"peakd/2020.06.2"}
`created`	2020-06-29 20:50:18
`last_update`	2020-06-29 20:50:18
`depth`	3
`children`	2
`last_payout`	2020-07-06 20:50:18
`cashout_time`	1969-12-31 23:59:59
`total_payout_value`	0.000 HBD
`curator_payout_value`	0.000 HBD
`pending_payout_value`	0.000 HBD
`promoted`	0.000 HBD
`body_length`	73
`author_reputation`	567,443,775,068,899
`root_title`	"Does cooling matter on the Raspberry Pi 4?"
`beneficiaries`	`[]`
`max_accepted_payout`	1,000,000.000 HBD
`percent_hbd`	10,000
`post_id`	98,249,068
`net_rshares`	0

@themarkymark · Jun 29 '20

the heat sinks do almost nothing, it doesn't hurt to have one on the CPU with real thermal paste but the difference isn't huge.

![image.png](https://files.peakd.com/file/peakd-hive/themarkymark/YUzRsY5O-image.png)

![image.png](https://files.peakd.com/file/peakd-hive/themarkymark/wwrupzt5-image.png)

![image.png](https://files.peakd.com/file/peakd-hive/themarkymark/w82CD6Sd-image.png)

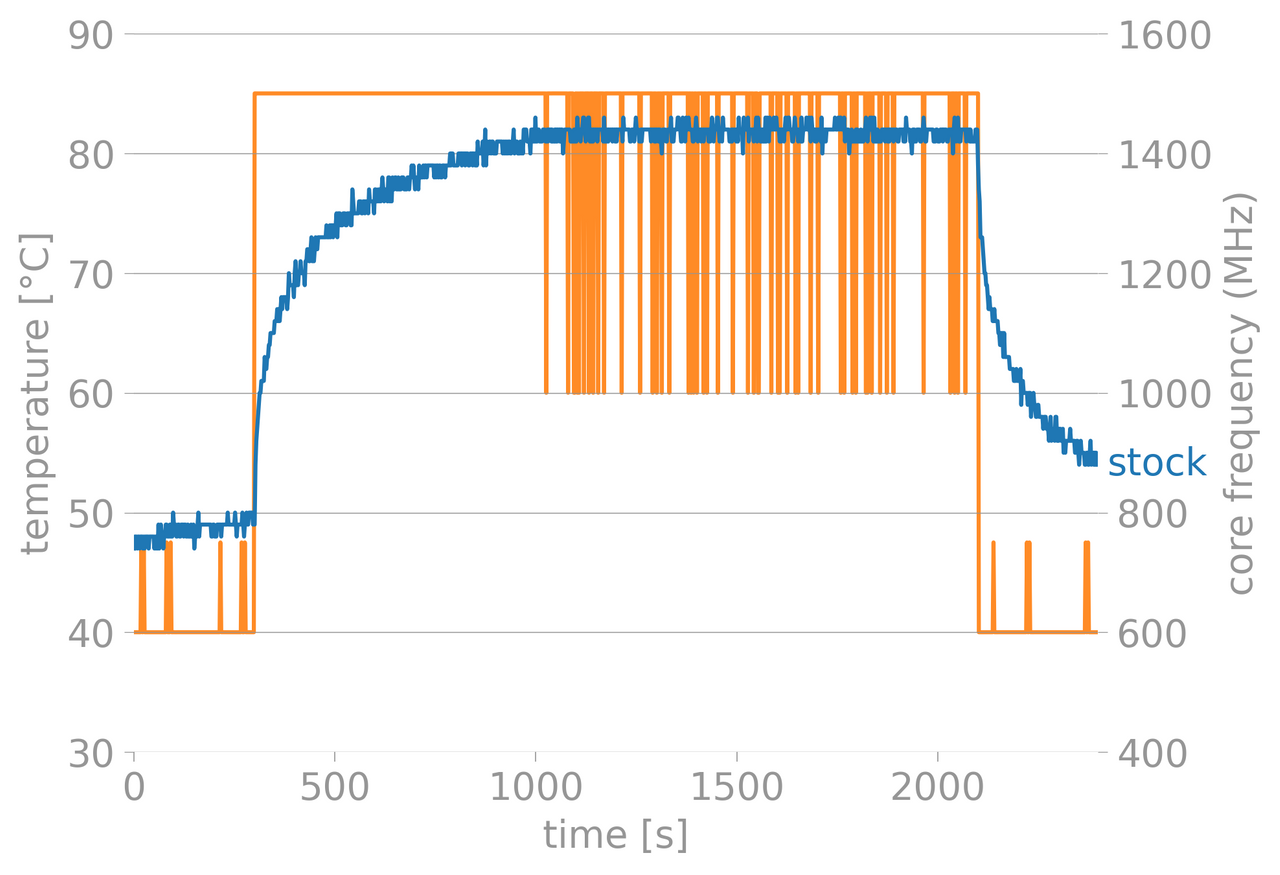

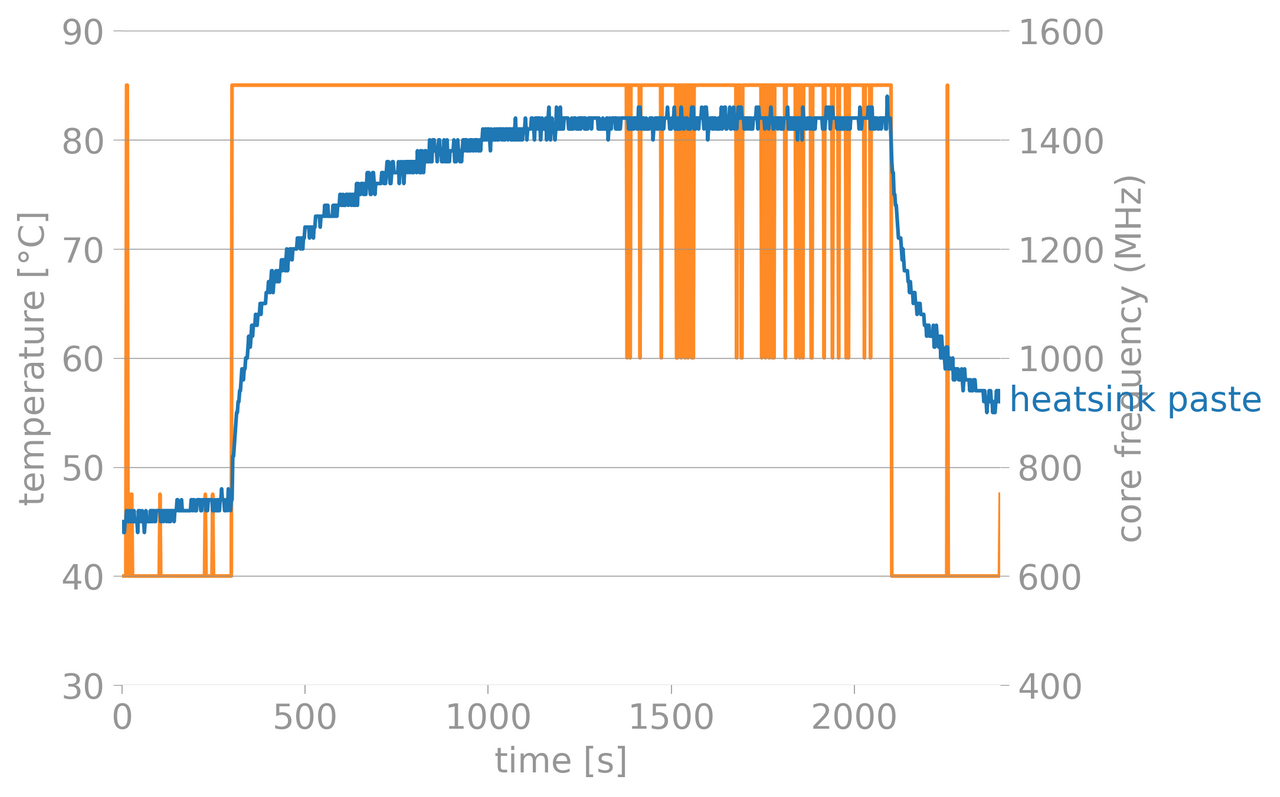

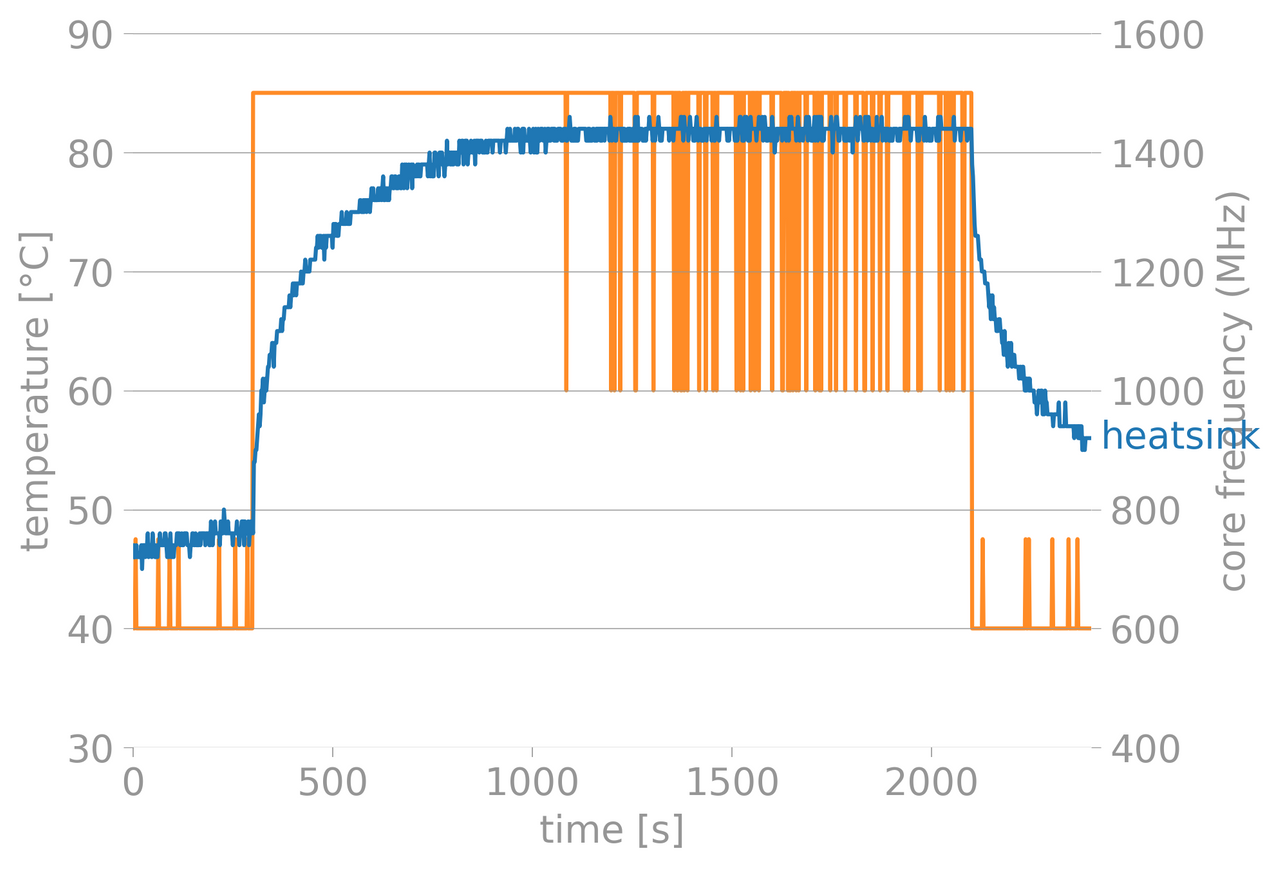

The top one is a bare Pi 4, you can see the heat sink does almost nothing to stop the throttling, the orange bars are how often the speed dropped due to temp, anything less than 1500 is throttled.  Even stock you see a lot of throttling, the heat sink helps a little, but when you use thermal paste it helps a lot more but still struggling with 80C+ temps.

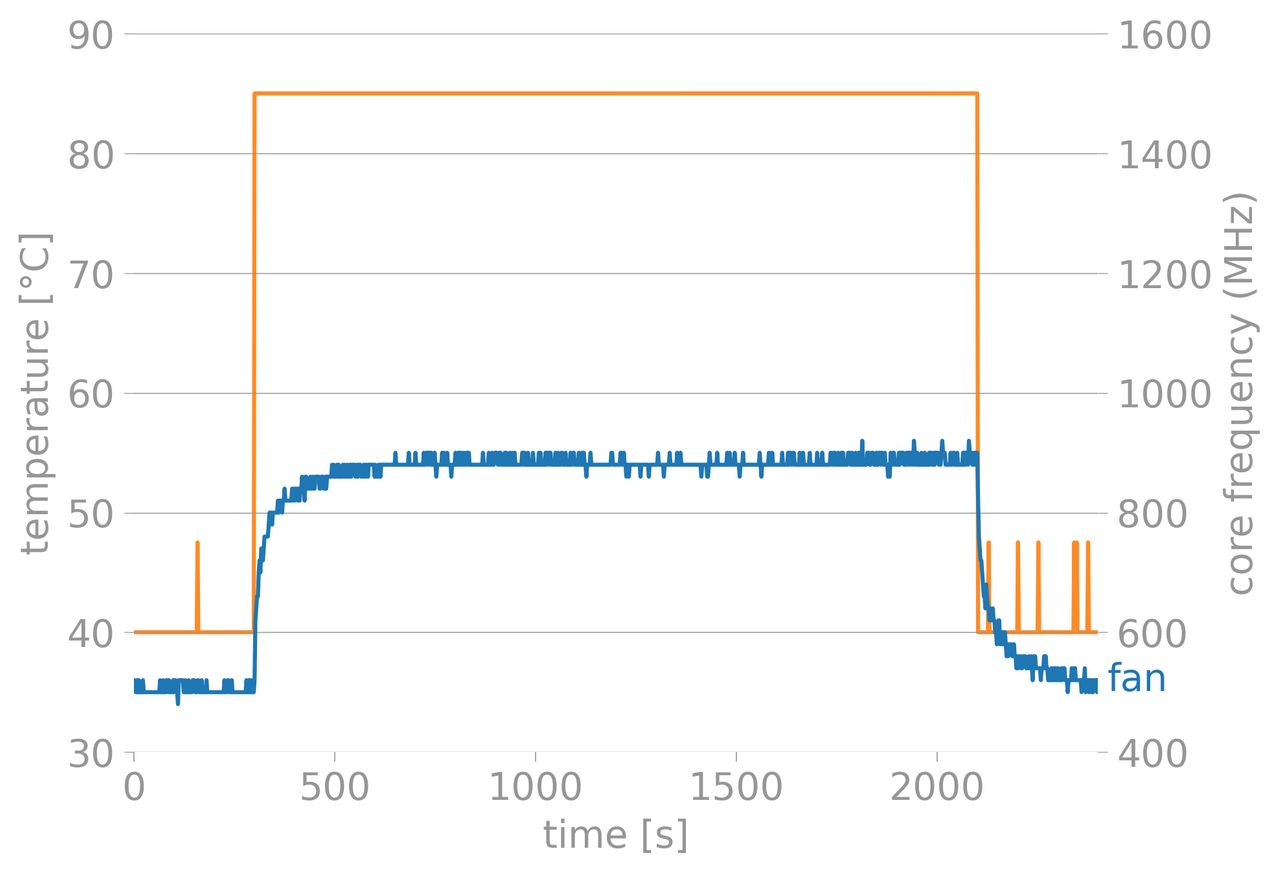

Only when you introduce a fan do you see some stable temps and clocks.

![image.png](https://files.peakd.com/file/peakd-hive/themarkymark/h6D13SGH-image.png)

Put things in a case (without a fan) and it's even worse.

👍 jacobtothe
👎 angelicsaman, dein-problem

`author`	themarkymark
`permlink`	re-jacobtothe-qcpgp9
`category`	hive-163521
`json_metadata`	{"tags":["hive-163521"],"app":"peakd/2020.06.2"}
`created`	2020-06-29 20:53:27
`last_update`	2020-06-29 20:53:27
`depth`	4
`children`	1
`last_payout`	2020-07-06 20:53:27
`cashout_time`	1969-12-31 23:59:59
`total_payout_value`	0.000 HBD
`curator_payout_value`	0.000 HBD
`pending_payout_value`	0.000 HBD
`promoted`	0.000 HBD
`body_length`	964
`author_reputation`	1,777,493,890,115,916
`root_title`	"Does cooling matter on the Raspberry Pi 4?"
`beneficiaries`	`[]`
`max_accepted_payout`	1,000,000.000 HBD
`percent_hbd`	10,000
`post_id`	98,249,101
`net_rshares`	1,403,166,969
`author_curate_reward`	""

properties (23)vote details (3)

voter	rshares	pct
jacobtothe	79,386,421,694	25%
dein-problem	-121,753,598	-1%
angelicsaman	-77,861,501,127	-99.7%

@jacobtothe · Jun 29 '20

My starter set case has a fan, and so does the tablet case. I figured from the start that active cooling would be a good idea even before your charts.
