Part 6: Coding on Hive with Python - Interacting with the Hive-Engine Side Chain
Part 6 of this series discusses how to interact with the Hive-Engine side chain, to check a wallet token balance, and to send tokens to another wallet.

The examples here require some knowledge from parts 1 - 3. If you’re new to coding on Hive with Python, it’s strongly recommended to review [the earlier posts](https://peakd.com/@learncode) first.


![image.png](https://files.peakd.com/file/peakd-hive/learncode/23u6X11XGstWpCyLXh5YWefTaaXY4MGUL3jtNv2sd1ou9HSNGSTg3xVn2VZiVspkg5hNg.png)


---
## Background - What is the Hive-Engine Side Chain and how can Python talk to it?

Hive has a really interesting system called Hive-Engine, which operates as a separate chain on top of Hive (Layer 2). This decentralized system runs with its own set of witnesses, and its governance token is WORKERBBEE. Hive-Engine allows individuals to mint tokens for various purposes, such as Tribe sites. Those are blogging communities centered around their own token, i.e. leofinance.io and the LEO token.

There's a convenient Python module called **hiveengine** for doing basic Hive-Engine operations like checking wallet balances and making transfers. The module has some limited documentation [here](https://pypi.org/project/hiveengine/).

Using **Python** and the **hiveengine** library (which uses beem under-the-hood), it’s easy to check for Hive-Engine wallet balances. The **hiveengine** module is installed the same as other modules in Part 1 of this tutorial series: `python3 -m pip install hiveengine`.

## Step 1 - Checking wallet balances for Hive-Engine tokens

In step 1, **hiveengine** is called upon to check a wallet balance for the PIZZA token. Yum! First `import hiveengine.wallet`, then ask the user for a wallet name, then instantiate a `Wallet()` object and call its `get_token()` function with a token name. Last, `print()` out the wallet's `balance` value.

Code snippet:
```
import hiveengine.wallet

name = input('Enter wallet name: ')

wallet = hiveengine.wallet.Wallet(name).get_token('PIZZA')

print('@%s has %s $PIZZA' % (name, wallet['balance']))
```

Expected output:
```
Enter wallet name: learncode
@learncode has 1.08 $PIZZA
```
Note you may see a scary error message about a Hive API node issue like `Lost connection or internal error on node`. This can be safely ignored. The code will auto-switch to a working API node.

---

## Step 2 - Making a Hive-Engine token transfer

In this step, we will use **hiveengine** module to transfer tokens to another wallet. Doing this requires our wallet's active key. If active key wasn't required Hive-Engine side chain would have a massive security issue because unauthorized apps could transfer our tokens! Like we did in part3, **getpass** module is used to mask the input of the key like a password, to protect against shoulder-surfing.

This time we need to import some extra modules. The `activeKey` is passed into instantiate the `Hive()` blockchain object, similar to what was done with the posting key in LearnCode part 3. Then this blockchain object is used to instantiate a new hive engine `Wallet()` object. Then we use the wallet's `transfer()` function to send the tokens.

Code snippet:
```
import beem
import getpass
import hiveengine.wallet

name = input('Enter wallet name: ')
wallet = hiveengine.wallet.Wallet(name).get_token('PIZZA')
print('@%s has %s $PIZZA' % (name, wallet['balance']))

print('---')

sendTo = input('Who do you want to send $PIZZA to? ')
amount = input('How much $PIZZA do you want to send? ')
activeKey = getpass.getpass(prompt='What is your wallet active private key? ')

HIVE = beem.Hive(keys=[activeKey])
wallet = hiveengine.wallet.Wallet(name, blockchain_instance=HIVE)
wallet.transfer(sendTo, amount, 'PIZZA', memo='Hello from LearnCode6!')

```

Expected output:
```
Enter wallet name: learncode
@learncode has 1.08 $PIZZA
---
Who do you want to send $PIZZA to? learncode
How much $PIZZA do you want to send? 0.01
What is your wallet active private key?
```
---

### Confirming the Result using Hive-Engine block explorer and Hive Block Explorer Tools

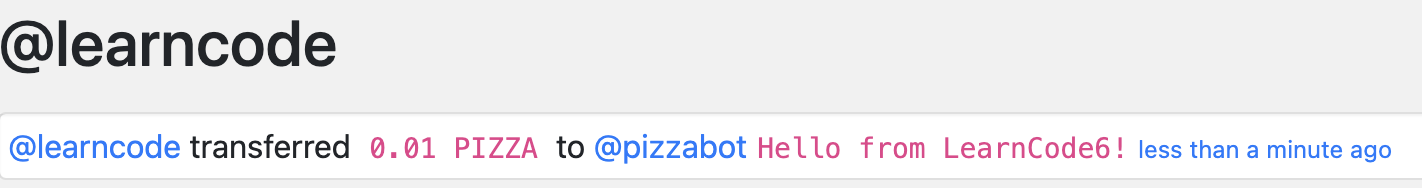

We can immediately use a [Hive-Engine block explorer tool](https://he.dtools.dev/@learncode) to see the transaction. The summary looks like this:

![image.png](https://files.peakd.com/file/peakd-hive/learncode/23uRJ9mRuBW96fS2VJDN7oEcuiyK3hmYLMWHYgv6QvWxaScv5A6eTqpYR53eCttWRHGNh.png)

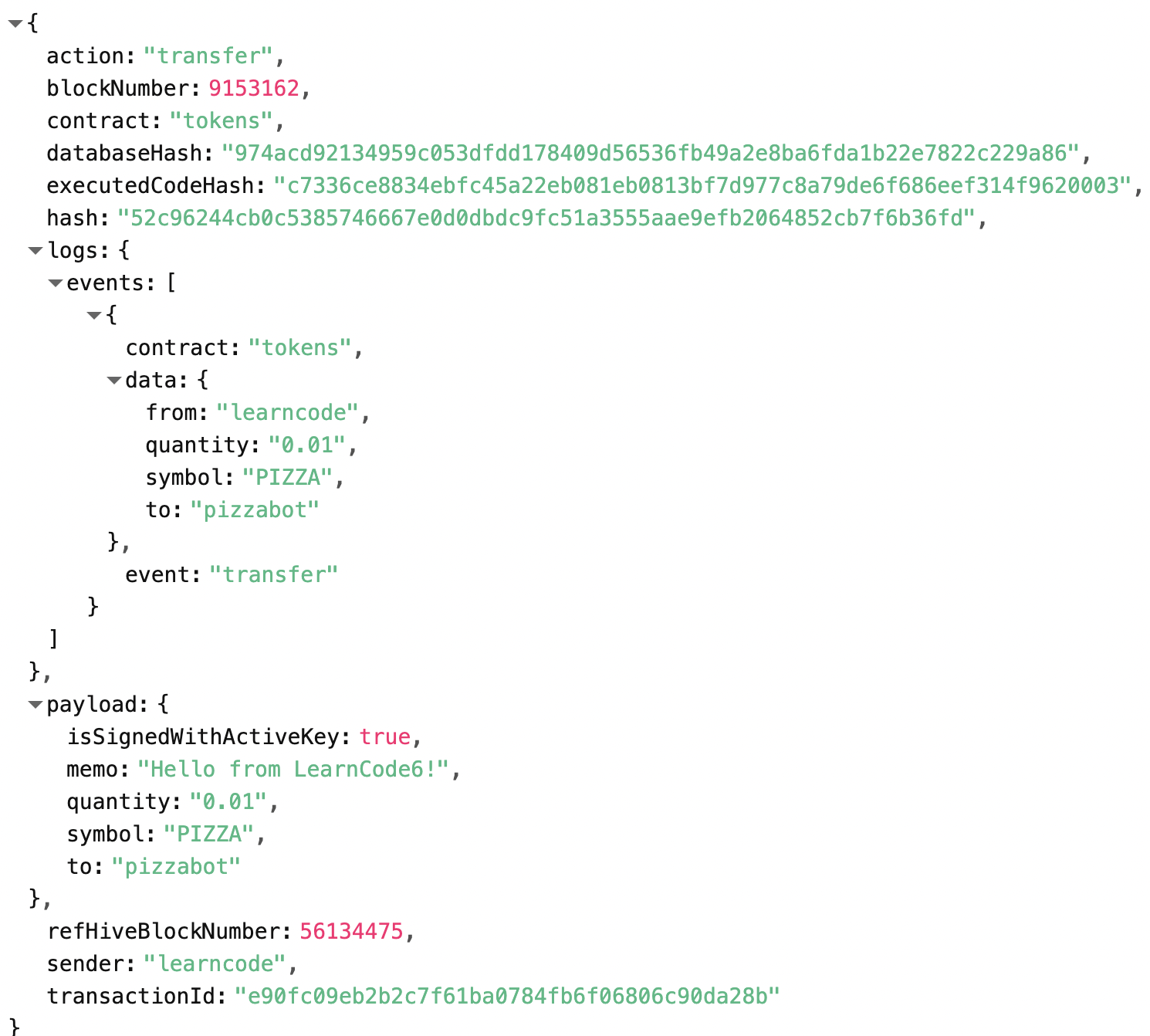

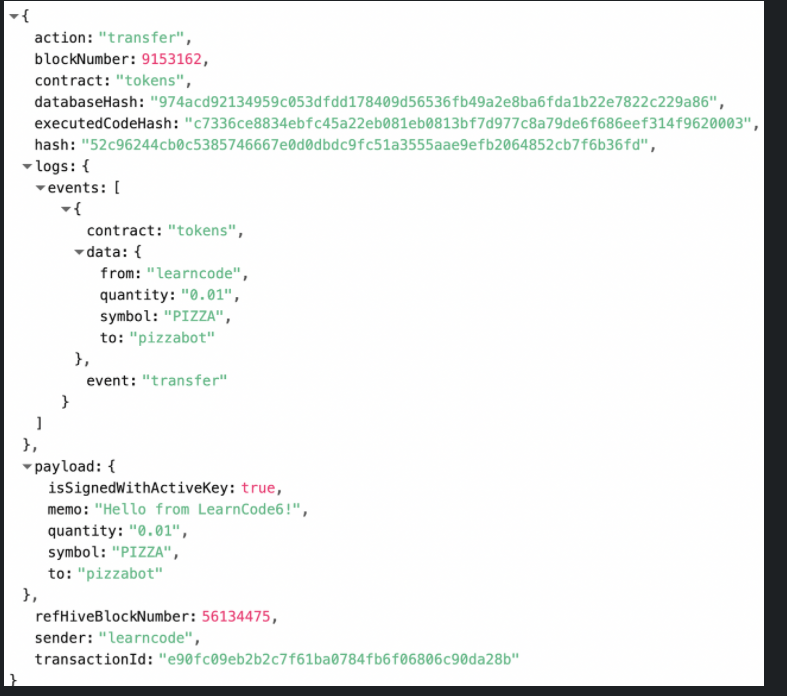

The same tool allows drilling down into the details of the side-chain transaction. The below screenshot shows all the gorey details.

![image.png](https://files.peakd.com/file/peakd-hive/learncode/48FmV6aVsydEcdwQjkVayq882TeSyH3PYBK1buFLmqMwb5kCUaqYx4Q2goxJRoea1m.png)

---

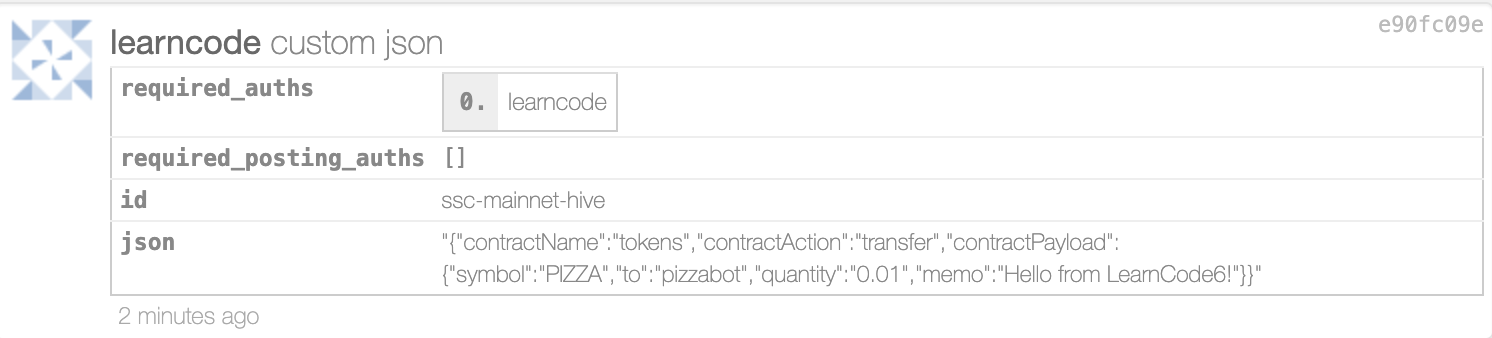

We can also use a [Hive base chain block explorer tool](https://hiveblocks.com/@learncode) to see the transaction. In this case, the tool displays the raw `Custom_JSON` operation. The contents of this operation were filled out for us by the **hiveengine** Python module.

![image.png](https://files.peakd.com/file/peakd-hive/learncode/23tHbKgySHhPSNWyDsmT7TP9gmyLXAXR1tEX3tZepJD4MyRs9LtKbvNys3Mk4yEyL1gLk.png)

---

Lastly, if we wait a minute and run the example code again, it shows the correct updated wallet balance:

```
Enter wallet name: learncode
@learncode has 1.07 $PIZZA
```

![image.png](https://files.peakd.com/file/peakd-hive/learncode/23u5ZX2czd4dwvPTAxnpNvXoYYWUL23xvbe8hF6Kts2Qnc6598MEYjZuSEG8bCR159T3N.png)

p.s. Thanks for reading. Please let me know if anything is unclear or incorrect. This is intended to be a living document to be improved and maintained over time.

---

This blog is produced by the @Hive.Pizza team (@hivetrending and @thebeardflex). PIZZA Crew is a Hive-powered social group empowering content creators, gamers, and YOU. We host game servers, a DLUX node, a Hive-Engine node, and now a Hive witness node! Please help us out and give your [vote](https://vote.hive.uno/@pizza.witness) of approval for our witness (@pizza.witness). Here's a convenient way to [vote](https://vote.hive.uno/@pizza.witness) using HiveKeychain or HiveSigner: https://vote.hive.uno/@pizza.witness. Thanks for your support!
