This tutorial is part of a series where different aspects of programming with `steem-python` are explained. Links to the other tutorials can be found in the curriculum section below. This part will explain how to set up a `MySQL database` interface with the `STEEM Blockchain`. And in addition adding the `PHPMyAdmin` user interface.


---

#### What will I learn

- Install Apache
- Install MySQL
- Install PHPMyAdmin
- Install MySQL for Python
- Configure the database
- Adding transfers to the database

#### Requirements

- Python3.6
- `steem-python`
- Linux/bash

#### Difficulty

- basic

---
### Repository
https://github.com/steemit/steem-python

### Tutorial

#### Preface
[Tutorial 23](https://steemit.com/utopian-io/@steempytutorials/part-23-retrieve-and-process-full-blocks-from-the-steem-blockchain) discussed how to retrieve `blocks` from the `STEEM Blockchain` and interact with the `transactions` in these blocks. In certain cases its preferable to store data locally for faster accessibility. This tutorial will explain how to set up `Apache`, `MySQL` and `PHPMyAdmin` to store and access this data easily. The code in this tutorial will scan the `blockchain` for `transfers` in the specified `block range` and store these in a local `MySQL database`.

#### Setup
Download the files from [Github](https://github.com/amosbastian/steempy-tutorials/tree/master/part_26). There 2 are files `get_blocks.py` which contains the interaction with the `STEEM Blockchain` and `db.py` which contains interactions with the `MySQL database`. This tutorial was tested on a clean `ubuntu 16.04` installation with `Anaconda` and `Steem-Python` already installed. Refer to this [Tutorial](https://steemit.com/utopian-io/@amosbastian/how-to-install-steem-python-the-official-steem-library-for-python) for more information on how to do that. It is also assumed the code is running on a remote server. `get_blocks.py` takes two arguments, the `starting_block` from which to start from and `block_count` to set the amount of `blocks` to retrieve.

Run scripts as following:
`> python bidbot.py 23822234 100`

#### Install Apache
Install apache as follows:
```
sudo apt-get update
sudo apt-get install apache2
```

Set the global ServerName by adding `ServerName <server_ip_adress>` to the end of the file.:
```
sudo nano /etc/apache2/apache2.conf
```

Check if done correct with:

```
sudo apache2ctl configtest

```
Output should be:
```
Output
Syntax OK
```

Restart the server for changes to take affect:
```
sudo systemctl restart apache2
```

In case of using a firewall add an exception for apache:
```
sudo ufw allow in "Apache Full"
```

#### Install MySQL
Install MySQL as follows. Go through the installation, you will be asked to set a root user password. The default settings are oke.:

```
sudo apt update
sudo apt install mysql-server
```

Optional but good practice. Go through the each option and select your preference:
```
sudo mysql_secure_installation
```


#### Install PHPMyAdmin

Install as follows, be sure to select apache2 by pressing space:
```
sudo apt-get update
sudo apt-get install phpmyadmin php-mbstring php-gettext
```

Enable the mcrypt and mbstring extensions:

```
sudo phpenmod mcrypt
sudo phpenmod mbstring
```

Restart apache:
```
sudo systemctl restart apache2
```

You can check if its working by go to the following url:
```
http://<server_ip_adress>/phpmyadmin
```

#### Install mysql for python
Install the Python and MySQL development headers and libraries:

```
sudo apt-get install python-dev libmysqlclient-dev

```

For python3:
```
sudo apt-get install python3-dev
```

Install mysql for python:
```
pip install mysqlclient
```

#### Configure the database
With everything installed the database can be set up. A new user `test` will be made and a database called `steem` will be created in which a table `transfer` will be made. This table will have columns for `block`, `index`, `timestamp`, `to`, `from`, `amount` and `memo`. The settings below are compatible with the provide code, however tweaking and adjusting for your own preferences is advised.

Login as the root user:
```
mysql -u root -p
```

Create a test account, this account is used in the code:
```
GRANT ALL PRIVILEGES ON *.* TO 'test'@'localhost' IDENTIFIED BY 'Test!234#';
```
Create a new database called `steem`:
```
CREATE DATABASE steem;
```
Create a table `tranfers` which will be used to store the transfers:
```
CREATE TABLE `steem`.`transfers` ( `id` INT NOT NULL AUTO_INCREMENT , `block` INT NOT NULL , `index` INT NOT NULL , `timestamp` TIMESTAMP NOT NULL , `to` TEXT NOT NULL , `from` TEXT NOT NULL , `amount` TEXT NOT NULL , `memo` TEXT NOT NULL , PRIMARY KEY (`id`)) ENGINE = InnoDB;
```
Set the character set of this table to work together with emojis:
```
ALTER TABLE transfers CONVERT TO CHARACTER SET utf8mb4 COLLATE utf8mb4_bin
```
Exit mysql:
```
\q
```

#### Adding transfers to the database

All transactions in each block are checked to be of the type `transfer`, if so they are processed to be stored into the database.
```
for transaction in block['transactions']:
    if transaction['operations'][0][0] == self.tag:
        self.process_transaction(index,
                                 block,
                                 transaction['operations']
                                 [0][1])
```

All the data wanted for storage is retrieved from the block and transaction and inserted into the database.
```
def process_transaction(self, index, block, operation):
    date = block['timestamp']
    to = operation['to']
    user = operation['from']
    amount = operation['amount']
    memo = operation['memo']

    db.insert_selection(self.block, index, date, to, user, amount, memo)
```

The query specifies the `table` to use and which `variables` will be stored.
```
def insert_selection(block, index, timestamp, to, user, amount, memo):

    query = "INSERT INTO `transfers` (`block`, `index`, `timestamp`,`to`, `from`, `amount`, `memo`)" \
            " VALUES ('{}', '{}', '{}', '{}', '{}', '{}', '{}');".format(block, index, timestamp, to, user, amount, memo)
```

This part is where user credentials are set and the database itself. `localhost` refers to storing the data locally.

```
    try:
        db = MySQLdb.connect(host="localhost",
                             user="test",
                             passwd="Test!234#",
                             db="steem")
```
Since `STEEM` allows for emojis to be used it is important to set everything to `utf8mb4`.
```
        db.set_character_set('utf8mb4')

        cur = db.cursor()
        cur.execute('SET NAMES utf8mb4;')
        cur.execute('SET CHARACTER SET utf8mb4;')
        cur.execute('SET character_set_connection=utf8mb4;')
        cur.execute(query)

        db.commit()

    except Exception as e:
        print('Error:', e)

    finally:
        cur.close()
        db.close()

```

#### Running the script
In case LC_ALL is not set:
```
export LC_ALL="en_US.UTF-8"
```

With everything set up all is left is running the code. Doing so will start retrieving the `blocks` and look for `transfers` in each `block`. Each `transfer` is then stored in the local `database`.

```
python get_blocks.py 23892389 100
Booted
Connected to: https://api.steemit.com

Block:  23892389

Block:  23892390

Block:  23892391

Block:  23892392

.
.
.
.
Block:  23892488

```

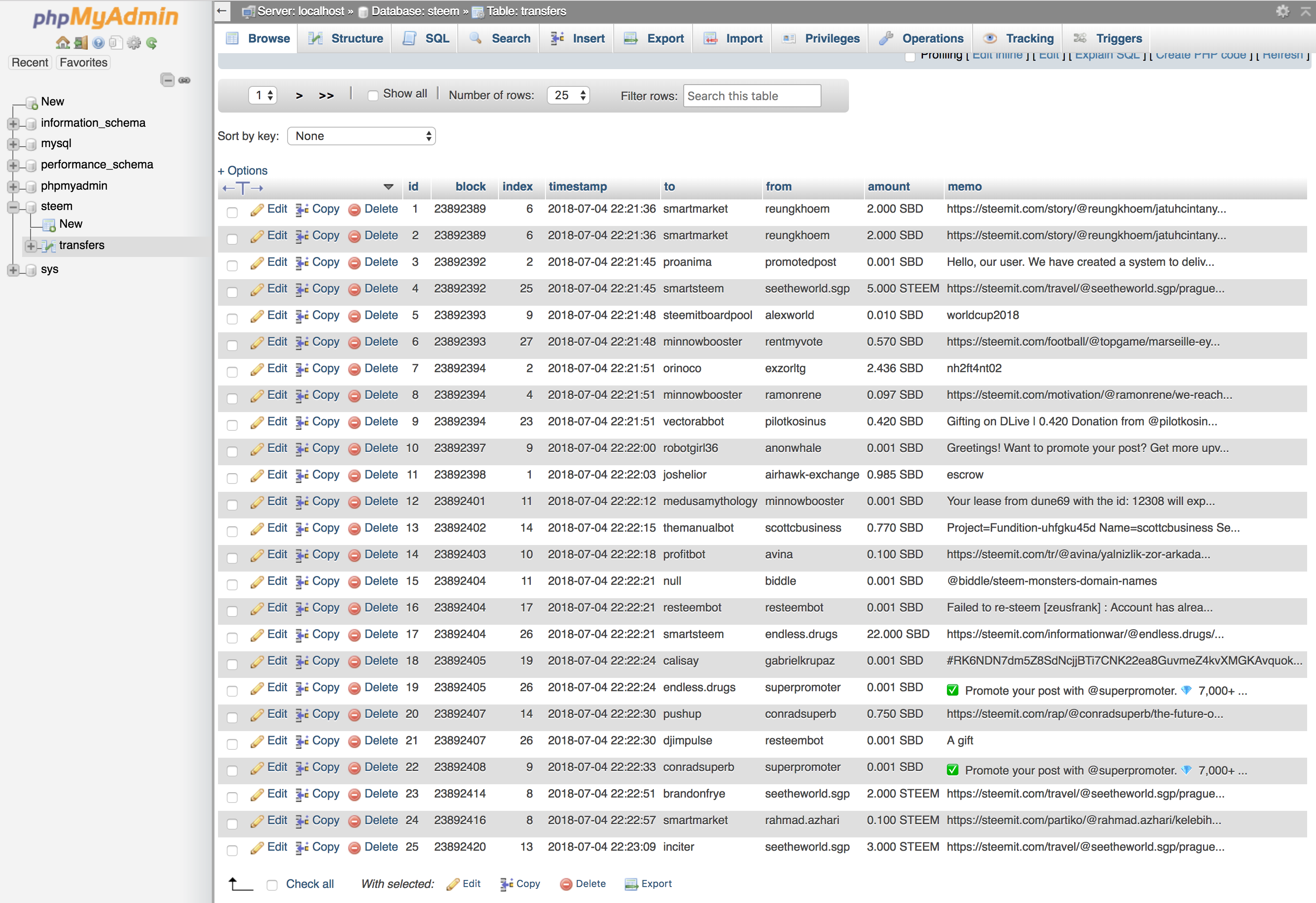

Now head to `http://<server_ip_adress>/phpmyadmin` and it should look something like this:

![Screenshot 2018-07-05 02.21.30.png](https://cdn.steemitimages.com/DQmX46eaUjaz4L7JRuWaHQq6gRGbnaBNSnzdUKrJcJT1j7P/Screenshot%202018-07-05%2002.21.30.png)
