[Tutorial] Packaging and deploying(Part 3)
![images.png](https://cdn.steemitimages.com/DQmYqni9vxME8D1tzy4wZGgu8CT8zK2Goq5cwDaQia7Zg7J/images.png)
[image source](https://goo.gl/images/HbqzGY)
**Repository**: [Python, Open Source Repository](https://github.com/python)

**Software**: For software download python 3.0 compatible with your OS [here](https://www.python.org/downloads/)

**Difficulty** : Basic
**What you will learn**:
In this tutorial you will learn how to
-  Using the ``pyinstaller``

- How to change our file to ``.exe``  system readable format.

- Enable our program to run on startup

**For my previous posts in the python tutorial series**
-[Click Here* Creating a simple calculator using python 3.8(cpython)](https://steemit.com/utopian-io/@yalzeee/tutorial-developing-a-simple-calculator-with-basic-command-with-python-fix-bugs-in-your-code)

**Creating an encryption key(Cryptography)**
-[ Part 1](https://steemit.com/utopian-io/@yalzeee/tutorial-creating-a-visual-cube-encryption-key-using-python-3-0-part-1)
-[ Part 2](https://steemit.com/utopian-io/@yalzeee/tutorial-creating-a-visual-encryption-key-in-python-3-6-part-2)
-[ Part 3](https://steemit.com/utopian-io/@yalzeee/tutorial-creating-an-visual-cube-encryption-program-with-python-3-6-part-3)
-[ Part 4](https://steemit.com/utopian-io/@yalzeee/tutorial-creating-an-encryption-program-with-python-3-6-part-4)

**Developing an institutions data collection backend and frontend with python 3.6 series**
[Part 1 of this series](https://steemit.com/utopian-io/@yalzeee/tutorial-development-of-an-institutions-data-collection-backend-using-python-3-6-part-1)
[Part 2 of this series](https://steemit.com/utopian-io/@yalzeee/tutorial-development-of-an-institutions-data-collection-back-end-using-python-3-6-part-2)
[Part 3 of this series](https://steemit.com/utopian-io/@yalzeee/tutorial-development-of-an-institutions-data-collection-back-end-with-python-3-part-3)
[Part 4 of this series](https://steemit.com/utopian-io/@yalzeee/tutorial-developing-an-institutions-data-collection-web-front-end-with-python-3-6-part-4)
[Part 5 of this series](https://steemit.com/utopian-io/@yalzeee/tutorial-developing-an-institutions-data-collection-web-front-end-with-python-3-6-part-5)
[Part 6 of this series](https://steemit.com/utopian-io/@yalzeee/tutorial-developing-and-institutions-data-collection-web-front-end-and-back-end-with-python3-6-final-part6)

**Earlier on this series**
[Automating OnScreen Processes](https://steemit.com/utopian-io/@yalzeee/tutorial-navigation-and-system-interaction-automating-system-processes-in-python-development)
[Screen Mapping and Navigation](https://steemit.com/utopian-io/@yalzeee/tutorial-image-recognition-and-screen-mapping-in-python-developments-part-2)

**Tutorial**
In the last of this series we developed a steemit feed bot that can locate your browser, load your steemit feed and explore this feed for you. Although our code works perfectly we havent yet created a user interface and our code is still in py format which cannot be executed outside our python editor. This tutorial would be covering that.
First things first we need to install a new module within our ``cmd`` console.

**Modules**
Navigate to your python folder and run these lines of code to install ``pyinstaller``;
```
pip install pyinstaller
```
**Note**
``pip`` is already installed in all versions of python from >3.4

**Py Installer**
Py installer is a packaging file that would help us change our program to a exe which is the normal readable format for windows files. After we install this module, we have to find a suitable icon for our program.

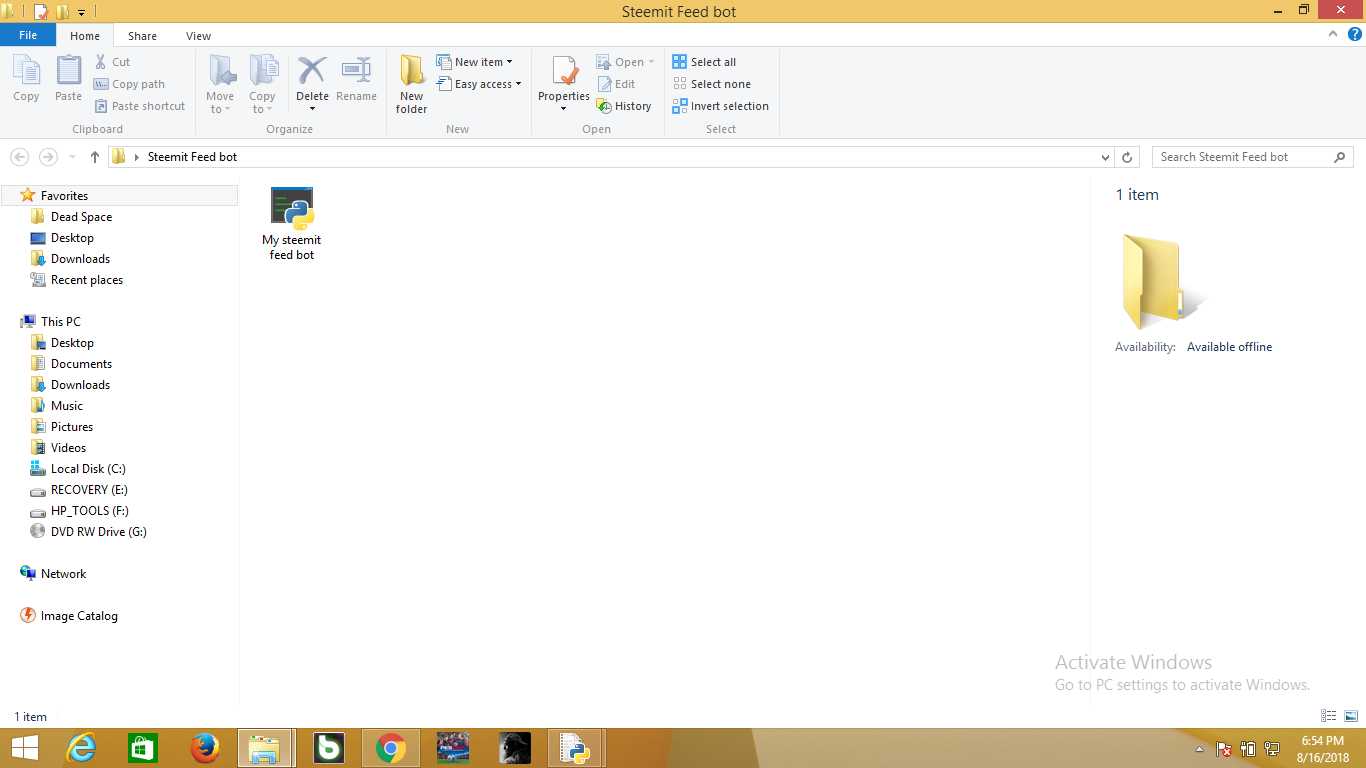

**Note**: This icon must be in ``.ico`` format to be able to be read and should be in the same folder with our python code.
![Screenshot (21).png](https://cdn.steemitimages.com/DQmS4qufSCZuLzqsEAJLi2rzWTyyDJNHtLEj5GYE5KstgZK/Screenshot%20(21).png)
Use ``shift + right click`` to open your command prompt module within this folder
```
#Use this code to compile your file to exe in your command prompt module
pyinstaller -w -F  "my steemit feed bot"
```
To add the icon use while in the same directory
```
pyinstaller -i "my steemit feed bot"
```
**Deploying**
The next thing we have to do is to deploy our application whenever we start up our system.
To do this create a shortcut for our ``exe`` executable file then navigate to your local disk and look for this directory which is available by default in windows.
The file path should be
```
C:/ ProgramData/Microsoft/Windows/StartMenu/Programs
```
Navigate to this folder and place the shortcut at this location for it to startup whenever the system comes on.

**Common Bugs and Fixes**
A common bug in systems with smaller RAMs or slower processors is that the desktop may not have fully loaded when your program begins to run and hence because it works with image recognition would not log the coordinates of your browser. To fix this
```
import pyautogui
import time

time.sleep(120)
def openchrome():
    chromeIcon = pyautogui.locateCenterOnScreen('C:/Users/ZEOY/Pictures/Screenshots/python/chromeIcon.png')
    print(chromeIcon)
    pyautogui.doubleClick(chromeIcon)
    time.sleep(3.0)
def maximizetab():
    maximizebutton = pyautogui.locateCenterOnScreen('C:/Users/ZEOY/Pictures/Screenshots/python/maximize.png')
    print(maximizebutton)
    pyautogui.click(maximizebutton)
    time.sleep(4)
```
Simply use the sleep function to make the program give the system time to boot.

**Please feel free to share any other bot encountered when trying to run this program on your system**

You can find my Code in [Github](https://github.com/yalzeee/Python-tutorial-series/blob/master/my%20steemit%20feed%20bot)
