Upgrading My CPU Cooler Part 2- Bought It And Installation
Well, I sort of dove right in and bought a AIO and installed it. I ended up getting the Corsair H110i RGB White because it was white and it fit with my build.

Installation of this was quite possibly the hardest thing I had to do with the entire PC build process. It took a lot longer than I thought it would and it had a lot more problems than anything else.


<center>![IMG_2678.JPG](https://files.peakd.com/file/peakd-hive/rishi556/J1tLV1OE-IMG_2678.JPG)
<sub>Ignore the mess of cables</sub></center>

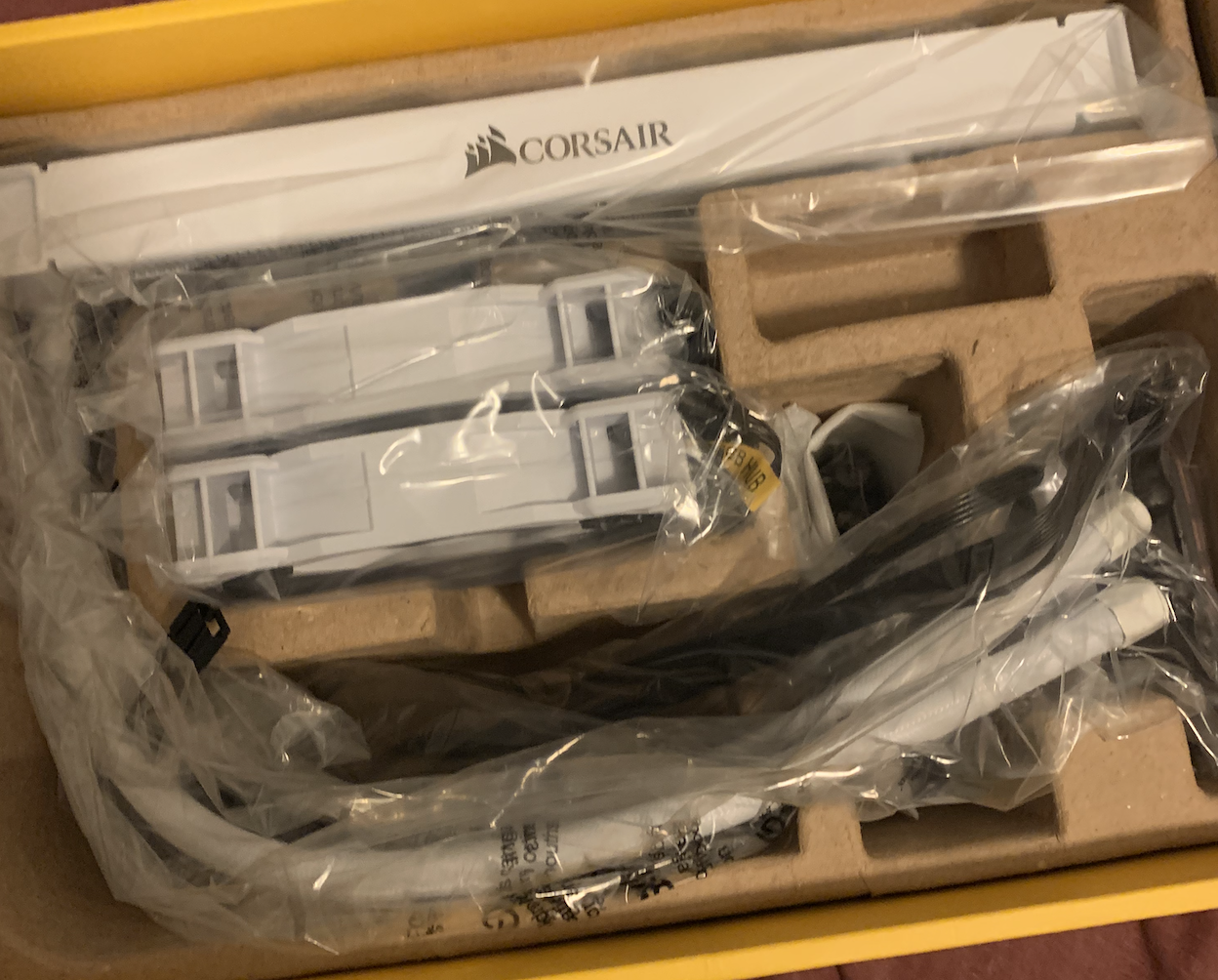

Opening it up, it looked very nice especially with the white fans and radiator.

![Screen Shot 20201201 at 2.19.12 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/88ePbY4K-Screen20Shot202020-12-0120at202.19.1220PM.png)

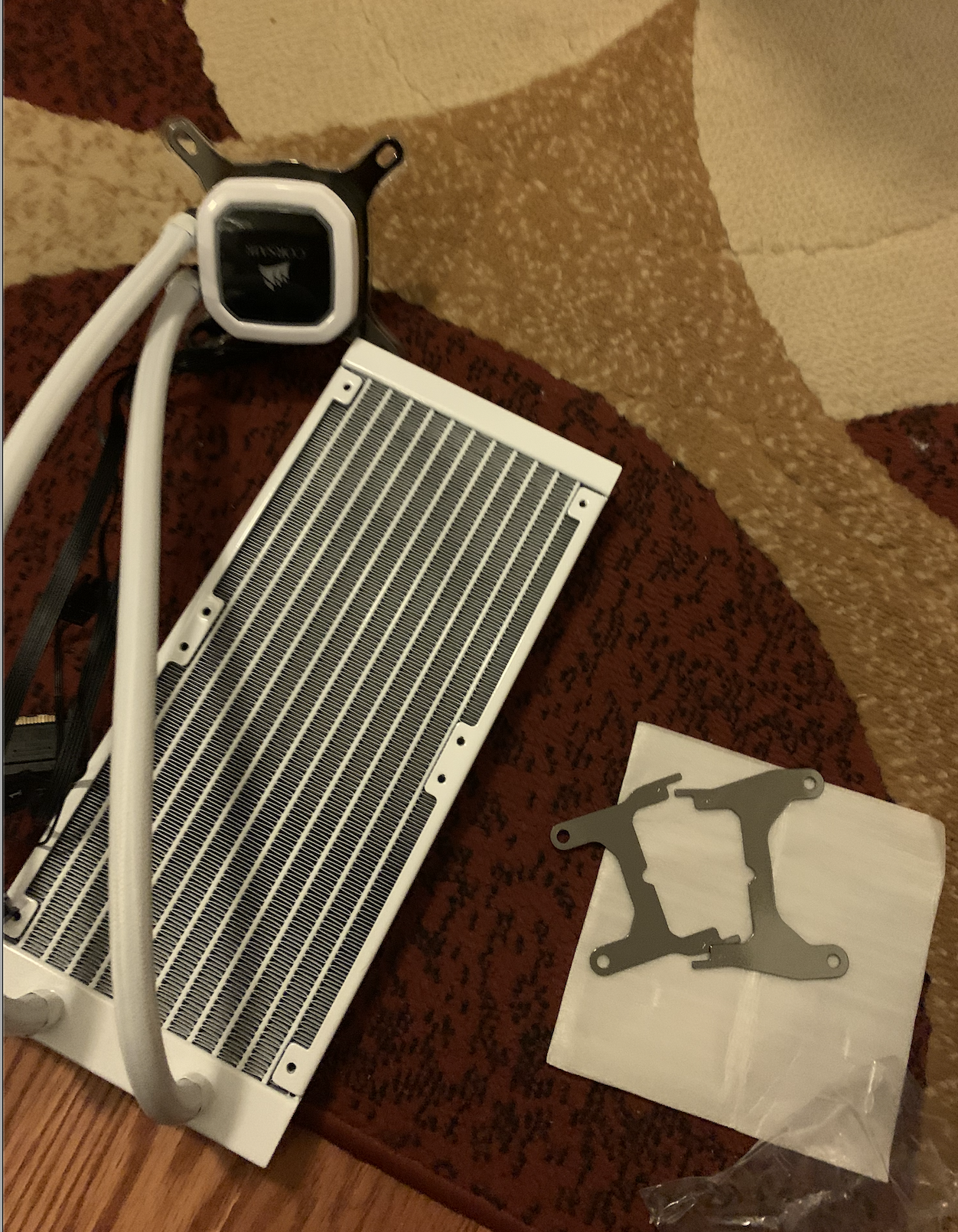

It was pre setup for Intel sockets and I had to swap it out for the AMD ones. I initially put on the wrong AMD one(I and had to remove it and put it back on, luckily it was just an easy pull).


![Screen Shot 20201201 at 2.19.59 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/a0TJvp5P-Screen20Shot202020-12-0120at202.19.5920PM.png)

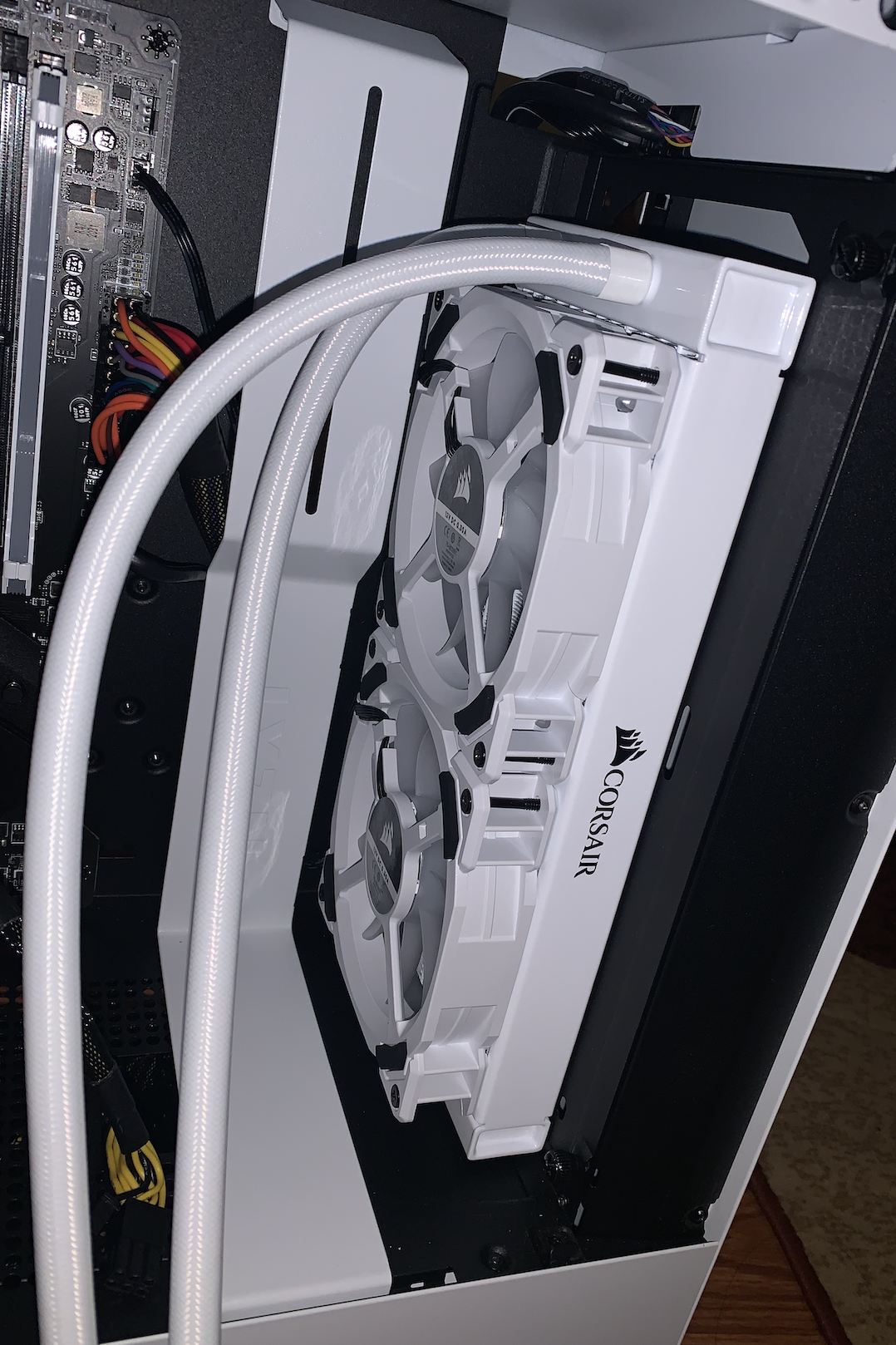

After that was the installation of the fans onto the radiator. The fans are very nice looking Corsair LL 120mm fans, the white ones which sell for $40 each. After that I had to install the would thing onto the case. Luckily with my NZXT case, I had a piece I could remove out of the case to install the radiator onto it and it made it a lot easier.


![Screen Shot 20201201 at 2.24.10 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/c8aM5n0l-Screen20Shot202020-12-0120at202.24.1020PM.png)

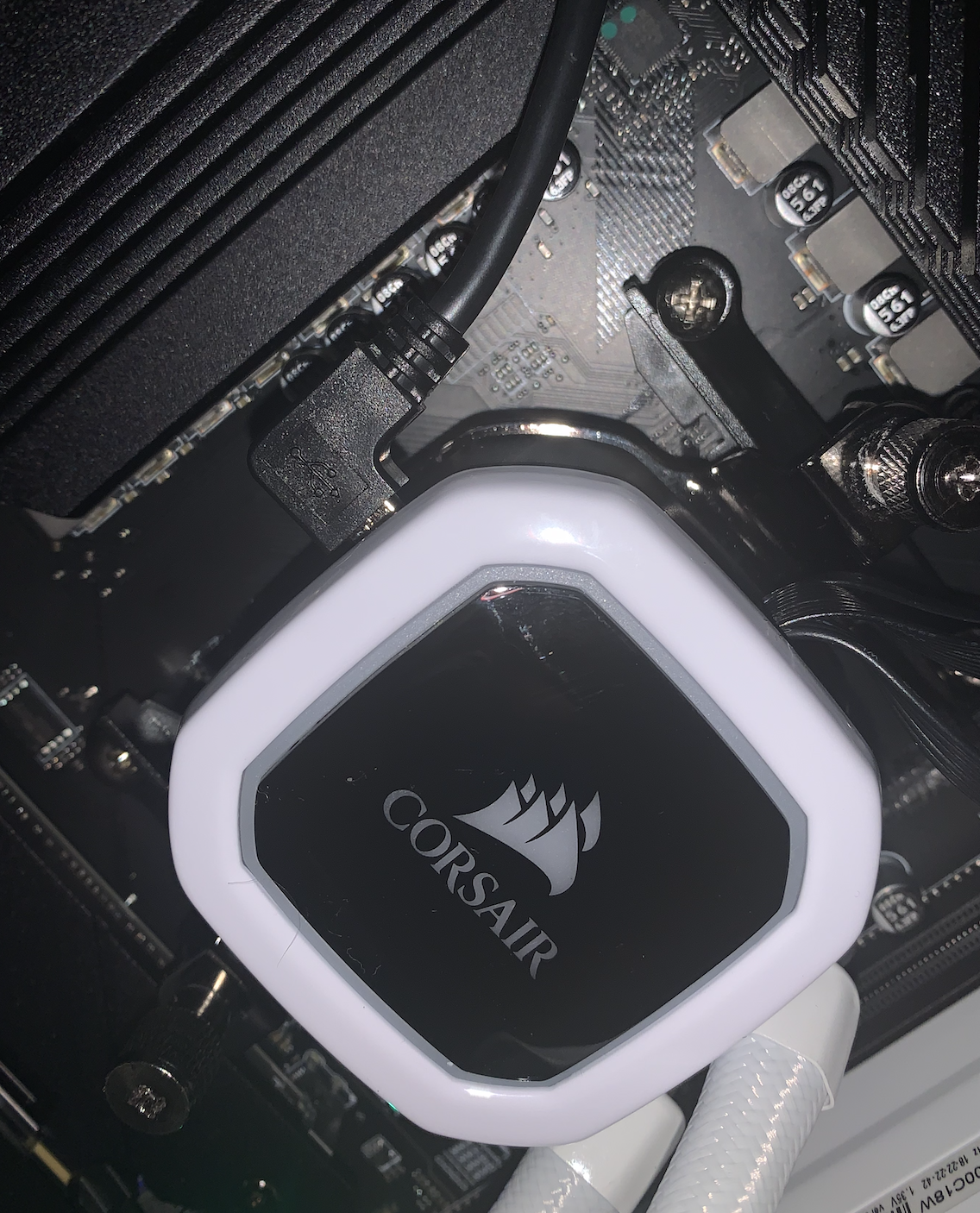

After that I had to install the block onto the CPU. That took quite a while as I got confused on how to do it. At the end I figured it out and installed it. No thermal paste needed as it had pre included thermal paste.

After that it was just a bunch of cables that I had to plug in. The cables from the fan connected to the pump which connected to a sata power cable and one to a usb header on the mother board.


![Screen Shot 20201201 at 2.25.15 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/rRtTCj32-Screen20Shot202020-12-0120at202.25.1520PM.png)


And I thought I was done, but the first problem popped up, I couldn't get the RGB light on the pump to light up. I was wondering what I was doing wrong and after some googling I realized that my power supply had a 4 pin sata and it needed a 5 pin sata cable to light that up. Cheapening out on my power supply caused this problem as most people said that most new power supplies should have a 5 pin sata cable on the corsair discord channel where I went to ask to see if I could buy an adapter to get this working(spoiler alert: I can't unless I build my own).

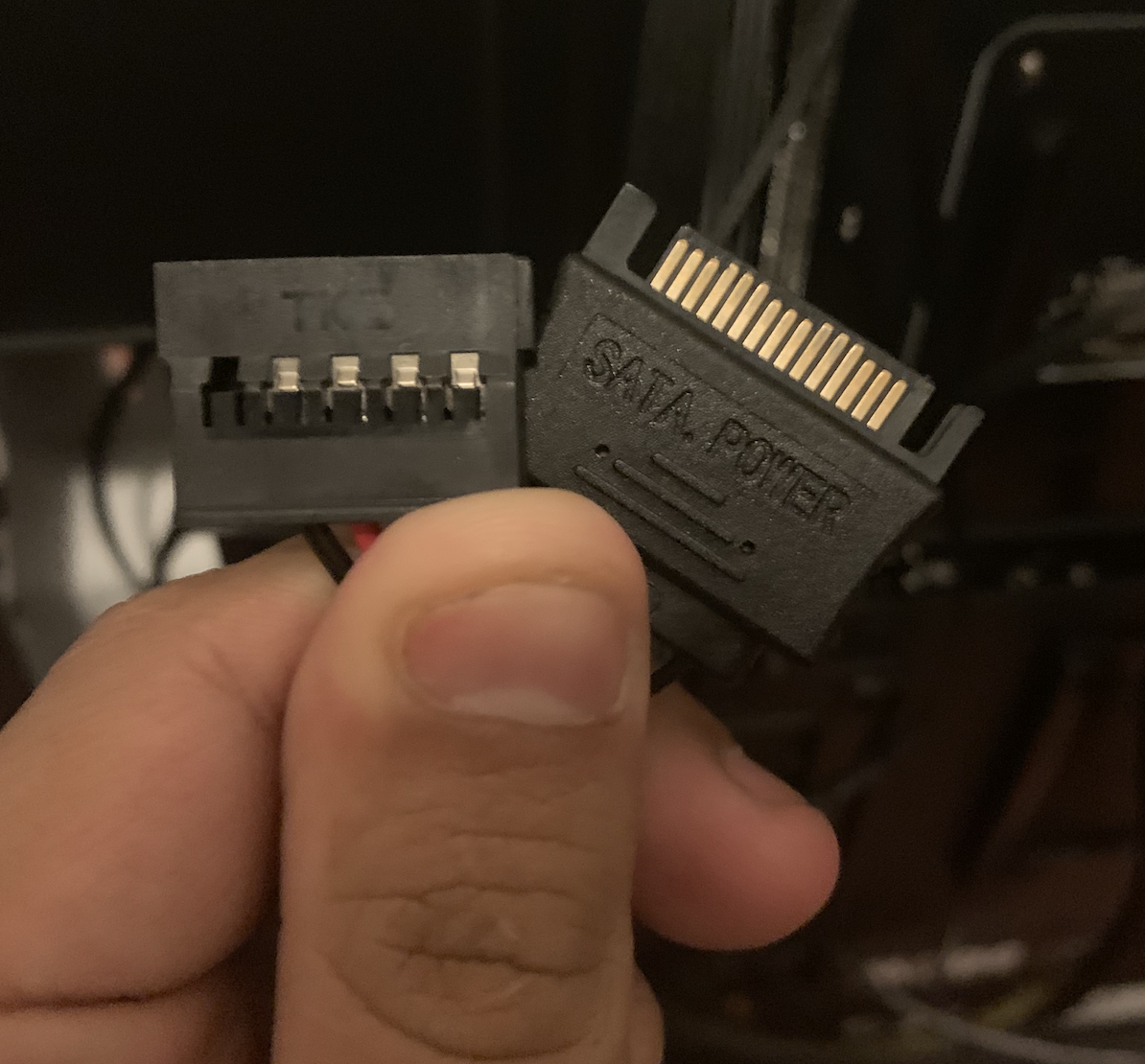

<center>![Screen Shot 20201201 at 2.28.37 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/TKV9IN3j-Screen20Shot202020-12-0120at202.28.3720PM.png)
<sub>Notice how on the left there's only 4 gold pins, I need 5 of them to activate the RGB on the pump block</sub></center>

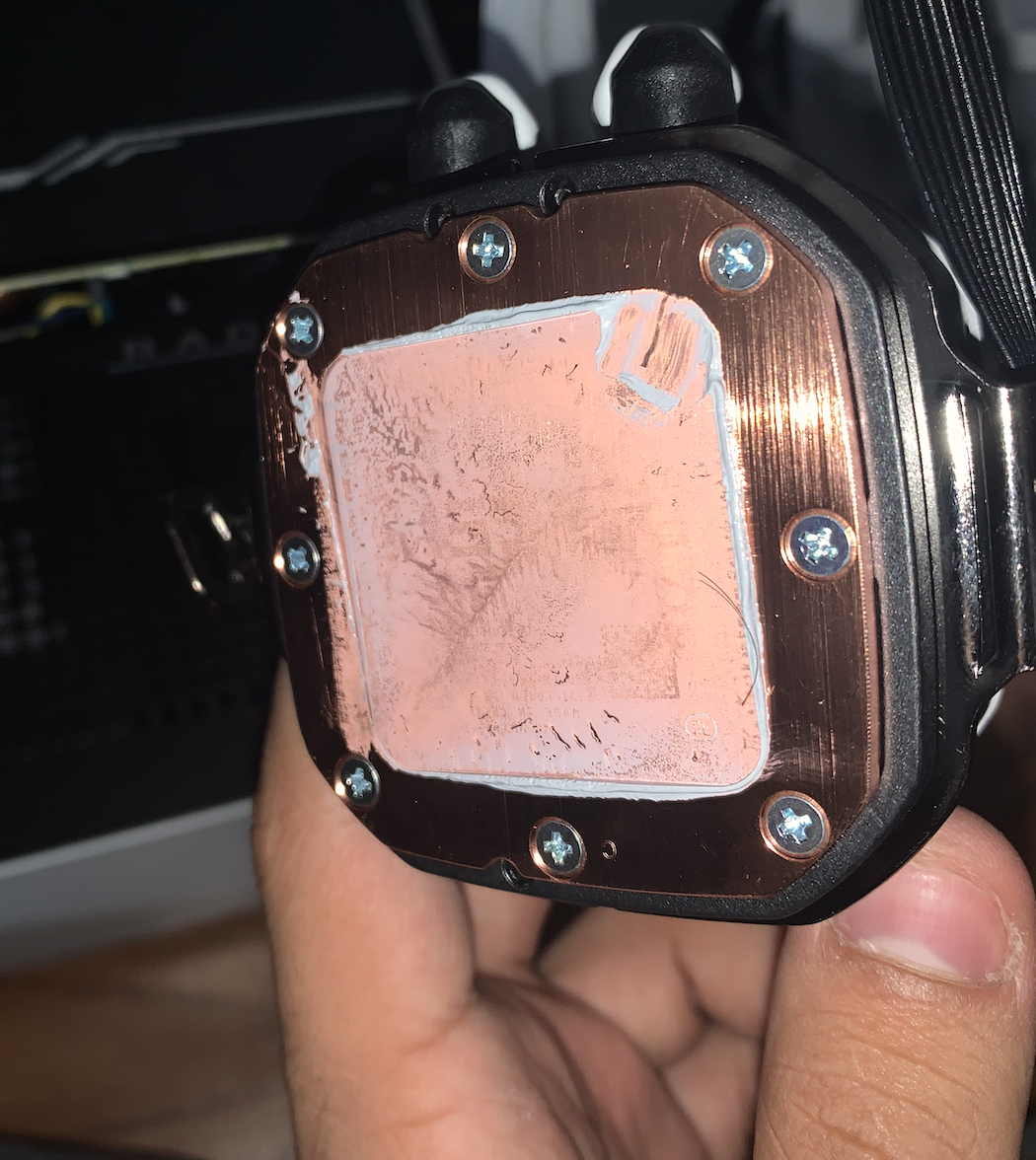

Then when running the PC, I realized my CPU was running really hot, reaching up to 60 C when not doing anything at all. With the help with the fantastic @kyle I realized that I might have gotten some dried out thermal paste on the block. I opened it up and look at that, there was like no thermal paste on it at all.


![Screen Shot 20201201 at 2.31.28 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/cQRelVMw-Screen20Shot202020-12-0120at202.31.2820PM.png)

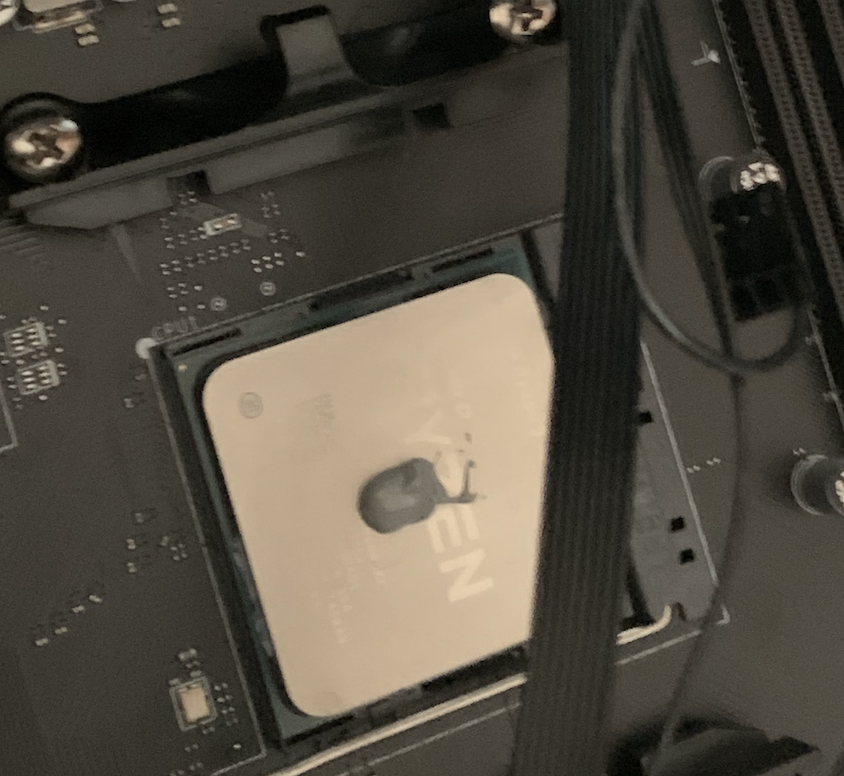

I don't have an image of what the CPU looked like during that time, but trust me, there was nothing on that either. So I went to best buy and bought some Corsair thermal paste(it was the only one they had) and applied that and reinstalled the pump block.

![Screen Shot 20201201 at 2.32.38 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/0XfUTIgr-Screen20Shot202020-12-0120at202.32.3820PM.png)

And that did it(and changing the power settings to balanced instead of Ultra). I had great thermal performance, idling around 30 C and going up to about 60 C with workload on it. Plus best of all, it's near silent. Only way I can hear the pump is when I have it set to extreme mode, which I never do.


![Screen Shot 20201201 at 2.34.11 PM.png](https://files.peakd.com/file/peakd-hive/rishi556/VQHWd9dN-Screen20Shot202020-12-0120at202.34.1120PM.png)

@scrooger told me I should undervolt my CPU if I wanted to get even better thermal performance and I plan on taking a look at that today or tomorrow depending on when I finish putting up the christmas lights. The initial installation took me about an hour and a half and then I spent about another 2 hours of troubleshooting and finally another 45ish minutes to reinstall the pump block with the new thermal paste. This was quite a bit longer than how long the initial build took.
